Diameter: 12-22mm

Material: Aluminium alloy, Magnesium alloy

Product Detail | Technical Information | Packaging

Product Detail

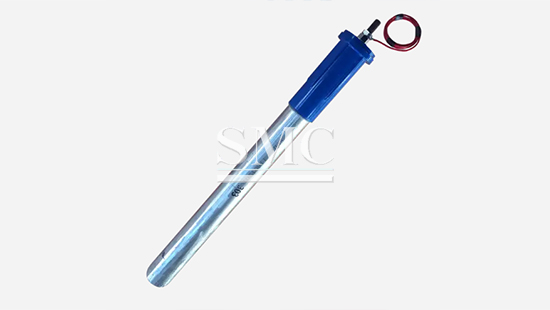

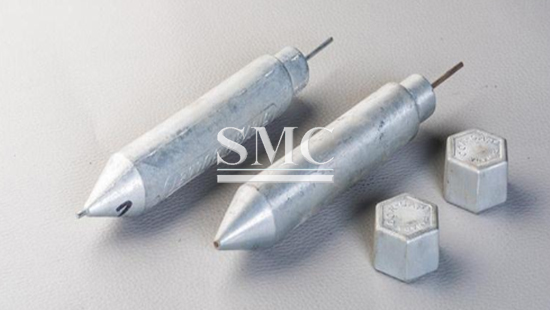

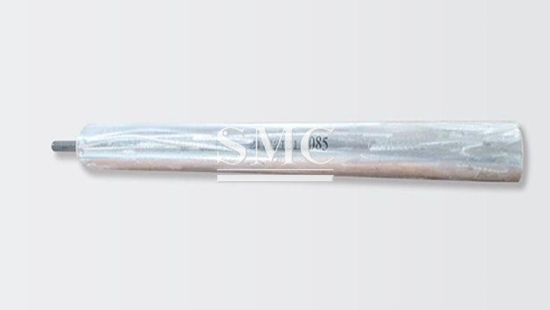

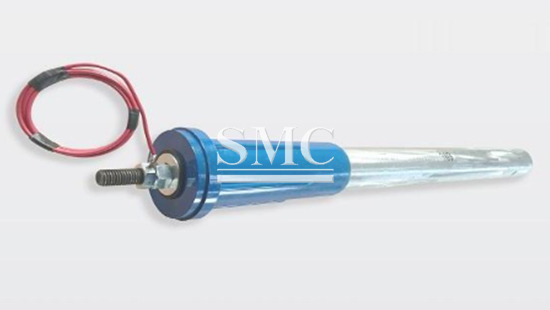

Shanghai Metal Corporation is a professional manufacturer and supplier of Rigid Anode Rod for Water Heater with high quality and reasonable price.

Hot water heater anode rods are usually made of aluminum, magnesium, or zinc, and they are called "sacrificial rods." Sacrificial anodes for water heaters are installed to protect the tank from corrosion. The anode sacrifices its metal content to protect the water heater from corrosion and leakage.

This prolongs the service life of water heaters and tanks. The rod-like aluminum anode is mainly used in the steel structure of steel containers, water heaters and water pipelines. The rod-like anode is the most widely used in the corrosion protection of water heaters, and is usually suitable for drinking water systems below 85 ° C.

If you want to know more about Rigid Anode Rod for Water Heater price please feel free to contact us, we will reply you within 24 hours

Material:Aluminium alloy, Magnesium alloy
Diameter: 12-22mm
Core: 3.4mm
Length: 800-1300mm
Nuts: 1/2 ", 3/4"
Rod diameter, length and nuts can be customized.

1. Tank water heater
2. Instant water heater
3. Hybrid water heater
4. Steel structure of water pipeline
5. Steel vessel

1. Highway center divider
2. Industrial field
3. Traffic system
4. Coal mine conveyor
5. Telescopic belt conveyor along the trough

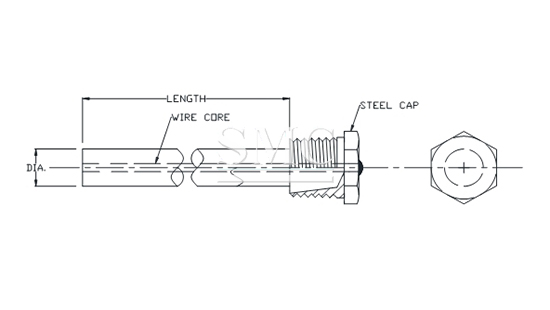

Technical Information of Rigid Anode Rod for Water Heater:

Magnesium extrusion rod specifications
type	Diameter (mm)	Iron core (mm)	Length (mm)	Nut	Weight (kg)
YX6240Y-11	12.7	3.4	864	1/2" NPT	0.29
YX6240BC	12.7	3.4	762	1/2" NPT	0.26
YX6240BD	12.7	3.4	1270	1/2" NPT	0.4
YX6241BH	12.7	3.4	610	1/2" NPT	0.22
YX6241BK	12.7	3.4	391	1/2" NPT	0.15
YX15894A	21.3	3.4	534	3/4" NPT	0.36
YX15894B	21.3	3.4	636	3/4" NPT	0.43
YX15894C	21.3	3.4	737	3/4" NPT	0.5
YX15894D	21.3	3.4	1042	3/4" NPT	0.7
YX15894E	21.3	3.4	1144	3/4" NPT	0.77
YX12702B	22.9	3.4	818	3/4" NPT	0.67
YX12702C	22.9	3.4	868	3/4" NPT	0.7
YX12702D	22.9	3.4	1072	3/4" NPT	0.86
YX12702E	22.9	3.4	1300	3/4" NPT	1.03

Aluminum extrusion rod specifications
type	Diameter(mm)	Iron core (mm)	Length(mm)	Nut	Weight(kg)
YX12938	15.9	3.4	1060	1/2" NPT	0.62
YX9004	19.1	3.4	1067	3/4" NPT	0.93
YX-AM2NE2A	20	3.4	540	3/4" NPT	0.53
YX-AM2NE3A	20	3.4	765	3/4" NPT	0.73
YX-AM2NE4A	20	3.4	950	3/4" NPT	0.9
YX-AM2NE5A	20	3.4	1120	3/4" NPT	1.05
YX-49560-01A	21.3	3.4	241	3/4" NPT	0.29
YX-49560-02A	21.3	3.4	584	3/4" NPT	0.64
YX-49560-03A	21.3	3.4	889	3/4" NPT	0.95
YX-49560-04A	21.3	3.4	1105	3/4" NPT	1.17

electrochemical performance
Alloy	open circuit potential(-V)	closed circuit potential(-V)	current capacity(A.h/kg)	current efficiency(%)
AZ31B	1.50-1.55 Relative to SCE	1.45-1.50 Relative to SCE	1230	55
Mg-Mn	1.70-1.75 Relative toSCE	1.58-1.62 Relative to SCE	1100	50
aluminium alloy	1.10-1.18 Relative to CSE	1.05-1.12 Relative to CSE	2400	85

chemical component
Alloy	Al	Mn	Zn	Si	Cu	Ni	Fe	Sn	Impurity (single)	Impurities (total)	Margin
AZ31B	2.50-3.50%	0.20-1.00%	0.60-1.40%	≤0.10%	≤0.01%	≤0.001%	≤0.005%	--	--	≤0.30%	Mg
Mg-Mn	≤0.01%	0.50-1.30%	--	--	≤0.02%	≤0.001%	≤0.03%	--	≤0.05%	≤0.30%	Mg
aluminium alloy		--	4.0-5.0%	≤0.25%	--	--

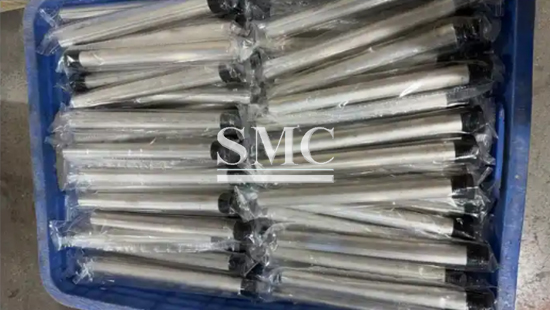

Packaging of Rigid Anode Rod for Water Heater:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
