Standard: ASTM A738/738M

Steel grade: SA738 Gr.A, SA738 Gr.B, SA738 Gr.C, SA738 Gr.D

Thickness: 8mm - 125mm

Product Detail | Technical Information | Packaging

Product Detail

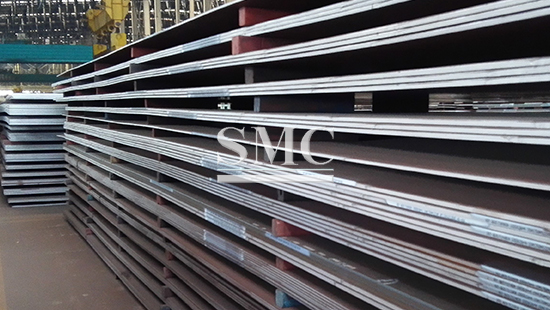

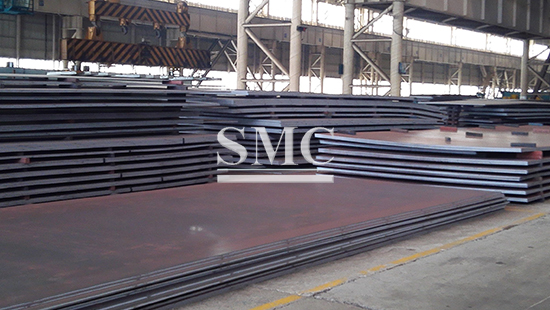

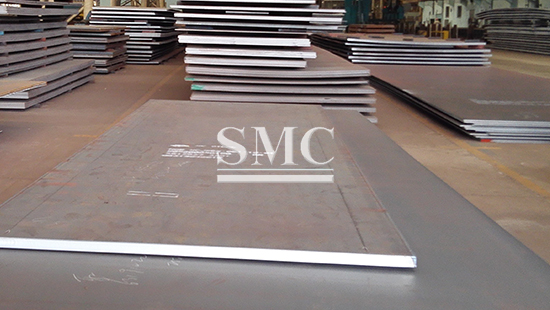

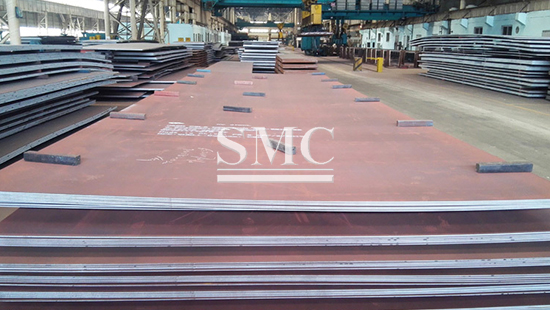

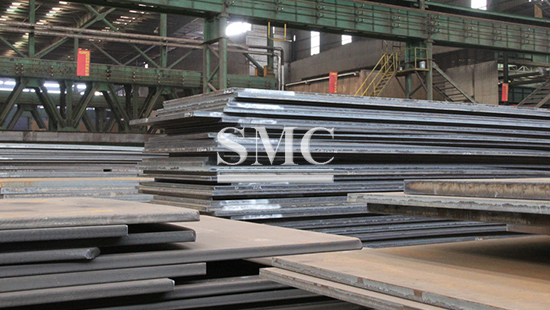

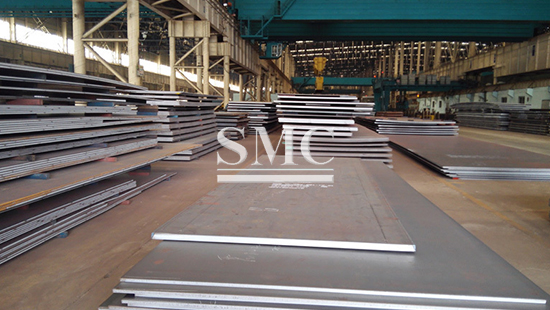

Shanghai Metal Corporation is a professional manufacturer and supplier of SA 738 Gr.B Nuclear Power Plate with high quality and reasonable price.

SA738GrB steel plate is a high-performance steel plate for nuclear power, especially suitable for medium and low temperature pressure vessels. It is widely used in industries such as nuclear power, petroleum, chemical, and power due to its high strength, toughness, corrosion resistance, radiation resistance, wear resistance, weather resistance, impact resistance, and low temperature resistance. Specifically, it is mainly used for conventional and nuclear islands in nuclear power plants, as well as their ancillary facilities, such as Guangdong Daya Bay Nuclear Power Station, Ling'ao Nuclear Power Station, etc.

If you want to know more about SA 738 Gr.B Nuclear Power Plate price please feel free to contact us, we will reply you within 24 hours

Delivery status: normalized, quenched and tempered

V-Notch: at -45℃ in horizontal direction

Ultrasonic test: ASTM A20/20M

Width: 1.6m - 4.02mm

Length: 6m - 17.5m

Good impact toughness

Suitable for low temperature environment

Superior mechanical performance

High strength and anti-corrosion property

1. Steam generator: Used in nuclear power plants to generate steam by heating the coolant in the nuclear reactor, which in turn drives the steam turbine to generate electricity.

2. Safety shell: Used in nuclear power plants as an important barrier to prevent the leakage of radioactive materials into the environment.

3. Pipeline system: Manufacturing of pipelines used for transporting coolant, steam, and other fluids in nuclear power plants.

4. Auxiliary equipment: Including pumps, valves, heat exchangers, and other auxiliary equipment in nuclear power plants.

Technical Information of SA 738 Gr.B Nuclear Power Plate:

Manufacturing Technology

1. Steelmaking: Electric furnace or converter steelmaking is used to melt raw materials such as iron ore and scrap steel into molten steel.

2. Rolling: Pour the refined steel into a rolling mill and roll the steel billet into the desired thickness and width through the rolling process.

3. Heat treatment: Heating and cooling treatment is applied to the rolled steel plate to obtain the required mechanical properties.

4. Surface treatment: Polishing, coating and other treatments are applied to the surface of steel plates to improve their corrosion resistance and service life.

ASTM A738/A738M Chemical Composition(%)
Elements	Grade A	Grade B	Grade C	Grade D	Grade E
C	≤0.24	≤0.20	≤0.20	≤0.10	≤0.12
Mn
T ≤ 40mm	≤1.5	0.90~1.50	≤1.5	1.00~1.60	1.10~1.60
40mm < T ≤50mm	≤1.5	0.90~1.50	≤1.5	...	...
50mm < T ≤65mm	≤1.5	0.90~1.50	≤1.5	...	...
>65mm	≤1.6	0.90~1.60	≤1.6	...	...
P	≤0.025	≤0.025	≤0.025	≤0.015	≤0.015
S	≤0.025	≤0.025	≤0.025	≤0.006	≤0.006
Si	0.15~0.50	0.15~0.55	0.15~0.50	0.15~0.50	0.15~0.50
Cu	≤0.35	≤0.35	≤0.35	≤0.35	≤0.35
Ni	≤0.50	≤0.60	≤0.50	≤0.60	≤0.70
Cr	≤0.25	≤0.30	≤0.25	≤0.25	≤0.30
Mo	≤0.08	≤0.20	≤0.08	≤0.30	≤0.35
V	≤0.07	≤0.07	≤0.05	≤0.08	≤0.09
Co	≤0.04	≤0.04	—	≤0.05	≤0.05

ASTM A203/A203M Mechanical Property
	Grade A	Grade B	Grade C	Grade D	Grade E
Tensile strength/Mpa
T ≤ 65mm	515~655	585~705	550~690	585~724	620~760
65<t≤ 100mm	515~655	585~705	515~655	not applicable	not applicable
T >100mm	515~655	585~705	485~620	not applicable	not applicable
Yield strength/Mpa
T ≤ 65mm	>310	>415	>415	>485	>515
65<t≤ 100mm	>310	>415	>380	not applicable	not applicable
T >100mm	>310	>415	>315	not applicable	not applicable
Elongation(L=50mm)%	>20	>20	>22	>20	>20

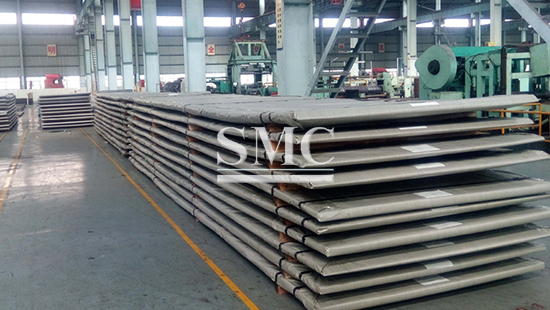

Packaging of SA 738 Gr.B Nuclear Power Plate:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
