Other Building Material

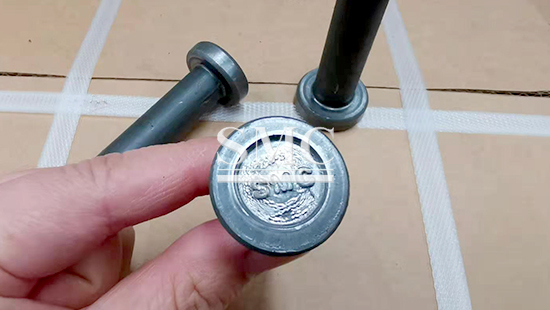

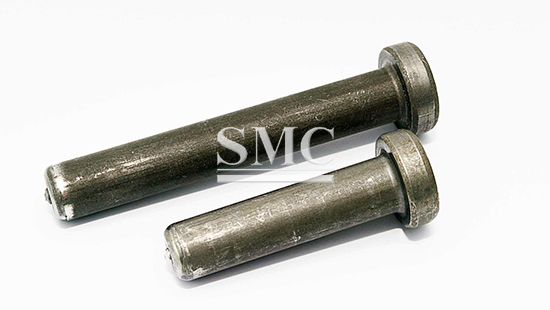

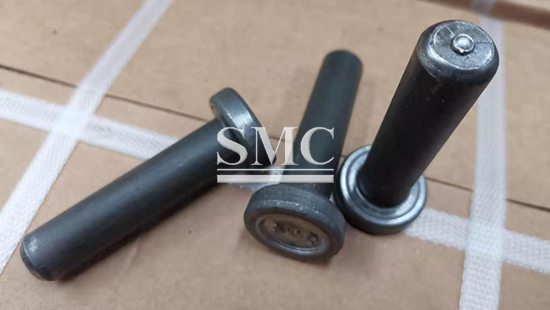

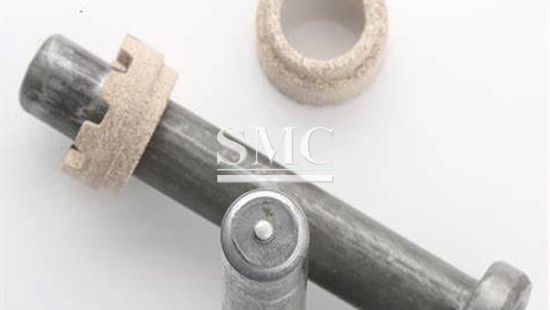

Shear Stud/ Stud Welding Rod/ Construction Shear Connector

    Standard: ISO 13918, GB/ T10433-2002, AWS D1.1, JIS B1198, BS5400


    Material: Low/ Mid Carbon Steel: SWRCH18A, SWRCH15A, ML15AL


    Surface treatment: None treated or phosphating

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Shear Stud/ Stud Welding Rod/ Construction Shear Connector with high quality and reasonable price.

SMC  can also supply a range of welding machines for Shear Studs, Insulation Pins and CD Studs. SMC have been supplying the shear stud to a lot of construction companies.Bangladesh, Brazil, Kuwait, etc.

If you want to know more about Shear Stud/ Stud Welding Rod/ Construction Shear Connector price, please feel free to contact us, we will reply you within 24 hours


Shear Connector are typically used in composite steel construction to tie the concrete slab to steel members and resist shear forces between the concrete slab and steel members.

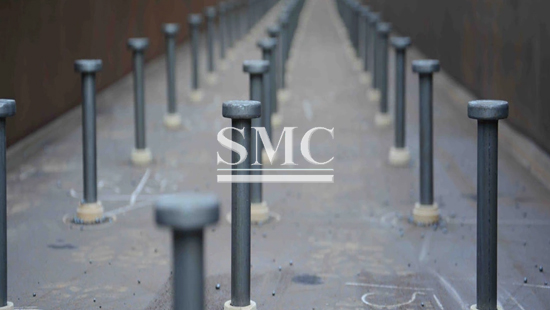

Shear studs are required to transfer force between the steel section and the concrete slab. The studs are welded to the beam, normally through the deck sheet. This enables the concrete slab to act like a large top flange to the composite beam when the concrete has hardened and creates a stronger section to support the loadings applied to the finished slab.
