Material: 304 / 316 stainless steel with epoxy coating

Working Temperature: ‑40℃ ~ +150℃

Tensile Strength: 450N‑2200N depends on width size

Coating Thickness: 0.15‑0.30mm epoxy layer

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading Stainless Steel Epoxy Coated Cable Tie manufacturer and supplier.

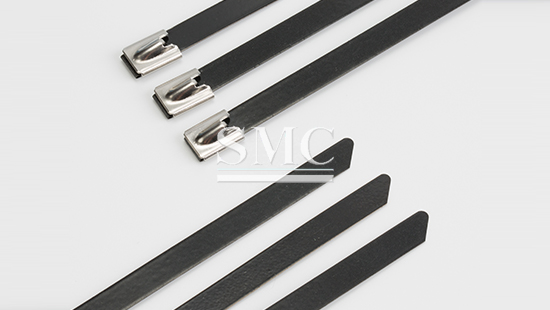

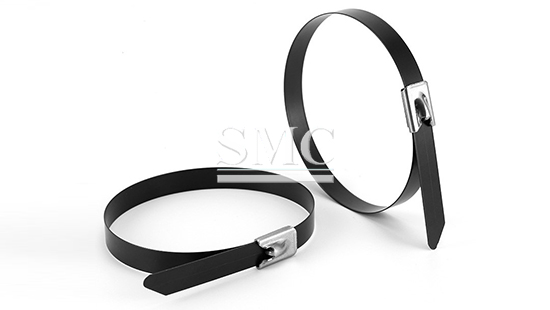

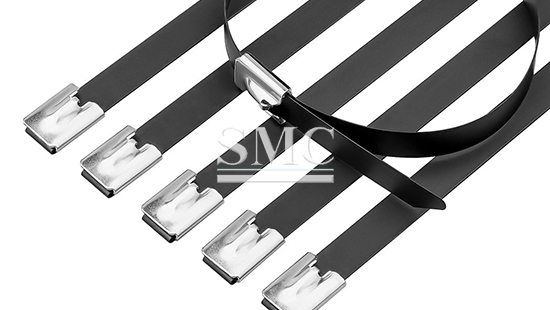

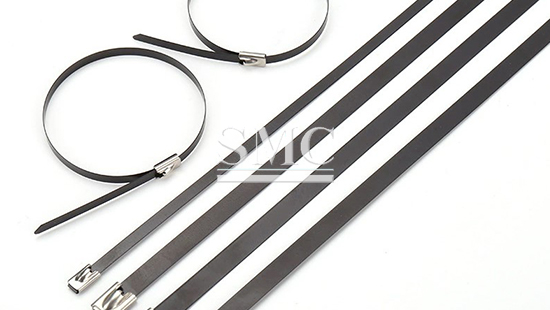

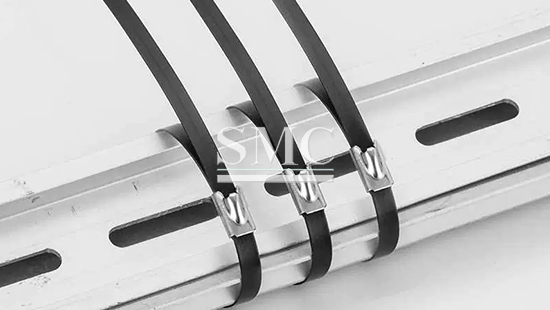

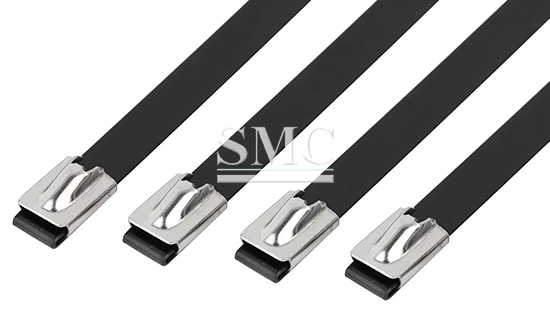

Stainless steel epoxy coated cable tie is a metal fastener used for bundling and fixing cables, pipes and hoses. Its base substrate is 304 or 316 stainless steel, covered with a continuous epoxy protective layer over the surface. The metal core provides high tensile strength for heavy‑duty bundling, while the outer epoxy coating insulates the surface, prevents scratching contact objects, and blocks salt spray and moisture corrosion. This product solves two common issues of bare metal cable ties: direct metal‑to‑component scratching and accelerated rust in coastal, chemical or outdoor humid environments. It holds bundled items firmly under vibration, and will not crack easily within rated working temperature range. Users can select different width and length dimensions to match light‑duty or heavy‑duty bundling workloads.

If you want to know more about our stainless steel products or Stainless Steel Epoxy Coated Cable Tie price please feel free to contact us, we will reply you within 24 hours.

Base material:304 stainless steel for general‑purpose outdoor use; 316 stainless steel for salt‑water, coastal and chemical atmosphere environments. 316 grade contains molybdenum element to resist chloride‑induced corrosion.

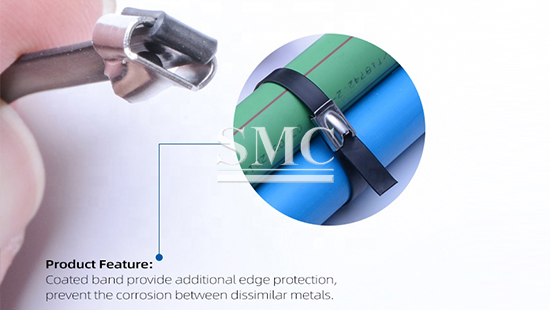

Epoxy coating: continuous fused epoxy polymer layer covering full surface including lock head; prevents galvanic contact and surface abrasion.

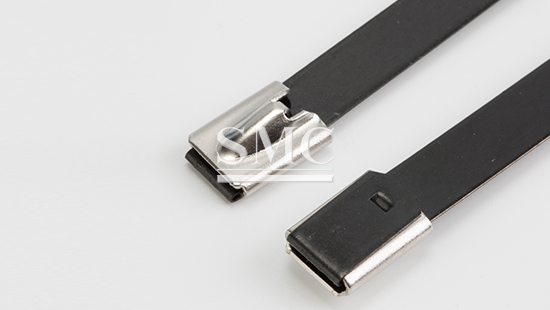

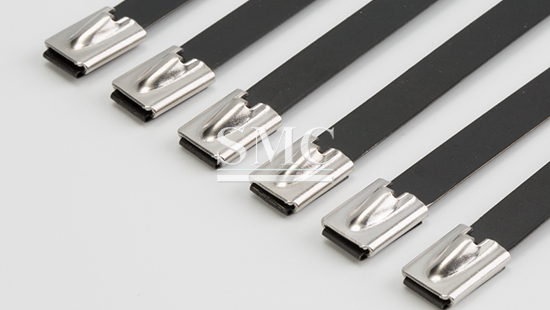

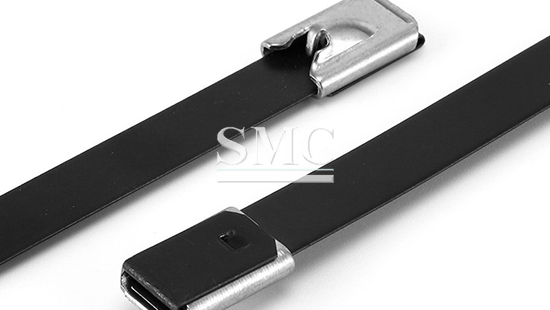

Locking structure:ball‑lock self‑locking mechanism. The stainless steel ball locks the strap to avoid loose opening under mechanical vibration.

Dimension range:Width 4.6mm‑12.7mm; Length 100mm‑1500mm. Wider size delivers higher tensile load capacity.

Tolerance:Width tolerance ±0.15mm; length tolerance ±5mm; coating thickness tolerance ±0.05mm.

Structure difference:non‑releasable one‑way lock for permanent fixing; releasable type for repeated disassembly and adjustment work.

High Mechanical Tensile Resistance — Made from solid stainless steel substrate, maintains stable bundling force under continuous vibration, avoids tie breakage that causes loose cable harness.

Complete Epoxy Surface Insulation — Full‑coverage epoxy coating isolates metal contact, prevents scratch damage on wire jacket and adjacent equipment housing during installation.

Enhanced Anti‑corrosion Capability — Epoxy layer seals steel surface against salt mist and humid air, extends service life in coastal or chemical‑exposed sites and lowers part replacement frequency.

Stable Self‑locking Ball‑lock Structure — Ball‑type locking design tightens progressively when pulling strap; will not slip back after installation to keep bundles neat and secured.

Wide Operating Temperature Adaptability — Works reliably from ‑40℃ up to 150℃, maintains physical performance both in low‑temperature outdoor and high‑temperature equipment cabinet environments.

Off‑shore Platform Cable Bundling — Used to fasten instrument cables on offshore and coastal facilities. Epoxy coating plus 316 base material resist chloride salt erosion. Recommend width 7.9mm‑12.7mm 316 grade.

Railway Vehicle Wiring Harness Fixing — For securing internal wiring harness inside train carriages. Insulating epoxy avoids wire insulation piercing, metal core withstand long‑term vehicle vibration. Recommend width 4.6mm‑7.9mm 304 grade.

Petrochemical Plant Pipe & Cable Organization — Bundling field instrument cables beside chemical pipelines. Coating resists splashed chemical mist, prevents premature rust failure. Recommend 316 substrate for heavy chemical exposure.

Outdoor Solar Power Station Cable Management — Fasten PV array cables in open‑air solar farms. Coating withstands rain and ultraviolet ambient conditions, keeps bundles intact for long‑term field operation. Recommend 4.6‑7.9mm width 304 grade.

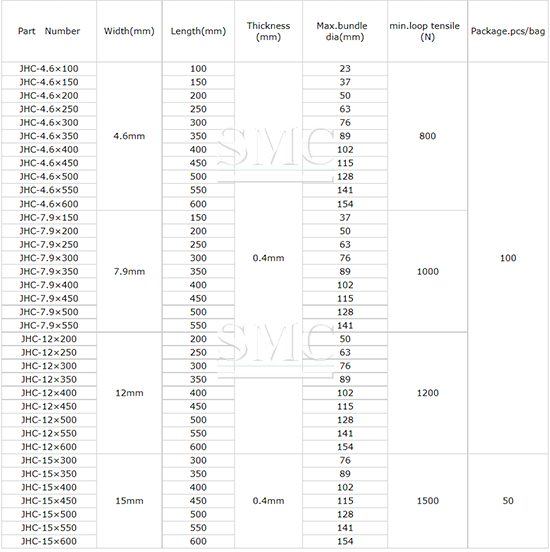

Width（W）
4.6mm	8mm	10mm	12mm
4.6*100	8*100	10*150	12*100
4.6*150	8*150	10*200	12*150
4.6*200	8*200	10*250	12*200
4.6*250	8*250	10*300	12*250
4.6*300	8*300	10*350	12*300
4.6*350	8*350	10*400	12*350
4.6*400	8*400	10*450	12*400
4.6*450	8*450	10*500	12*450
4.6*500	8*500	10*550	12*500
4.6*550	8*550	10*600	12*550
4.6*600	8*600	10*650	12*600
4.6*650	8*650	10*700	12*650
4.6*700	8*700	10*750	12*700
4.6*750	8*750	10*800	12*750
4.6*800	8*800	10*850	12*800
4.6*850	8*850	10*900	12*850
4.6*900	8*900	10*950	12*900
4.6*950	8*950	10*1000	12*950
4.6*1000	8*1000	10*1050	12*1000
4.6*1050	8*1050	10*1100	12*1050
4.6*1100	8*1100	10*1150	12*1100
4.6*1150	8*1150	10*1200	12*1150
4.6*1200	8*1200	10*1250	12*1200
4.6*1250	8*1250	10*1300	12*1250
4.6*1300	8*1300	10*1350	12*1300
4.6*1350	8*1350	10*1400	12*1350
4.6*1400	8*1400	10*1450	12*1400
4.6*1450	8*1450	10*1500	12*1450
4.6*1500	8*1500	10*1550	12*1500
4.6*1550	8*1550	10*1600	12*1550
4.6*1600	8*1600	10*1650	12*1600
4.6*1650	8*1650	10*1700	12*1650
4.6*1700	8*1700	10*1750	12*1700
4.6*1750	8*1750	10*1800	12*1750
4.6*1800	8*1800	10*1850	12*1800
4.6*1850	8*1850	10*1900	12*1850
4.6*1900	8*1900	10*1950	12*1900
4.6*1950	8*1950	10*2000	12*1950
4.6*2000	8*2000		12*2000

Standard Packaging

Each quantity of stainless steel epoxy coated cable ties is packed into sealed anti‑moisture PE inner bags by specified pieces per bag. PE bags are placed into rigid corrugated export cartons. Descriptive product labels are pasted on carton exterior showing material grade, dimension, piece count and batch number. Finished cartons are stacked onto fumigated wooden pallets and wrapped with stretch film to prevent shifting during transit.

Shipping

We support FCL full container sea freight, LCL consolidated sea freight, air freight and courier express, subject to total order volume and destination country. Applicable trade terms include EXW, FOB, CIF. Other terms may be available upon request. Shipping cost is calculated based on total cargo volume, gross weight, destination location and selected transport method.

Lead Time

Samples: 3–7 working days

Standard orders: 15–25 working days

Customized orders(coating color/special dimension): 25–40 working days

Q1: How long does sample preparation take?

A: Standard existing‑size samples take 3‑7 working days. Custom‑size samples need extra 7‑10 working days.

Q2: What information do you need for a custom quotation?

A: Please provide required material grade, tie width & length, order quantity, destination port and preferred trade term.

Q3: What is the MOQ for stainless steel epoxy coated cable ties?

A: MOQ for standard stock sizes is 5000 pieces. Custom dimension items require higher minimum order quantity.

Q4: What certifications can you provide?

A: We can supply material test certificate for stainless steel substrate; coating performance test report is available upon request.

Q5: How do I select between 304 and 316 epoxy coated cable tie?

A: Choose 304 for normal indoor and general outdoor environments. Select 316 grade for coastal salt‑spray, marine or chemical‑vapor exposure locations.

Q6: What risk will happen if over‑tightening epoxy coated cable tie during installation?

A: Excessive pulling force may crack or peel off outer epoxy coating, exposing bare stainless steel and reducing anti‑corrosion and insulation performance. Operate within published rated tensile strength.
