Stainless Steel Fitting

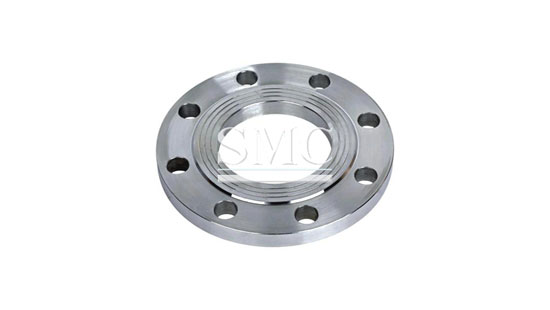

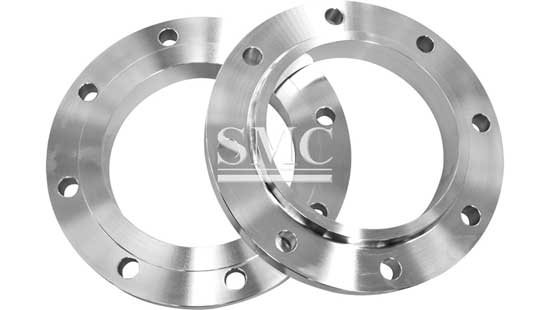

Stainless Steel Slip On Flange

    Size: ANSI B 16.5 from 1/2 to 24 inch


    Pressure: ANSI class 150 to 2,500


    Stainless Steel: ASTM A 182, A 240

Specifications of Stainless Steel Slip on Flange:


1. Stainless Steel: ASTM A 182, A 240
2.Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
3. Size: ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range)
4.Standards: API, ANSI, BS, JIS, UNI, MSS and SP
5. Pressure: ANSI class 150 to 2,500


Sealing surface forms of Stainless Steel Slip on Flange:


Plane (FF), Raised Face (RF), uneven surfaces (MFM), tongue and groove surface (TG), ring joint surface (RJ)

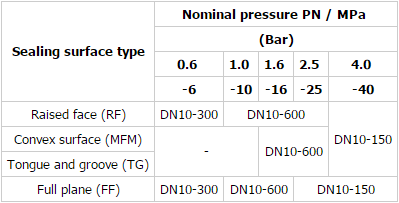

The scope of European system for stainless steel flanges

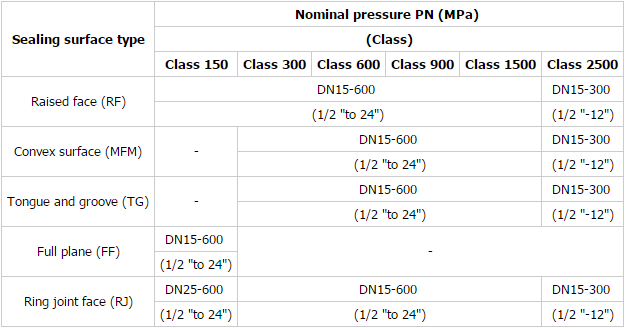

The scope of American system for stainless steel flanges

Package of Stainless Steel Slip On Flanges:


The stainless steel flange products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.

Application of Stainless Steel Slip On Flange:


Used in quick assembly to save the cost, these are also used in less strict requirements in terms of length of pipe section.
