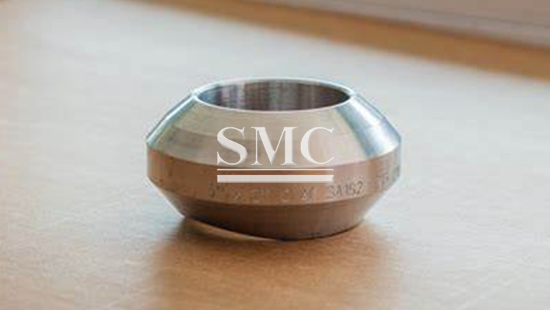

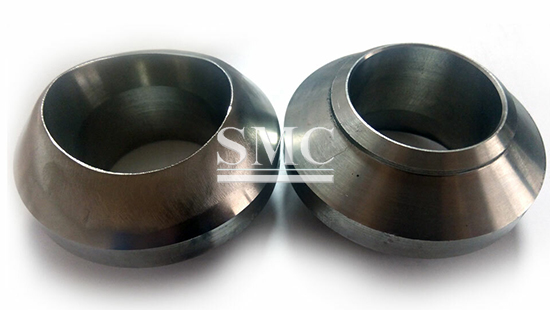

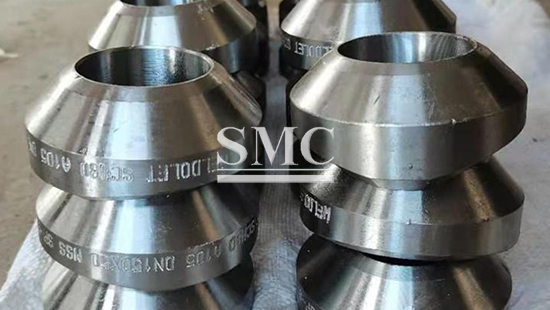

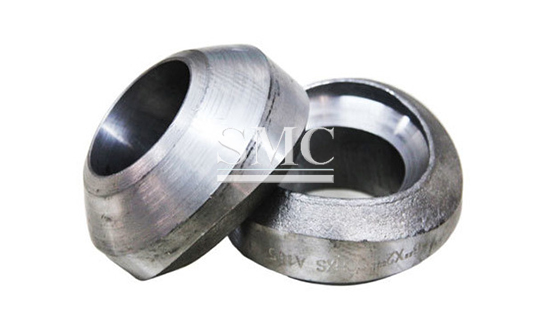

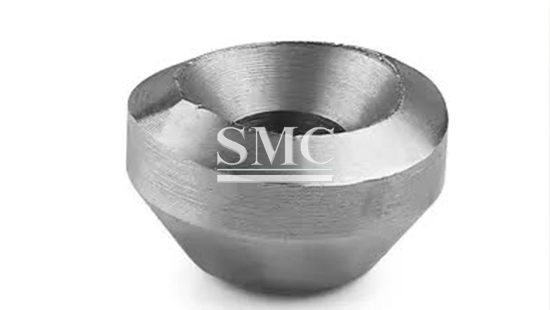

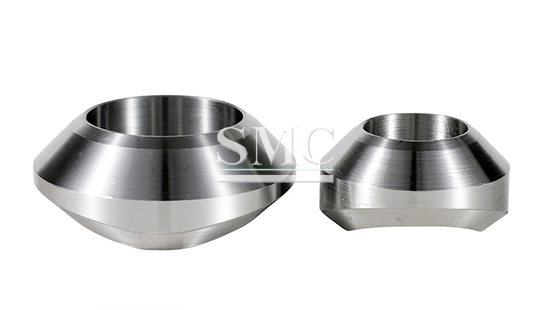

Weldolet
Material: Carbon steel, alloy steel, nickel-based alloys
Connection form: Buttweld
Shanghai Metal Corporation is a leading olet manufacturer and supplier.

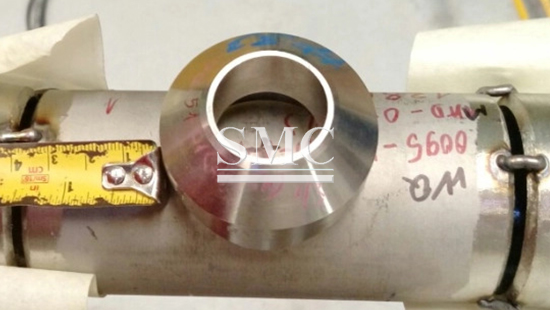

Olet is more widely used in recent years, used for branch pipe connection reinforcement type fittings, instead of the traditional use of the reducer tee, reinforcement plate, strengthen the pipe section and other branch pipe connection type, with safety and reliability, reduce costs, construction is simple, improve the media flow path, series standardization, design and selection of convenient and other outstanding advantages, especially in the high-pressure, high-temperature, large-caliber, thick-walled pipeline is used more and more widely, replacing the traditional branch pipe Connection method.
The olet body using high-quality forgings, with the same material and pipeline materials, the company in carbon steel, alloy steel, stainless steel and other materials for users to choose from.
If you want to know more about our steel pipes & fittings products or weldolet price, please feel free to contact us, we will reply you within 24 hours.

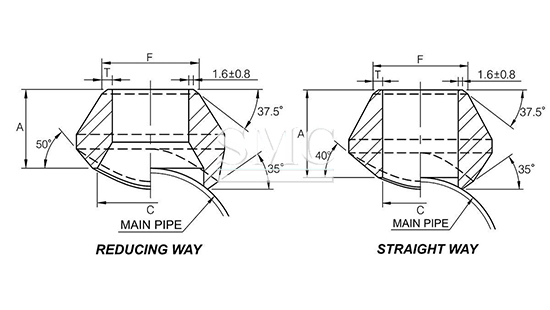

Technical Information of Weldolet:
|
DIMENSIONAL TOLERANCE |
|||
|
MSS SP-97-2012 Unit:mm |
|||
|
ltem |
1/8“~3/4” |
1"~4" |
5"~12" |
|
Face of fitting |
+0.8 |
±1.6 |
±3.2 |
|
Straight way |
||||
|
OutLet |
A |
C |
F |
T |
|
1/4 |
15.7 |
11.5 |
13.7 |
2.24 |
|
3/8 |
19.1 |
14.5 |
17.1 |
2.31 |
|
1/2 |
19.1 |
16.5 |
21.3 |
2.77 |
|
3/4 |
22.4 |
21.5 |
26.7 |
2.87 |
|
1 |
26.9 |
27.2 |
33.4 |
3.38 |
|
1-1/4 |
31.8 |
36.0 |
42.2 |
3.56 |
|
1-1/2 |
33.3 |
42.0 |
48.3 |
3.68 |
|
2 |
38.1 |
53.0 |
60.3 |
3.91 |
|
2-1/2 |
41.1 |
65.0 |
73.0 |
5.16 |
|
3 |
44.4 |
80.0 |
88.9 |
5.49 |
|
4 |
50.8 |
104.0 |
114.3 |
6.02 |
|
(1)Weld Bevel in accordance with ASME B16.25. |
||||
|
Reducing way |
||||
|
OutLet |
A |
C |
F |
T |
|
1/8 |
15.7 |
13.7 |
10.3 |
1.73 |
|
1/4 |
15.7 |
13.7 |
13.7 |
2.24 |
|
3/8 |
19.1 |
17.1 |
17.1 |
2.31 |
|
1/2 |
19.1 |
21.3 |
21.3 |
2.77 |
|
3/4 |
22.4 |
26.7 |
26.7 |
2.87 |
|
1 |
26.9 |
33.4 |
33.4 |
3.38 |
|
1-1/4 |
31.8 |
42.2 |
42.2 |
3.56 |
|
1-1/2 |
33.3 |
48.3 |
48.3 |
3.68 |
|
2 |
38.1 |
60.3 |
60.3 |
3.91 |
|
2-1/2 |
41.1 |
73.0 |
73.0 |
5.16 |
|
3 |
44.4 |
88.9 |
88.9 |
5.49 |
|
3-1/2 |
47.8 |
101.6 |
101.6 |
5.74 |
|
4 |
50.8 |
114.3 |
114.3 |
6.02 |
|
5 |
57.2 |
141.3 |
141.3 |
6.55 |
|
6 |
60.4 |
168.3 |
168.3 |
7.11 |
|
8 |
69.8 |
219.3 |
219.3 |
8.11 |
|
10 |
77.7 |
273.1 |
273.1 |
9.27 |
|
12 |
85.9 |
323.9 |
323.9 |
9.53 |
|
14 |
88.9 |
355.6 |
355.6 |
9.53 |
|
16 |
93.7 |
406.4 |
406.4 |
9.53 |
|
18 |
96.8 |
457.2 |
457.2 |
9.53 |
|
20 |
101.6 |
508.0 |
508.0 |
9.53 |
|
24 |
115.8 |
609.6 |
609.6 |
9.53 |

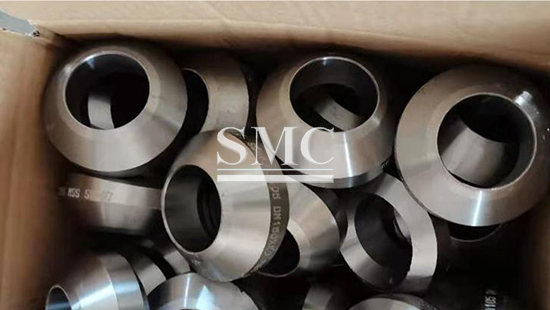

Packaging of Weldolet:
