Material: WT 20 red

Standard: ISO6848

Length: 150mm/175mm

Product Detail | Technical Information | Packaging | More

Product Detail

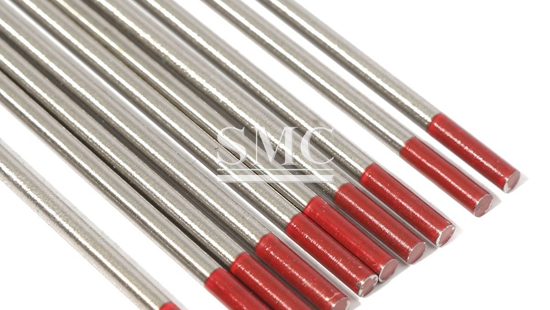

Brief Description of WT20 Thoriated Tungsten Electrode:

Thoriated tungsten is a good general use tungsten for DC applications, Because it operates well even when overload with extra amperage, thus improves the performance of welding.

Specification of WT20 Thoriated Tungsten Electrode:
Mark: WT 20 red
Standard: ISO6848
Diameter: 1.0/1.6/2.0/2.4/3.2/4.0/5.0/6.0
Length: 150mm/175mm
Added impurity: ThO2
Impurity: 1.70-2.20%
Other impurity: 0.2% max
Density: 18.15

Electric discharged: 2.0-3.0

Technical Information of WT20 Thoriated Tungsten Electrode:

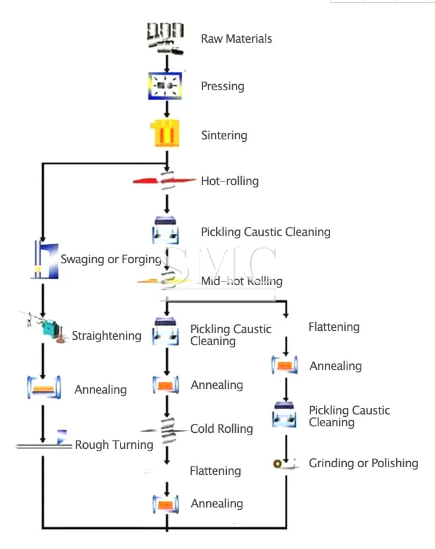

Processing Method of WT20 Thoriated Tungsten Eletrode:

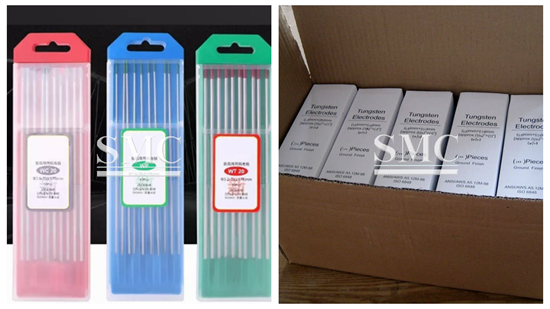

Packaging of WT20 Thoriated Tungsten Electrode:

Inner packing: 10pcs per plastic box , 10boxes per plain carton

Outer packing: 10 plain caron per big carton

Application of WT20 Thoriated Tungsten Electrode:

1)Owing to their high density, heat-resistance, as well as fine thermal and electricity conductivity, tungsten and molybdenum parts are widely applied. They are mainly made into rocket motor throat liner, X ray generator target, armor warhead, rare earth electrode, glass furnace electrode and so on.

2)Most of our tungsten and molybdenum machined parts are used as MOCVD and ion implantation parts

3)Utilized in X-ray diagnostics, CT scan, nuclear medicine and other fields.

4)Tungsten and molybdenum machined parts are also used as seedholders and fasteners in vacuum and reducing atmosphere furnace.

5) Used as central structural material, anti-radiation, heat resistance parts in nuclear reactor.

Advantage of WT20 Thoriated Tungsten Electrode:

1)The lower power of electronic

2)The higher temperature of second crystallization

3)The better electro-conductive nature

4)The good property of mechanical cutting
