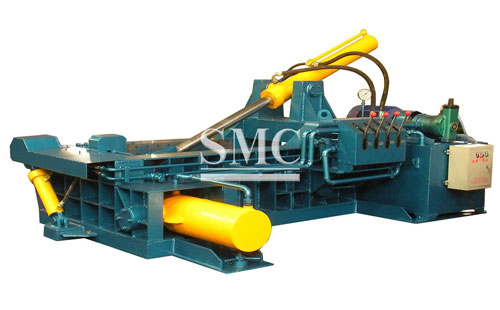

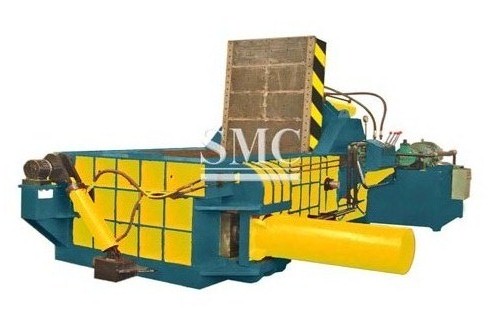

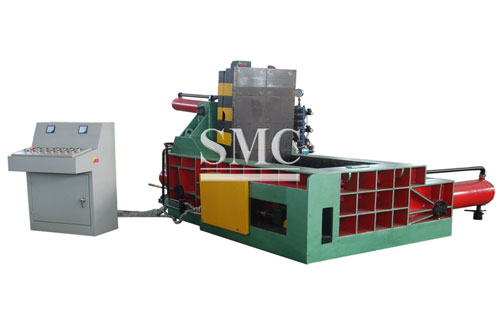

Hydraulic Scrap Metal Baler

    Rated Power: 7.5 kW


    Rated Speed: 1440 rpm


    Power Spec: 3PH, 50 / 60Hz

Product Detail

Product Description

Hydraulic Scrap Metal Baler mainly suitable for the steel works and the recovery and process industries ,colored and black metal smelt industries .It can extrude every kinds of metal leftover materials , steel paring, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps. The purpose is to reduce the costs of transportation and smelting.



Features:
1. No installation demands, operating the baler directly
2. With control platform on the baler, convenient for operating
3. Three rams pressing the scrap metals.
4. Automated bale ejector, the bale turned out from the pressing chamber.
5. With cooler and hotter ( For special temperature environment)
6. Hydraulic Oil is ISO 46

7. The guard plate on the pressing chamber is made of S45C wear plate.



Packaging: Wrap film packaging or wooden case



Delivery: 20 days for 1*20GP container



Guarantee and after-sale service:
One year guarantee for whole machine
24 hours technical support by email
Calling or door-to-door service
User manual and detailed video.

Power System (Motor)

Type: Y132M-4

Rated Power: 7.5 kW

Rated Speed: 1440 rpm

Power Spec: 3PH, 50/ 60Hz

System Parameters

Lid Cyl. Force: 24 Ton

Side Pressure Cyl. Force: 50 Ton

Main Pressure Cyl. Force: 63 Ton

Bale Discharge Cyl. Force: 8 Ton

Hydraulic System Pressure:  25 MPa

Idle Cycle Time:  Approx. 90 Sec

Hydraulic System (Pump)

Type: 25YCY14-1B

Rated Displacement: 5ml/r

Max Operating Pressure: 31.5MPa

Operation System

Manual Valve Operation

Standard Configuration

A3 Steel Liners, Surface Heat Treatment.

Optional Configuration

Cutting Blades & Teeth (2 sides);

Cooler / Heater;

Diesel / Diesel Generator for Power.

General Description

Main Machine Size (L×W×H): 2800×1900×1700 mm

Press Box Size (L×W×H): 1000×600×500 mm

Bale Size (W×H): 190×190 mm

Bale Weight (Steel): 15-30 kg

Production Rate (Steel): 0.4-0.8 ton/hr

Shipping Weight: Approx. 4 tons

Loading (Standard Containers): One

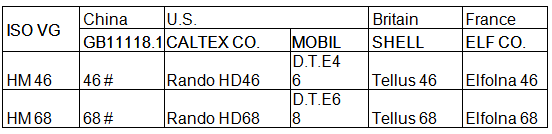

Hydraulic Oil Brand

Oil Tank Volume: 180 ltr

Hydraulic Oil Brand




Drawing View
