Miniature Circuit Breaker
Rated Voltage: 250V, 500V, 750V, 1000V (DC)
Rated Current: 60,10,16,20,25,32,40,50,63A
Breaking Capacity: 6KA,10KA
Shanghai Metal Corporation is a Joint-Manufacturer of low-voltage electrical appliances, especially in MCB, RCCB & MCCB.
Application:

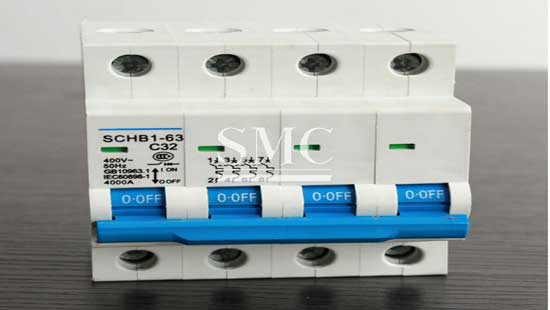

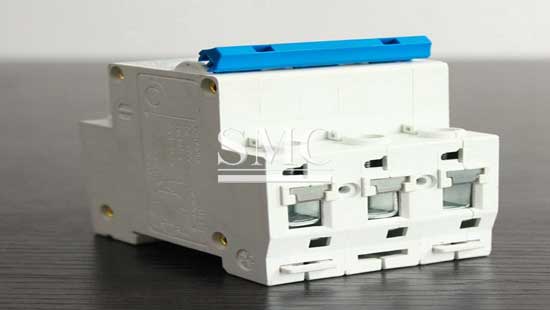

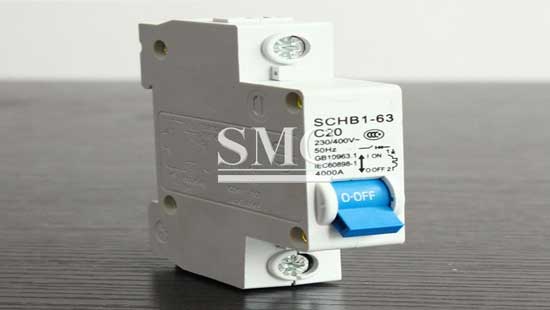

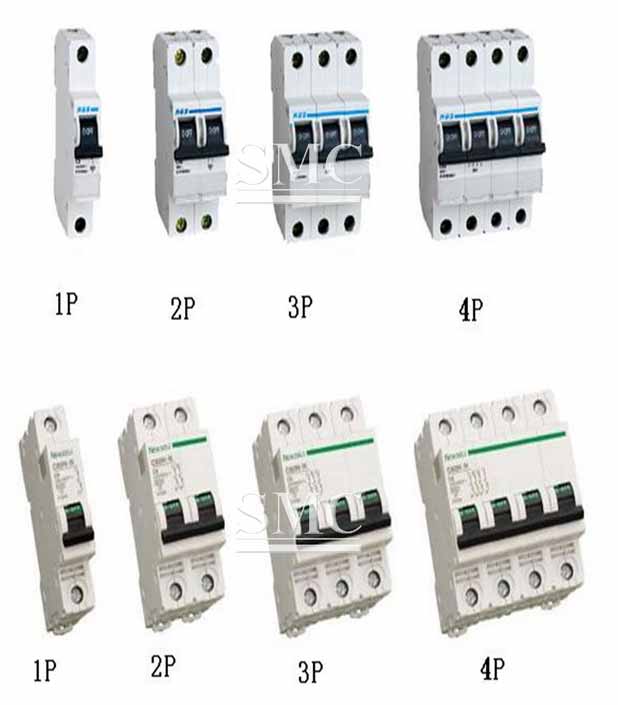

SCHB1-63 series miniature circuit breaker (MCB) is applied to protect the over-current of electrical apparatus and circuit device of
construction and similar building in the circuit with rated frequency of AC 50Hz, rated voltage of 230V/400V and max rated current of 63A.
It can also be applied as the infrequent make-break operation.

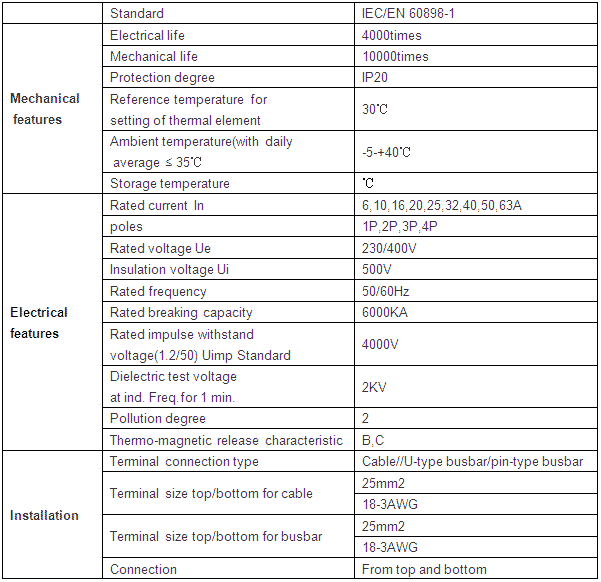

Specification:

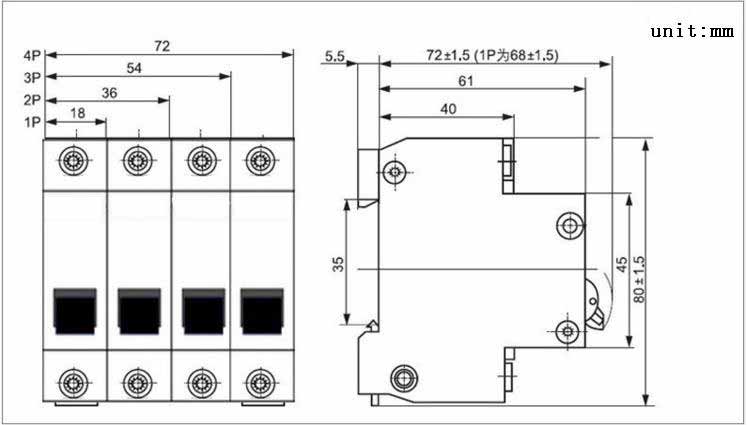

Configuration and Mounting Dimensions:

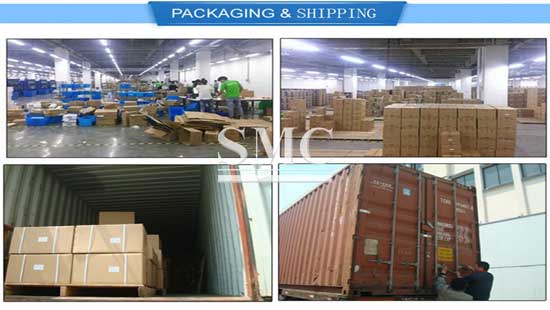

Packaging of Miniature Circuit Breaker:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)Shanghai Metal Standard
2)Customization
Certification:
This product conforms to the standards of IEC60898: 1995 and GB10963-1999 (requirements of over-current protection circuit breaker for household or other uses).
