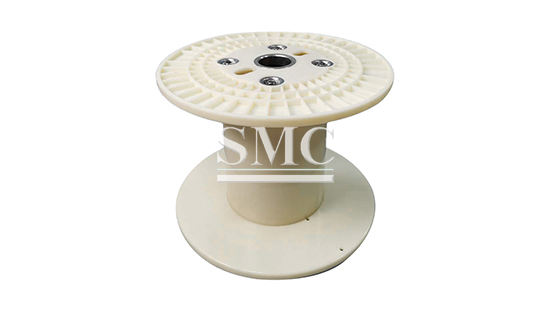

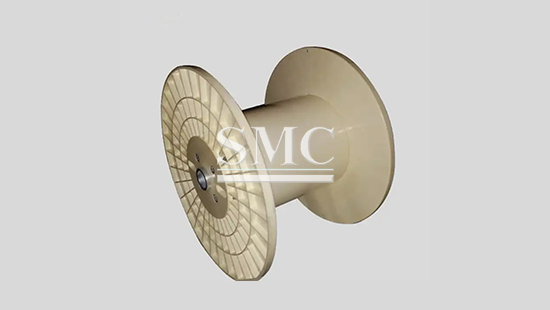

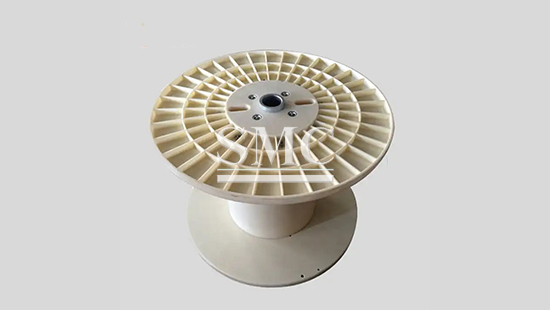

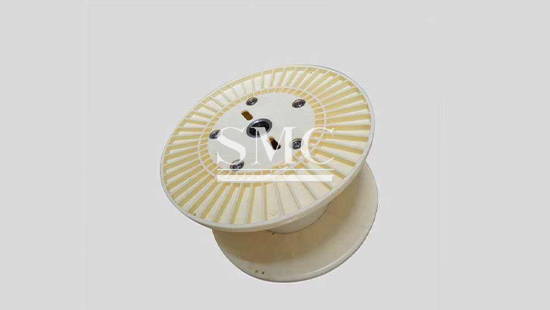

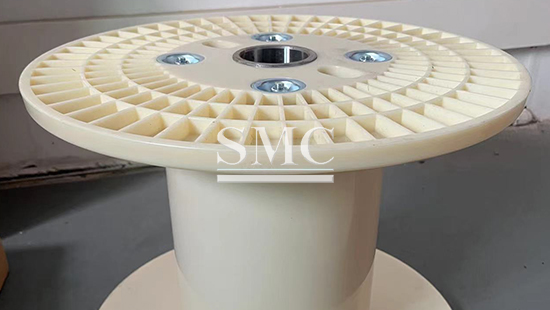

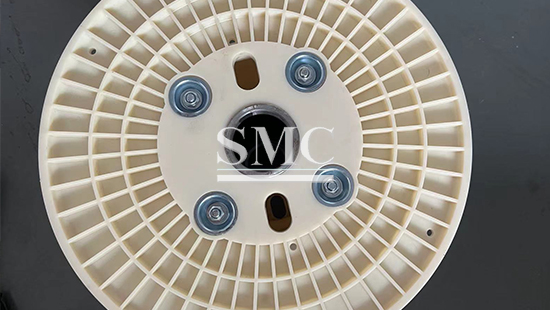

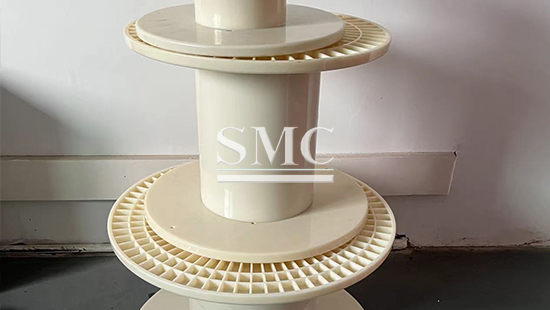

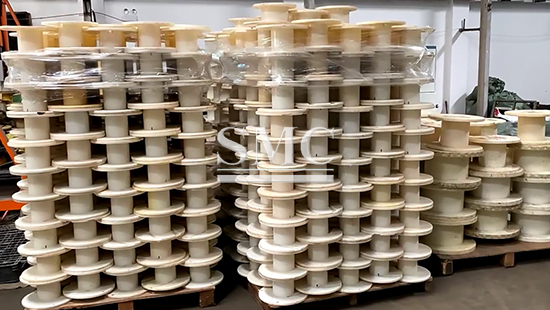

ABS Plastic Bobbin

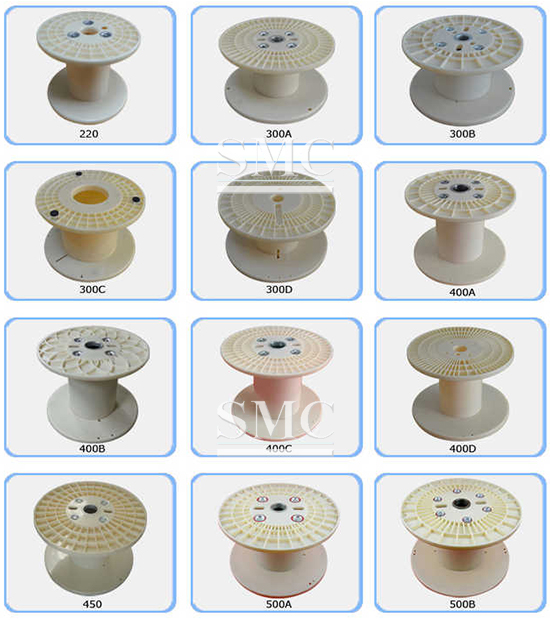

Size: 300, 400A, 400B, 500A, 500B
Material: ABS/PS/Plastic/PC/PLP/PLT/Metal
Plastic Moulding Type: Extruding
Usage: Wire winding
Shanghai Metal Corporation is a professional research and development and manufacturing of wire and cable plate enterprises.
301ABS engineering plastic, for high speed stranding, fiber, optical cable, communication cable. ABS Plastic Bobbin is perfect for electric cable wire, it can be used in wire transport. We can advise suitable spool size for u according to your cable OD or meter.
If you want to know more about our ABS Plastic Bobbin price please feel free to contact us, we will reply you within 24 hours.
The production of bobbin in PN series is in accordance with the standards of JB/7600.5-2008, the series are widely used in the process of fiber and cable line-up and release.
The line-up and release for the serial data communication cable lines, twisted pair, cable equipment; and also the line-up and release for the High-knitting machine, high-cutter machine.winding machine,and weaving machine.
|

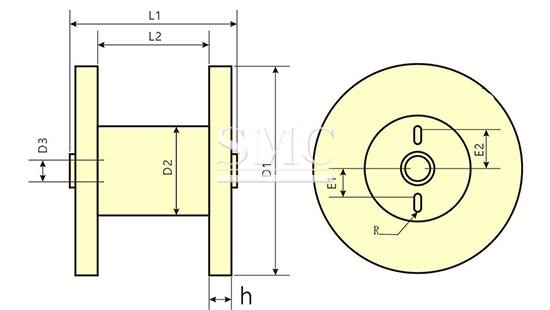

Type |
Specification |
D1 |
H |
D2 |
L2 |
L1 |
D4 |
R |
E |
|
Plastic Barrel |
300 |
300 |
12 |
160 |
160, 200, 250 |
185, 225, 275 |
30, 36, 40 |
7.5 |
76-97 |
|
400A |
400 |
16 |
200 |
120, 250, 263, 265, 280 |
155, 282, 300, 312 |
40, 56 |
10 |
60-74.5 |
|
|
400B |
400 |
20 |
200 |
160, 200, 250 |
200, 240, 290 |
40, 56 |
7.5 |
75-90 |
|
|
500A |
500 |
20 |
250 |
250, 315 |
300, 375 |
40, 56, 80 |
12.5 |
70.5-98 |
|
|
500B |
500 |
25 |
250 |
250, 270, 280, 315 |
300, 320, 375 |
56, 80 |
10.5 |
70.5-98 |
|
|
Steel Barrel |
500C |
500 |
27.5 |
250 |
250, 270, 280, 315 |
300, 320, 375 |
56, 80 |
10.5 |
70.5-98 |
|
630A |
630 |
25 |
250 |
250, 315, 400 |
300, 375, 475 |
56, 80 |
12 |
70.5-98 |
|
|
800 |
800 |
35 |
400 |
400, 500 |
500, 600 |
80, 127 |
15 |
115-158 |
|
|
1000 |
1000 |
40 |
500 |
630 |
750 |
80, 127 |
20 |
114-166 |

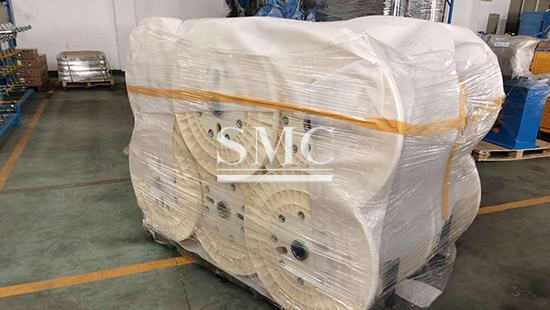

Typically packaged securely to prevent damage during transportation and storage. Common packaging materials include woven bag packaging, wooden box, or custom packaging to accommodate the specific dimensions and quantity ordered.
