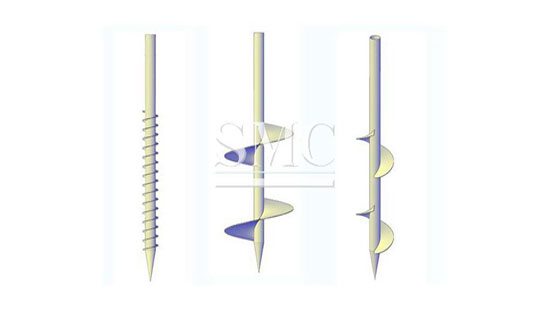

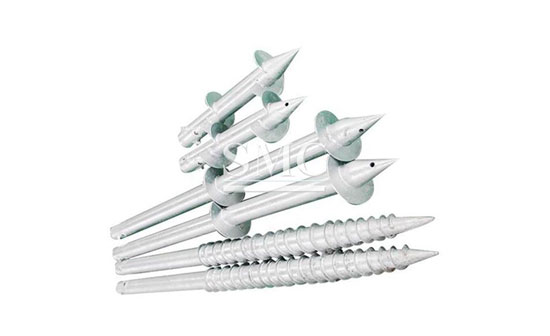

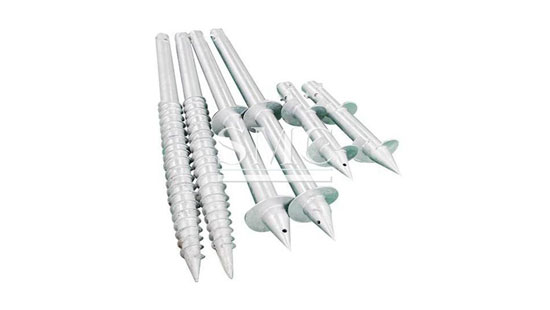

Ground Screw

Pipe thickness: 2.5mm-5mm

Connection end: Flange/ U plate/ nuts

Surface treatment: Hot dip galvanizing 65~100 μm

Product Detail | Technical Information | Packaging

Product Detail

1.Anchor with flange

The end of part is welded with flange which is easy for connections. This type is usually used for buildings and wharf because of its high accuracy and stability.

2.Anchor with U plate

The end of part is weld with U shape plate, this kind of anchor has good performance in connection and easy for operation. Normally used for fence and barrier.

3.Anchor with nuts

This type of anchor is fixed by three or four nuts which means easy for installation. It’s insert length can be adjusted according to customer demands. Normally used for the base of solar panels.

4.Made to order

Pipe thickness: 2.5/3.0/3.75/4.0mm or according to customer requirement(2.5mm-5mm)

Out diameter: 38/48/60/68/76/89/102/108/114/127/133/140/160/210mm

Length: 300mm-6000mm

Material: Q235/ASTM A36

Surface treatment: Hot dip galvanized to DIN EN ISO 1461-1999

Minimum order quantity (MOQ): 500 pcs

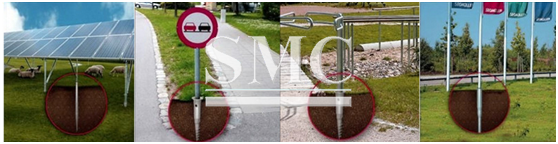

Base of solar panel

Base of fence

Base of sign

Base of container house、cabin

Base of flagpole

Package:

1)pole anchor packed in cartons and fixed by steel pallets;

2)Bulk on pallets with four corner protector and wooden board on the top, two PP/steel strips and stretch film wrapped on pallets.

For the part less than 10kg each, there will be about 150pcs/ pallet, 2100pcs/20’container. Quantity tolerance: ±10%
