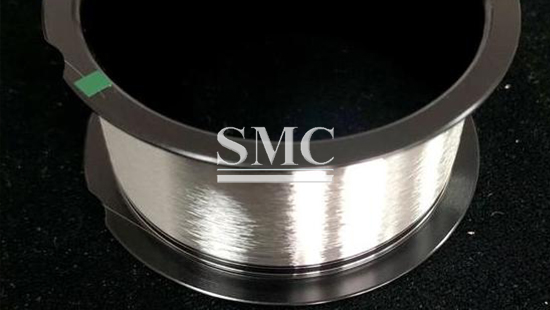

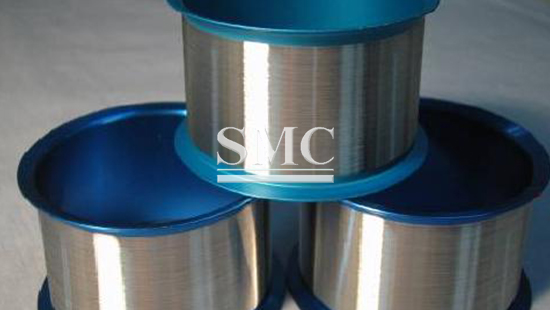

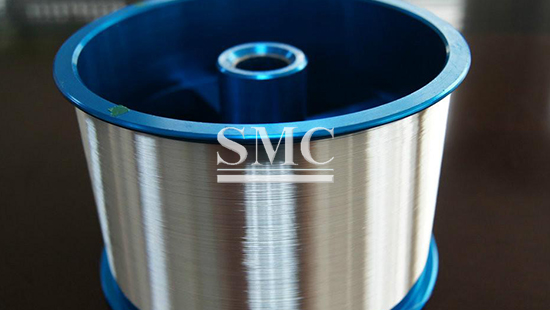

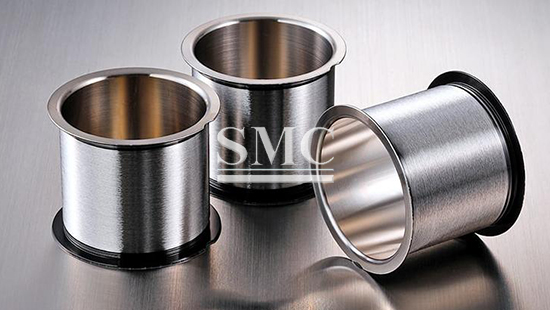

Ultra High Purity Aluminum-Based Bonding Wire Busbar
Purity Level: 5N (99.999%), 6N (99.9999%)
Diameter Range: 15μm-500μm (±0.5μm tolerance)
Tensile Strength: 180-220MPa (customizable gradient)
Surface Roughness: Ra ≤ 0.1μm (laser detected)
Packaging: 1kg/3kg vacuum-sealed anti-oxidation coils

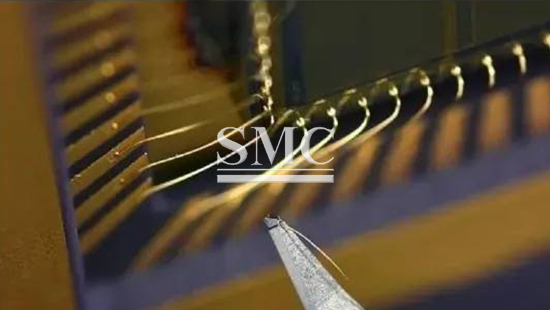

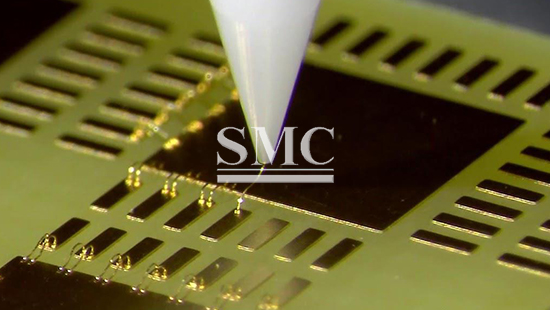

As a core material in semiconductor packaging, our 5N-grade (purity ≥99.999%) aluminum-based bonding wire busbar is produced using vacuum melting and precision drawing technology, achieving ultra-low impurity levels (Fe <5ppm, Si <3ppm) and a diameter tolerance of ±0.5μm. This ensures outstanding electrical conductivity stability and excellent resistance to electromigration, making it the ideal solution for chip interconnects.
The product is enhanced with gradient annealing technology to optimize the grain structure, offering an adjustable tensile strength of 180-220MPa and an elongation rate of 12-18%. It is perfectly compatible with fine bonding equipment such as gold wire bonding machines and wedge bonding machines. Certified to IECQ QC080000 and meeting automotive-grade AEC-Q006 and aerospace-grade MIL-STD-883 standards, this bonding wire has become the preferred interconnect material for power modules, LED packaging, and RF devices.
Available in full custom diameters from Φ15μm to 500μm, the wire also comes with optional antioxidant surface treatment (aluminum nitride coating) and winding packaging solutions, making it ideal for 5G communication, new energy vehicle IGBTs, and high-density memory chip packaging.
For inquiries or customized orders, contact us within 24 hours for expert guidance. Let’s transform your creative visions into reality with cuttingedge Ultra High Purity Aluminum-Based Bonding Wire Busbar technology!
-
1). Attribute: Base Material Composition: Ultra High Purity Aluminum (Al ≥99.999%) + Trace Rare Earth Elements
2). Wire Diameter Uniformity: CV ≤1.5% (ASTM E8 Standard)
3). Elongation at Break: 12%-18% (at 25°C environment)
4). Resistivity: ≤2.65μΩ·cm (measured at 20°C)
5). Thermal Cycling Stability: -65°C ~ +300°C, 1000 cycles with no whisker formation
-
Packaging of High Purity Aluminum Wire
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
