Aluminium tube and coil are used in many fields for industry applications. Shanghai Metal Corporation is the leading and professional manufacturer of aluminium tube and coil used in refrigerator parts, car radiator and other industrial purposes, especially heat exchange industry.

Specifications of Aluminum Products for Heat Exchange Industry:

Specifications of Flat Aluminium Alloy Tube:
1) Grade: 1070, 1060, 1050, 3003, 3012
2) Size:OD 4mm - 20.0mm, ID >=0.5mm
3) Tolerance: +/-0.03mm
4) Standard: GB/T4437-1-2000
5) Temper: O-H112

Specifications of Aluminum Fin Strip:
1) Grade
    a) 1000 Series: 1100, 1060
    b) 3000 Series: 3003
    c) 5000 Series: 5052
    d) 4000 Series: 4343+3003+4343, etc.
2) Thickness: 0.07mm - 4.0mm
3) Width: 13mm - 1250mm
4) Temper: O, H14, H18, H22, H24, H26

Parameters of Aluminum Products for Heat Exchange Industry:

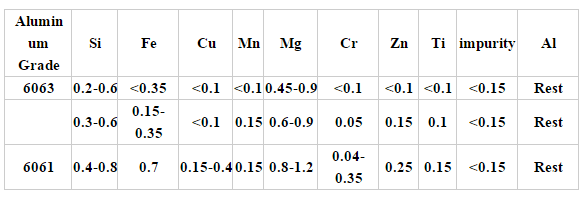

Typical chemical composition for aluminum alloy 6000 series (GB/T3190):

We can provide high quality aluminum extrusion proflies which can be used in almost industy line.

1) Aluminum extrusion profile

2) Aluminum alloy: 6000 series , T3-T8 temper

3) All kinds of surface treatment, such as powder coated, electrophoresis, anodizing finish of all colors

4) Anodized thickness : more than 10 microns;  Powder coating thickness: more than 40 micron.

5) Quality standard: GB/T5237-2008 (advanced class). Guaranteed quality and good price

6) Good surface finished, no burr or dirt

>Flat Aluminium Alloy Tube

Surface treatments:

1) Mill finish

2) Anodized

3) Eletrophoresis

4) Powder coating

5) Silver matt

6) Sand blasting

7) Wooden grain

>Aluminum Fin Strip

Surface treatments:

1) Bright&Smooth Surface

2) Free from defects like white Rust

3) Oil Patch

4) Edge Damage

Packaging of Aluminum Product

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Inside Packing:

1) Protection film on the surface without logo for each item

2) Protrctive pastive pastic bag for each item.

3) Protective EPE foam for each item

Outside Packing:

Wrap to be bundles by waterproof craft paper or EPE film.

Applications for Aluminum Products for Heat Exchange Industry:

1) Cooling system

2) Heat transfer system

    a) Radiator

    b) Condenser

    c) Intercooler

    d) Oilcooler

    e) Heater

    f) Evaporator, etc.
