Base: Copper, Steel, Stainless Steel

Cladding: Stainless Steel, Copper, Titanium

Technique: Explosive Cladding

Product Detail | Technical Information | Packaging

Product Detail1

Shanghai Metal Corporation is a leading manufacturer and supplier of metal plates in China, who is engaged in design and produce metal bar, sheet, coil and so on.

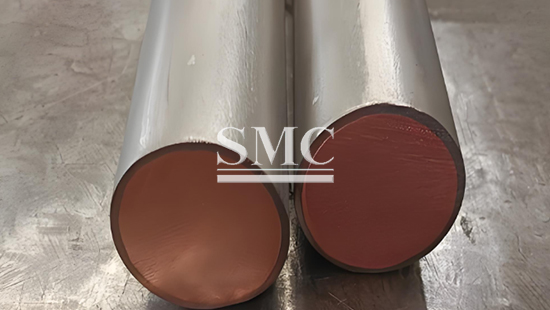

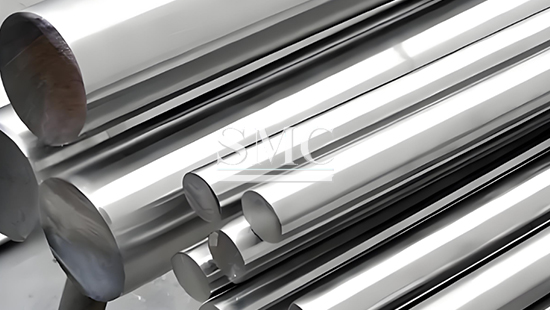

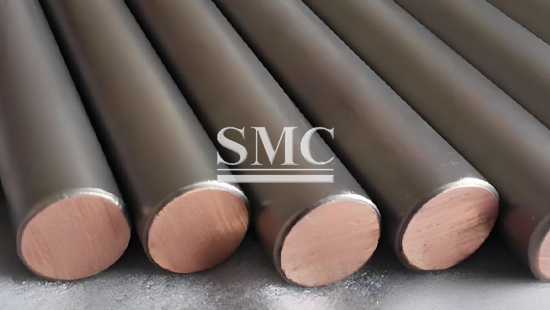

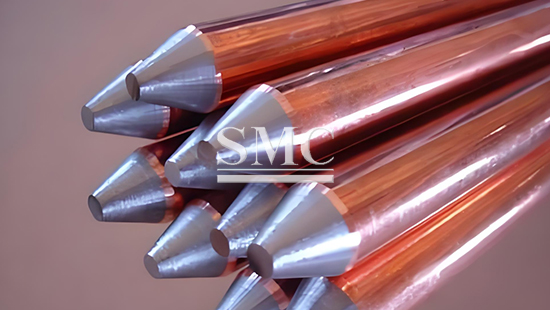

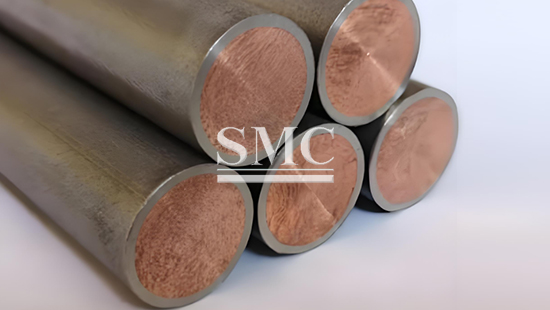

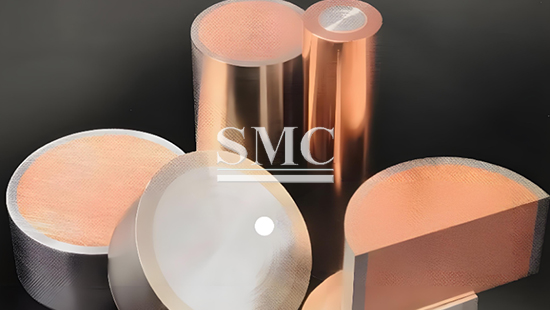

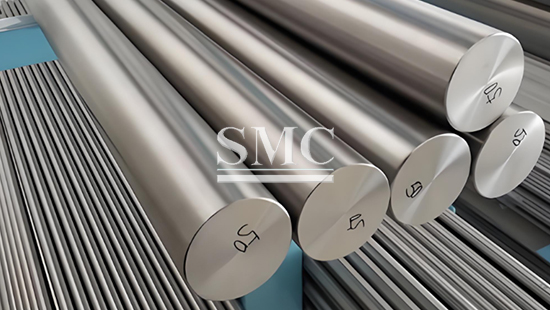

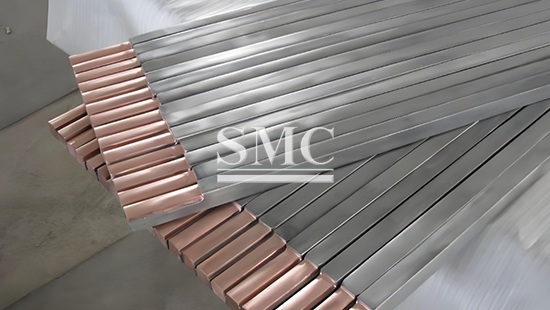

In response to the needs of high-end customers, we have developed a new type of bimetal explosive cladding bar, utilizing copper, steel and stainless steel as the core and cladding anti-corrosive layer stainless, copper and titanium, which embraces excellent properties of both materials. With high loading capacity, the bar can also keep good electrical conductivity. Thus even being applied in harsh environment, this bar can keep long living life. This design significantly enhances the stability of the connection between the claw and the guide rod. It boasts high bonding strength, increased maximum operating temperature, reduced interfacial impedance and potential difference, and a reduced probability of steel claw detachment under extreme working conditions. Consequently, its service life and energy-saving capabilities are greatly improved.

If you want to know more about our Bimetal clad bar, or other related products, please feel free to contact us, we will reply you within 24 hours.

1) Enhanced Strength
2) High Electrical Conductivity
3) Cost-Saving
4) Good Anti-corrosion
5) Good Low-temperature Performance
6) Excellent Superplastic Forming Performance

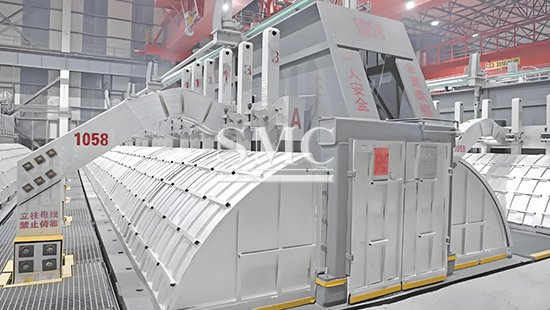

1) Electrolytic metallurgy industry
2) Electrolytic hydrogen industry
3) Chlor-alkal industry
4) Pressure vessel
5) Petrol industry
6) Power station industry, etc.

1.Incoming material quality control
2.Grinding material surface
3.Assembling base and cladding layer & explosive
4.Heating up
5.Rounding
Trimming & cutting

Product Series	Material	Diameter Range (mm)	Cladding Layer Thickness (mm)
stainless steel clad copper	304S/316L+T2	φ15~100	1-5
copper clad steel	T2+Q235B/Q345B	φ15~100	2-8
Steel clad copper	Q235B/Q345B+T2	φ15~100	1-4
Titanium clad copper	TA1+T2	φ15~100	1-4
Titanium clad stainless steel	TA1+304S/316L	φ30~100	2-6

The material alloy grade can be customerized.

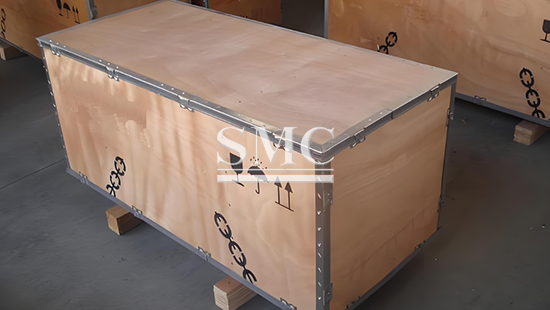

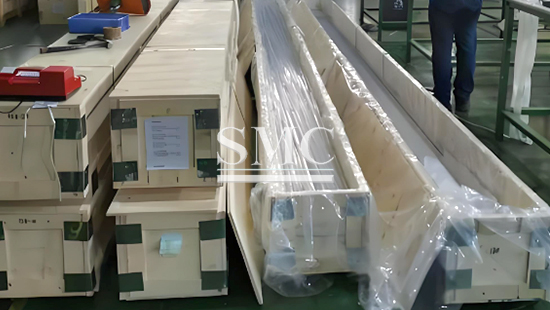

Packaging of Bimetal clad bar

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
