ISze Type Code: 22B0



    Min. Order: 1 Unit


    Cubic Capacity: 33.1m³

Product Detail

Description of Bulk Container:

As one of the leading container manufacturer and supplier. Shanghai Metal Corporation has supplied bulk containers to many oversea customers. Except this, we also can provide best shipping solutions for our customer.

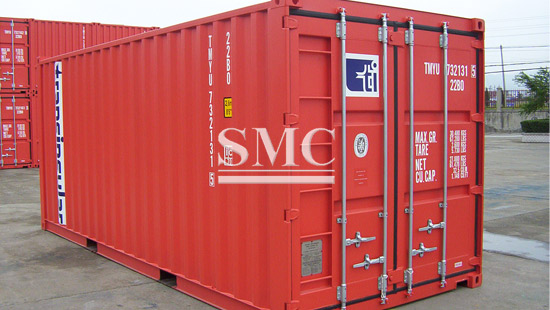

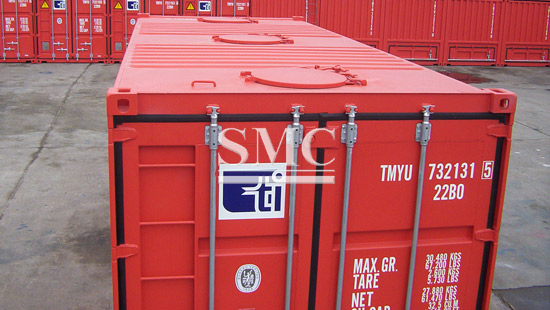

Bulk containers are special in that they were designed specifically for specifically transporting bulk goods, such as spice or grain. Also bulk containers can be used for general cargos. Bulk Containers have manholes on top, which allows for easy loading of goods, and thanks to a clever hatch they can be unloaded at a whim simply by tipping the 20ft Bulk Container. Bulk containers have three loading hatches in the roof, each of a diameter of approx. 610 mm (2’). The distance between the hatches (center to center) is 1.83 m (6'). On the door side, there are two discharge hatches, which are sometimes equipped with short discharge tubes for guiding the bulk cargo. Alternatively, two unloading hatches may be mounted in the doorways, for emptying the containers. Lashing rings are mounted in the top side rails for securing the cargo. Bulk containers are equipped with forklift pockets, which allow handling by forklift trucks.

Consistently high quality standard of our container equipment through worldwide classification society certificate procedure

Adherence to the latest safety standards, regulations and all relevant ISO norms

Environmentally-sustainable solutions for preserving natural resources (e.g. steel-floor containers)



Dimensions and Capacities of Bulk Containers:

20ft Bulk Container

Dimension

Millimeter

Feet

External

Length

6,058

20'

Width

2,438

8'

Height

2,591

8'6"

Internal

Length

5,899

19'4.2"

Width

2,352

7'8.6"

Height

2,390

7'10"

Door
Opening

Width

2,340

7'8"

Height

2,303

7'6.7"

Fork Pocket

Width

360

1'2.2"

Height

115

4.5"

Center Distance

2,050

6'8.7"

Roof Loading Hatch Opening

Diameter

610

2'

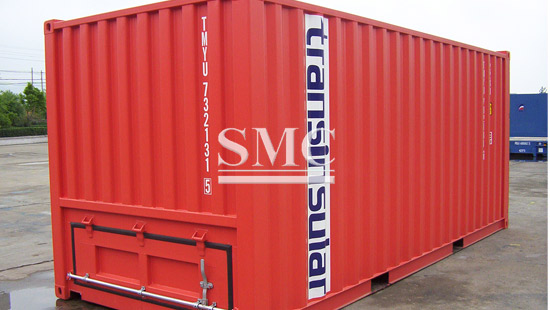

Front Discharging Hatch Opening

Width

2,200

7'2.6"

Height

600

2'

Inside Cubic Capacity

33.1 Cu.m

1170 Cu.ft

Weight

Kilogram

Pound

Max Gross Weight

30,480

67,200

Tare Weight

2,700

5,950

Maximum Payload

27,780

61,250

Internal Capacity

Cube Meter

Cube Feet

33.1

1,170

Allowable Stacking Weight1.8G

216,000

476,190





Testing & Inspection

1 Materials and Parts Inspection

All materials and parts are inspected by the manufacturer's Quality Control department to ensure they are up to the specification called fr in the design.



2 Production Line Quality Control

All containers are manufactured under effective quality control procedures to meet the specified standards. All dimensions are checked and smoothe operation of the doors are ensured after each container's completion. A light and watertight test is conducted on all containers.

Quality control personnel independent of the production dept. will be inspecting on all phaes of the production as well as ad hoc inspections by the calssificatin soceity's surveyor and buyer's representatives to assure the quality of the container.



Warranty

1 Guarantee

The guarantee period will commence the day after the certification is issued by the calssifcation society.



2 Paint Guarantee

The application of paint will be guaranteed against corrosion and paint failure for a period of three years. The guarantee is for all faults affecting more than 10% of the painted surfaces and will assure partial or total re-painting of the contianers. Normal wear/tear, or corrosion caued by acid, alkali or results of damages by abrasion, impact or accident are excluede.

Note: Corrosion is defined as rusting which exceed RE3 (European scale of degree of rusting) on at least ten percent of the total container surface coated with the concerned coating system.



3 Other Guarantee

This container will be guaranteed againt any defect or omissions in construction, workmanship and materials for a period of 24 months. In the event of defects, FACTORY will replace. correct or install to make the container satisfactory to this specification and its intended service at FACTORY's expense. Any damages caused by mis-handling, mis-securing, mis-loading, impact and any natures of accidents are excluded.

Features of 20 Feet Bulk container:


1. They are generally cubic in form and therefore can transport more material in the same area than cylindrically shaped containers and far more than might be shipped in the same space if packaged in consumer quantities.

2. Composite IBCs rely on plastic liners that can be filled and discharged with a variety of systems.

3. The manufacturer/processor of a product can bulk package a product in one country and ship to many other countries at a reasonably low cost where it is subsequently packaged in final consumer form in accordance with the regulations of that country and in a form and language suitable for that country.



Applications of 20 Feet Bulk container:


Bulk containers are used in particular for transporting bulk cargo, such as grain, feedstuffs, and spices.

However, bulk container may also be used for transporting general cargo.
