Copper & Brass Coil / Strip/ Tape

Copper Beryllium Strip/ Beryllium Copper Strip

    Grade: C17200, C17500, C17510, etc.



    Thickness: 0.12mm - 2.0 mm



    Width: 10mm - 400 mm



    Temper: TB00, TD01-04, TF00, TH01-04, TM00-08

The Beryllium Copper alloys are the most versatile of all copper alloys.

They combine a wide range of properties that make our alloys the ideal materials to meet the exacting requirements of many products demanding high specifications that are used in the most diverse markets.

The Beryllium copper alloys offer a wide combination of mechanical and electrical properties, combining with excellent performance which is unique for copper alloys.

The mechanical strength achieved after a simple heat treatment, at low temperature, ranks highest in all the copper-based alloys, and combined with a high electrical conductivity outperforms any bronze alloys.

Our alloys exhibit a wide range of desired properties such as high fatigue strength, excellent corrosion, wear and abrasion resistance. They are also non-magnetic and non-sparking.



Specifications of Copper Beryllium Strip/Beryllium Copper Strip:

1) Grade: C17200, C1720, C17000, C17300, C17500, C17510,
Qbe2, Qbe1.9, Qbe1.7,  Qbe0.6-2.5,  Qbe0.4-1.8,  Qbe0.3-1.5,  Qbe1.9-0.1
2) Shape: coil or sheet
3) Thickness: 0.12mm - 2.0 mm
4) Width: 10mm - 400 mm
5) Coil weight: Complete Customization as Your Request
6) Temper: TB00, TD01-04, TF00, TH01-04, TM00-08, or according to requirements

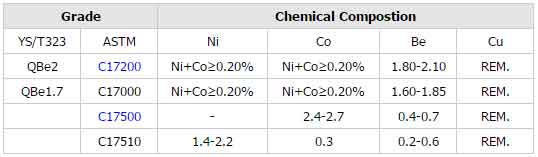

Properties of Copper Beryllium Strip/Beryllium Copper Strip:



Features of Copper Beryllium Strip/Beryllium Copper Strip:

1) High strength
2) Fatigue resistance
3) High electricity conductivity
4) Impact spark-less
5) Wearable
6) Non-magnetic

Parameters of Copper Beryllium Strip/Beryllium Copper Strip:



Tolerances on Width of Copper Beryllium Strip:

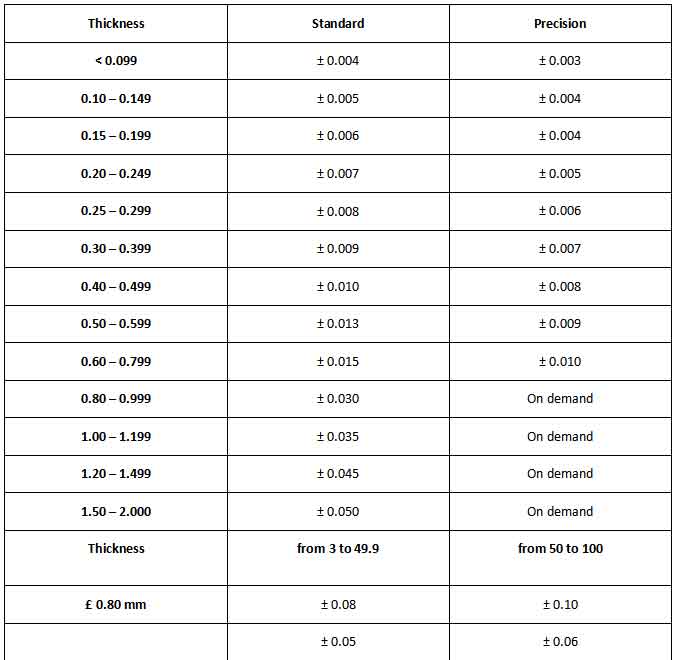

Tolerances on Thickness of Copper Beryllium Strip:

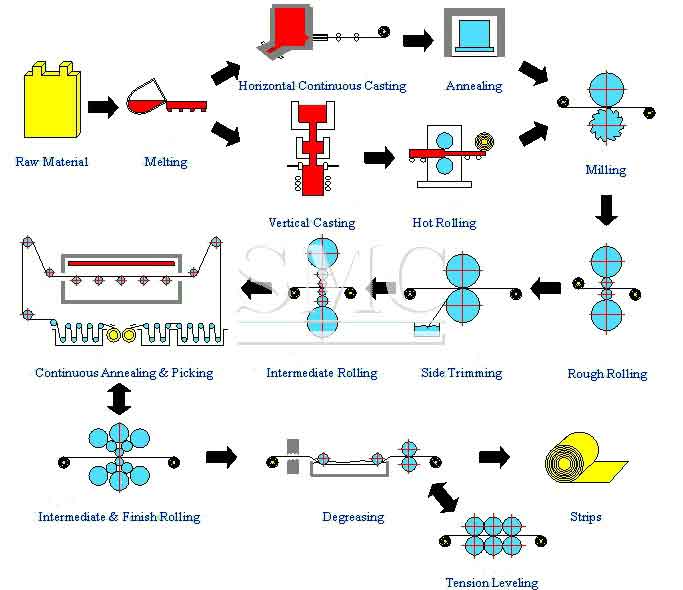

Manufacturing of Copper Beryllium Strip/Beryllium Copper Strip

Packaging of Copper Beryllium Strip/Beryllium Copper Strip

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization



Applications of Copper Beryllium Strip/Beryllium Copper Strip:

1) Coppe Beryllium Strip for Automotive

2) Coppe Beryllium Strip for Aerospace

3) Coppe Beryllium Strip for Electrical & electronic

4) Coppe Beryllium Strip for Telecommunication

5) Coppe Beryllium Strip for Home appliance

6) Coppe Beryllium Strip for Nuclear energy

7) Coppe Beryllium Strip for Watch making

8) Coppe Beryllium Strip for Medical



Advantages of Copper Beryllium Strip/Beryllium Copper Strip:

1) High strength

2) High fatigue life

3) Good conductivity

4) Good performance

5) Corrosion resistance

6) Stress relaxation

7) Wear & abrasion resistance

8) Non- magnetic

9) Non-sparking
