Standard: AISI, GB, JIS, EN, etc.

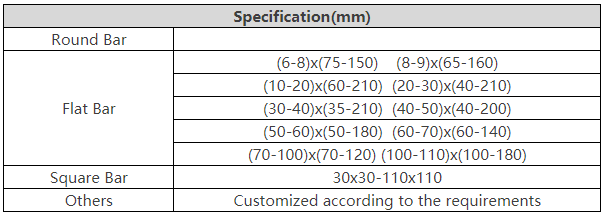

Shapes: Round Bar, Flat Bar, Square Bar, etc.

Diameter: 3mm-300mm

Product Detail | Technical Information | Packaging | More

Product Detail

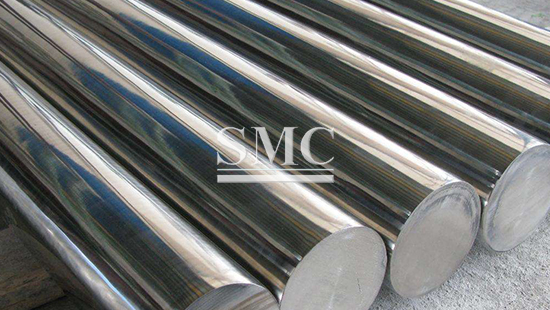

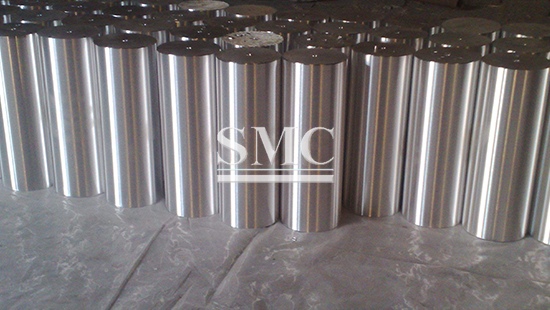

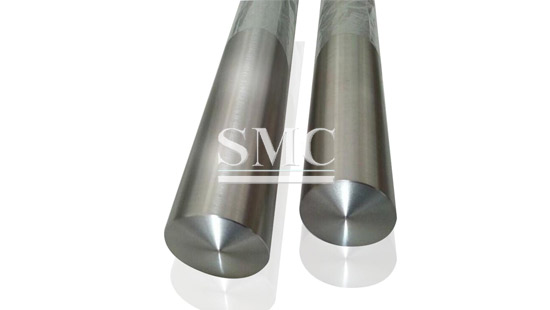

Chromium molybdenum steel is an alloy of chromium (Cr), molybdenum (Mo), iron (Fe), and carbon (C).

Chromium-molybdenum steel, also known as medium-temperature anti-hydrogen steel, refers to steel grades such as Cr (<10%), Mo and other alloying elements to significantly improve the high temperature strength limit and creep limit, and has good resistance to hydrogen corrosion and high temperature.

Performance, so it is widely used in hydrogen-containing equipment and high-temperature equipment such as refining and chemical industry. It is one of the commonly used steel grades for pressure vessels.

Shanghai Metal Corporation is a professional manufacturer and supplier of CrMo Steel Bar with high quality and reasonable price. If you want to know more about CrMo Steel Bar products or CrMo Steel Bar price please feel free to contact us, we will reply you within 24 hours. Shanghai Metal Corporation supply a wide range of quality alloy steel, such as 20 CrMo, 30 CrMo, 35CrMo,40Cr and 42CrMo which are highly acclaimed by our international customers due to its durability and similar other attributes. These products are offered to our clients in standard.

- High fatigue resistance

- Good plasticity in cold condition

- High quality with competitive price

- Good combination property

Boiler
Motor rotator
Connection rod
Large gear and gear
Large diameter shaft
Driven gear of booster
Salvage tools for ocean oil drilling

Mechanical Properties:

Steel grade	Tensile Strength(σb/Mpa)	Yield Strength(σb/Mpa)	Elongation(ŏ5/%)	Reduction of Area(ψ/%)	Impact absorbing Energy(Aku2/J)	Brinell Hardness(HBS100/3000)
Steel grade	Tensile Strength(σb/Mpa)	Yield Strength(σb/Mpa)	Elongation(ŏ5/%)	Reduction of Area(ψ/%)	Impact absorbing Energy(Aku2/J)	Annealing or High Tempering
20CrMo	885	685	12	50	78	197
30CrMo	930	785	12	50	63	229
35CrMo	980	835	12	45	63	229
40CrMo	1080	930	12	45	63	217
42CrMo	1080	930	12	45	63	217

Chemical composition

Unified digital code	Steel grade	C	Si	Mn	Cr	Mo
A30202	20CrMo	0.17-0.24	0.17-0.37	0.40-0.70	0.80-1.10	0.15-0.25
A30302	30CrMo	0.26-0.34	0.17-0.37	0.40-0.70	0.80-1.10	0.15-0.25
A30352	35CrMo	0.32-0.40	0.17-0.37	0.40-0.70	0.80-1.10	0.15-0.25
-	40CrMo	0.35-0.45	0.15-0.40	0.40-0.70	1.00-1.50	0.50-0.80
A30422	42CrMo	0.38-0.45	0.17-0.37	0.50-0.80	0.90-1.20	0.15-0.25

Specification of 40Cr Alloy Steel:
1) Chemical composition:

Grade	Chemical compostion(WT%)
40Cr	C	Cr	Si	Mn	Ni	P	S	Cu
40Cr	0.37-0.44	0.80-1.10	0.17-0.37	0.50-0.80	≤0.030	≤0.035	≤0.035	≤0.030

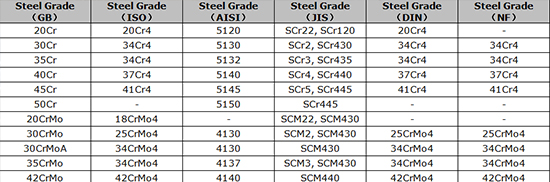

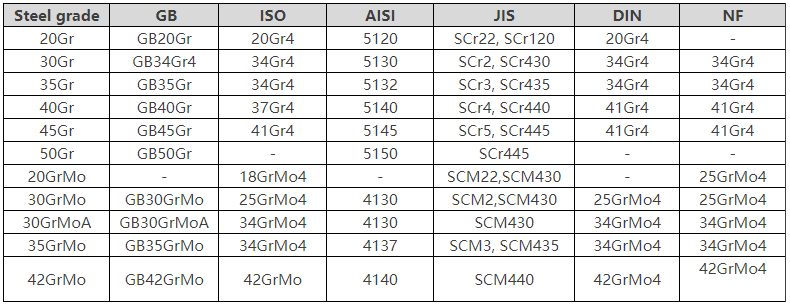

2) The comparison table for each standard

GB	ISO	AISI	JIS	DIN
GB/T 3077-1999	683-18:1996	A322 G5140	SCr440	41Cr4
GB/T 3077-1999

Packaging of CrMo Steel Bar:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Application of CrMo Steel:

- Boiler

- Motor rotator

- Connection rod

- Large gear and gear

- Large diameter shaft

- Driven gear of booster

- Salvage tools for ocean oil drilling
