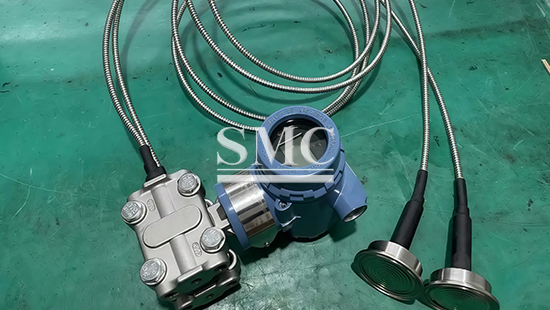

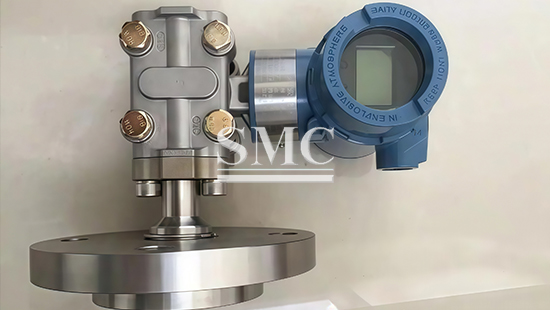

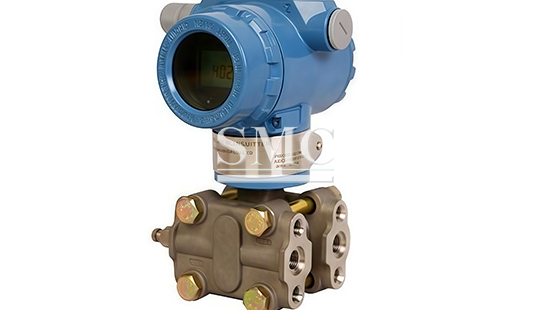

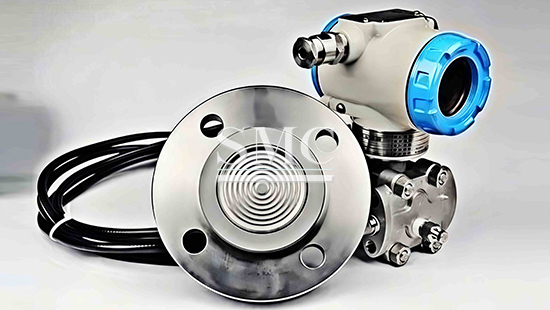

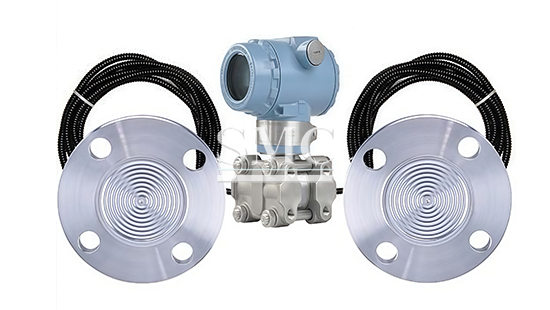

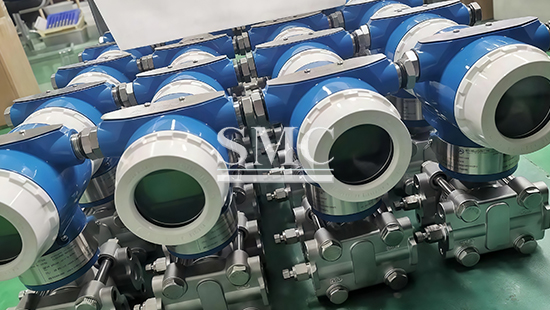

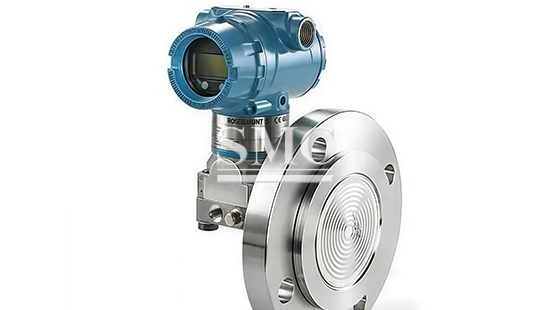

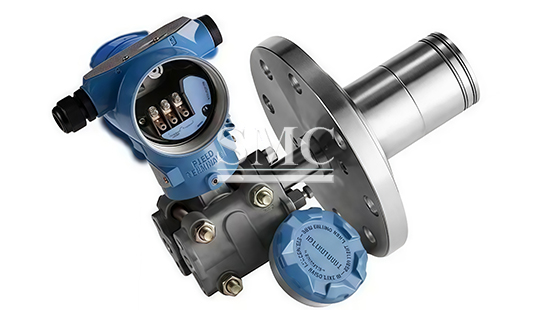

Differential Pressure/ Level Transmitter
Model: YC-3051, YC-3051D, YC-3051S
Material: stainless steel 316L, alloy
Pressure: 40MPa
Work temperature: -20℃ - 85℃
Shanghai Metal Corporation is a professional manufacturer and supplier of Differential Pressure/ Level Transmitter with high quality and reasonable price.
The liquid level transmitter is an extension and development of the pressure transmitter technology. Based on the principle that the pressures generated by liquids of different specific gravities at different heights are in a linear relationship, it can accurately measure and transmit the volume, liquid height and weight of water, oil and paste.It has the functions of bolt tightening and disassembling, and can be widely used in metallurgy, mining, petrochemical industry, shipbuilding industry, locomotive manufacturing and other industries.
Differential pressure/level transmitters are commonly used in industry. If you want to know more about Differential Pressure/ Level Transmitter price please feel free to contact us, we will reply you within 24 hours
Technical Information of Differential Pressure/ Level Transmitter:
|
Technical |
|
|
Measuring range |
-0.5MPa~2.5MPa~-10MPa |
|
Operating voltage |
24V DC,12-30VDC |
|
Accuracy level |
±0.075%FS,±0.1%FS,±0.25%FS，0.5%FS |
|
Output signal |
4~20mA,4-20mA+HART,RS485,Customizable |
|
Allowable overvoltage |
1.5 times full scale pressure |
|
Electrical Connections |
M20*1.5,1/2NPT,Customizable |
|
Protection level |
IP65,IP67 |
|
Process connection |
1.5"Clamp,DN50Flange,DN80Flange,Customizable |
|
Temperature drift |
<±0.02%FS/℃ |
|
Operating temperature |
-20~85℃ |
|
Medium temperature |
-30~150℃ |
|
Compensation temperature |
-20~70℃ |
|
Storage temperature |
-40~100℃ |
|
Explosion-proof grade |
CT4/CT6 |
|
Diaphragm material |
316L,Hastelloy，Customizable |

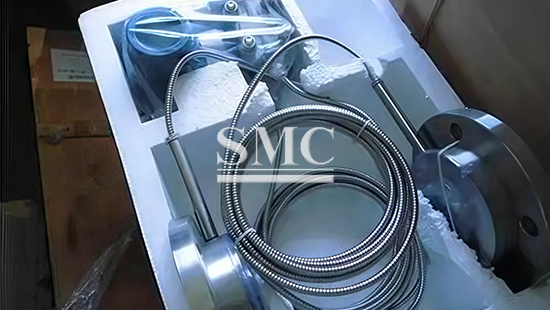

Packaging of Differential Pressure/ Level Transmitter:
Fill the carton with cushioning material for packaging
