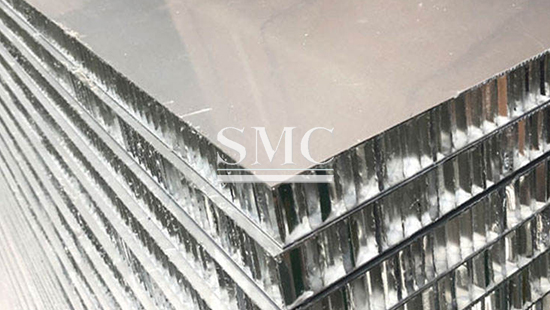

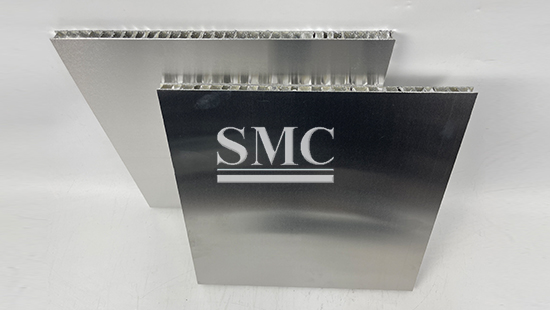

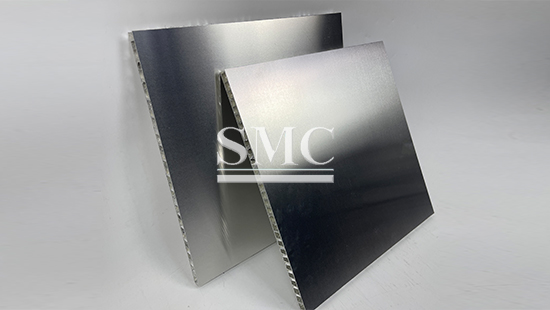

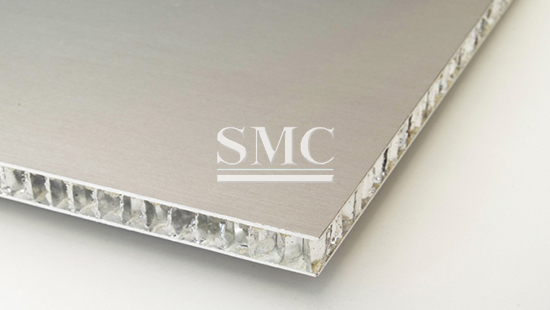

Electric Conductive Aluminum Honeycomb Panel
Standard thickness: 6/9/10/12/15/18mm
Material: Aluminum 3003, 5052, etc.
Aluminum foil thickness: 0.03-0.20mm
Core size: 1/30” to 1”
Shanghai Metal Corporation is a leading Electric Conductive Aluminum Honeycomb Panel manufacturer and supplier.
SMC focuses on the development of special function honeycomb aluminum plate, conductive honeycomb aluminum plate adopts advanced conductive adhesive process, so that the composite honeycomb aluminum plate has good electric conductive properties, avoiding the problem of poor electrical conductivity caused by traditional glue adhesive layer.
If you want to know more about our Electric Conductive Aluminum Honeycomb Panel price or other honeycomb panel price please feel free to contact us, we will reply you within 24 hours.
-

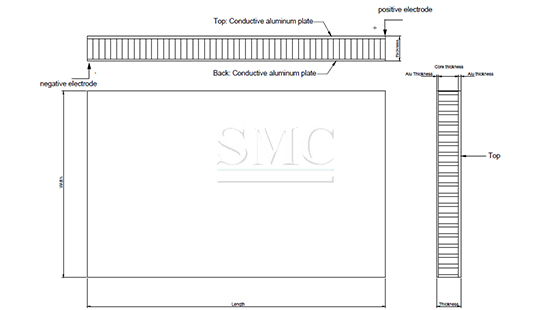

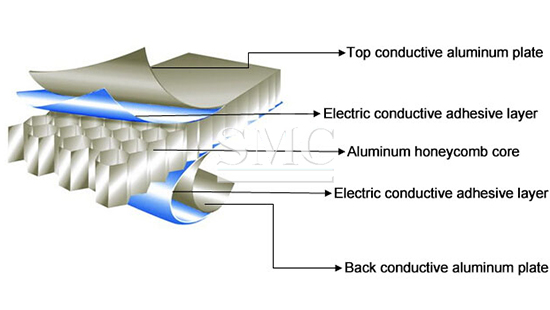

Front/Back panel
0.3-2.0 mm conductive aluminum plate
Adhesive
Conductive adhesive layer
Honeycomb core
Cell size: 1/30” to 1”;
Aluminum foil: 0.03-0.2mm thickness
Specification
Standard size
1200x2440mm, 1220x3000mm
Standard thickness
6mm, 9mm, 10mm，12mm,15mm，18mm， 20mm, 25mm
-
|
Micro-cellsize |
|||||||
|
aluminum alloy |
3003 |
3003/5052 |
|||||
|
Cell size |
0.86 |
1.04 |
1.73 |
2.6 |
3.17 |
3.47 |
5.2 |
|
|
|
|
|
|
|
|
|
|
Foil thickness |
0.03 |
0.03 |
0.04 |
0.04 / 0.05 / 0.06 / 0.07 / 0.08 / 0.1/ 0.2 |
|||
|
Maximum dimension |
300*300 |
300*300 |
1000*1000 |
1200*1200 |
1500*1500 |
2000*1600 |
2000*1700 |
|
Application |
lighting，purification ,ventilator filter,photography,laser bed |
||||||
Regular cell size
|
aluminum alloy |
3003/5052 |
||||||
|
Cell size
|
6.5 |
8.47 |
9.53 |
12.7 |
19.05 |
25.9 |
customized |
|
|
|
|
|
|
|
||
|
Foil thickness |
0.04 / 0.05 / 0.06 / 0.07 / 0.8 / 0.1 |
||||||
|
Maximum dimension |
8000*1700 |
||||||
|
Application |
aerospace and defense sagment, architecture, furniture, yacht, sandwich panels |
||||||
|
Factory standard and certification |
||
|
Tolerance |
Foil thickness |
±0.002mm |
|
Density |
±10% |
|
|
Cellsize |
±10% |
|
|
Expanded width |
0/+30mm |
|
|
Expanded length |
0/+50mm |
|
|
Temperature applied: |
-55℃ to 175℃ |
|
|
Standard: |
China Aviation Industry Standard HB5443-90 |
|
|
Certificate of Compliance |
Rohs |
|
|
Smoke& toxicity tests |
DIN 5510-2:2009 & DIN 54837:2007 |
|
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
