Full Hard Galvalume uses cold rolled steel sheets with various strengths and thicknesses as raw materials and are coated with
aluminum, zinc and silicon alloy. It possesses excellent anti-corrosion properties, which has been widely used as the roofing
materials, with yield strength as much as 550MPa, surface hardness varies from HV 150 to170. As leading manufacturer of full hard
galvalume steel in China, SMC can provide coated steel sheets that are widely used in the production lines of white goods and black
appliances, such as building materials, decorative materials, refrigerators, washing machines, air conditioner, digital video,
computers, audio equipment, etc.
Specifications of Full Hard Galvalume Steel Coil:
1) Capacity: over 15,000 ton per month for galvalume steel
2) Standard: AISI, ASTM, BS, DIN, GB, JIS
3) Thickness: 0.13mm - 1.0mm, all available
4) Width: 750mm - 1250mm, all available
5) Length: according to the customer's request
6) Coil ID: 508/610mm
7) Coil weight: according to the customer's request
8) Coating Weight: AZ50 to AZ150
9) Spangle: regular spangle, small spangle, big spangle

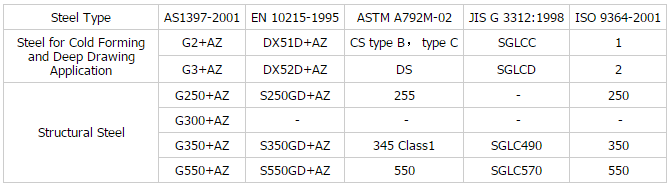

10) Steel Type & Grade:

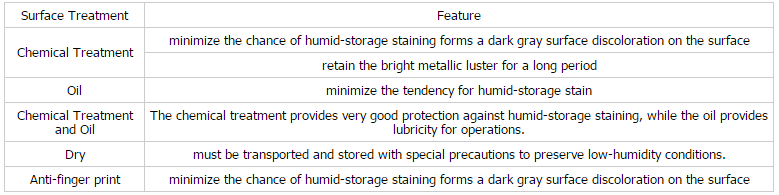

11) Surface Treatment:
Features of Full Hard Galvalume Steel Coil:
1) Composed of 55% aluminum, 43.5% zinc and 1.5% silicon
2) Formable, weldable and paintable
3) Superior corrosion resistance in the most atmospheric conditions. This is achieved through the combination of the sacrificial protection of the zinc and the barrier protection of the aluminum.
4) Coating out-performs galvanized coating from 2-6 times than hot dip galvanized steel
Packaging of Full Hard Galvalume Steel Coil
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
Applications of Full Hard Galvalume Steel Coil:
1) Infrastructure: Roofing, External Siding, Garage, Shutter
2) Household Appliances: Oven, Air-Conditioning Ventilation System, Solar Water Heater, Electronics
3) Automobile: Mobile Muffler, Vent Pipe, Catalysis Converter Heater Shield, Bottom Accessories
4) Industrial Instrument: Electric Control Cabinet, Industrial Freezer Chest, Dispenser
5) Others include Guardrails, Ventilation Ducts, Gutters and Down Spouts, Pre-paint and Post Paint Applications, Gutters and Ceiling Suspension Bars, Shutter Door Rails, Vending Machines, Washing Machines, Showcases, etc.
