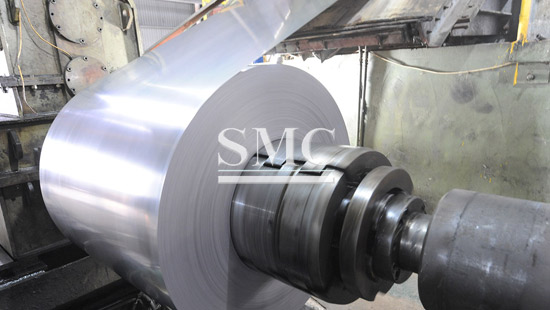

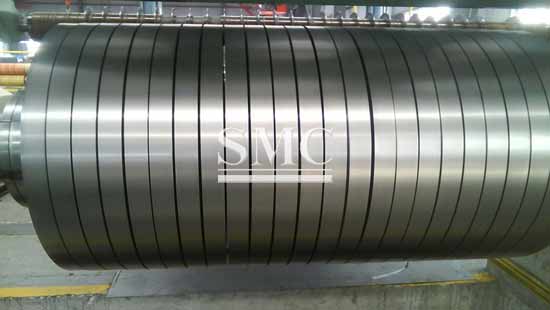

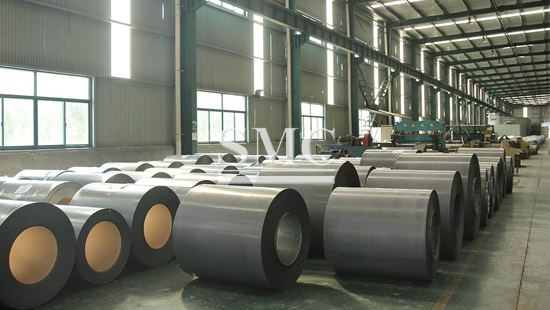

Grain Oriented Silicon Steel - CRGO - Cold Rolled Grain Oriented Steel
Thickness: 0.23-0.35mm
Width: 600-1200mm
ID: 508mm
Shanghai Metal Corporation is a high-tech enterprise for electrical steel products, we are highly engaged in all kinds of electrical steel, and the products are widely used in home appliances, cars, generators, frequency conversion electric vehicles, transformers, housing construction and other industries.
If you want to know more about our products, please feel free to contact us, we will reply you within 24 hours.

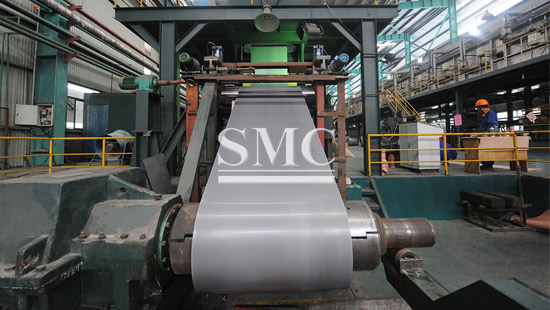

Grain oriented electrical steel is an
important material in the production of energy efficient transformers and
large, high performance generators. In the form of laminated, wound or punched
sheets,
it is the essential core material of distribution transformers, power
transformers and small transformers.
Type
Grade
Thickness
Density (kg/dm3)
P17/50 Max. Core loss (W/kg)
B8 Min. Induction (T)
(mm)
Conventional G type
B23G110
0.23
7.65
1.1
1.8
B27G120
0.27
7.65
1.2
1.8
B30G120
0.3
7.65
1.2
1.8
B30G130
1.3
1.8
B30G140
1.4
1.8
B35G135
0.35
7.65
1.35
1.8
B35G145
1.45
1.8
B35G155
1.55
1.8
High induction P type
B23P085
0.23
7.65
0.85
1.87
B23P090
0.9
1.87
B23P095
0.95
1.87
B27P090
0.27
7.65
0.9
1.88
B27P095
0.95
1.88
B27P100
1
1.88
B30P095
0.3
7.65
0.95
1.88
B30P100
1
1.88
B30P105
1.05
1.88
B30P120
1.2
1.88
B35P115
0.35
7.65
1.15
1.88
B35P125
1.25
1.88
B35P135
1.35
1.88
Domain refined high induction R type
B23R080
0.23
7.65
0.8
1.87
B23R085
0.85
1.87
B23R090
0.9
1.87
B27R085
0.27
7.65
0.85
1.87
B27R090
0.9
1.87
B27R095
0.95
1.87
Reference table of Chinese and Foreign Standard:
|
Thickness mm |
GB/T2521-1996 |
JIS C2553-86 |
DIN 46400P.3 |
AISI(1983) |
GOST21427.1 |
|||||
|
Designation |
Pl.7/50 W/kg |
Designation |
Pl.7/50 W/kg |
Designation |
P1.7/50 w/kg |
Designation |
P1.7/50 w/kg |
Designation |
P1.7/50 w/kg |
|
|
0.27 |
27Q140 |
1.4 |
27G140 |
1.4 |
VM-89-27N |
1.4 |
|
|
3405- 0.27 |
1.38 |
|
27Q130 |
1.3 |
27G130 |
1.3 |
VM-130-278 |
1.3 |
M4-0.27 |
1.27 |
3406- 0.27 |
1.27 |
|
|
27Q120 |
1.2 |
27G120 |
1.2 |
|
|
M3-0.27 |
1.21 |
3407- 0.27 |
1.2 |
|
|
27QG110 |
1.1 |
27PU0 |
1.1 |
|
|
M1H-0.27 |
1.09 |
3408- 0.27 |
1.14 |
|
|
27QG100 |
1 |
27P100 |
1 |
|
|
M0H-0.27 |
1.03 |
3409- 0.27 |
1.08 |
|
|
0.3 |
30Q150 |
1.5 |
30G150 |
1.5 |
|
|
|
|
|
|
|
30Q140 |
1.4 |
30G140 |
1.4 |
M5-0.3 |
1.39 |
3404-0.30 |
1.5 |
|||
|
30Q130 |
1.3 |
30G130 |
1.3 |
VM117-30P |
1.17 |
M4-0.3 |
1.32 |
3405-0.30 |
1.4 |
|
|
30QG130 |
1.3 |
30G120 |
1.2 |
VM1U-30P |
1.11 |
M3-0.3 |
1.23 |
3406-0.30 |
1.33 |
|
|
30QG120 |
1.2 |
30P110 |
1.1 |
|
|
M2H-0.3 |
1.17 |
3407-0.30 |
1.25 |
|
|
30QG110 |
1.1 |
|
|
M1H-0.3 |
1.11 |
3408-0.30 |
1.2 |
|||
|
|
|
|
|
|
|
M0H-0.3 |
1.05 |
3409-0.30 |
1.14 |
|
|
0.35 |
|
|
35G165 |
1.65 |
|
|
|
|
|
|
|
35Q155 |
1.55 |
35G155 |
1.55 |
|
|
M6-0.35 |
1.57 |
3404-0.35 |
1.6 |
|
|
35Q145 |
1.45 |
35G145 |
1.45 |
|
|
M5-0.35 |
1.45 |
3405-0.35 |
1.5 |
|
|
35Q135 |
1.35 |
35P135 |
1.35 |
|
|
M3H-0.35 |
1.28 |
3406-0.35 |
1.43 |
|
|
35QG135 |
1.35 |
35P125 |
1.25 |
|
|
M2H-0.35 |
1.22 |
3407-0.35 |
1.36 |
|
|
35QG125 |
1.25 |
|
|
|
|
M1H-0.35 |
1.16 |
3408-0.35 |
1.3 |
|
|
|
|
|
|
|
|
|
|
3409-0.35 |
1.24 |
|

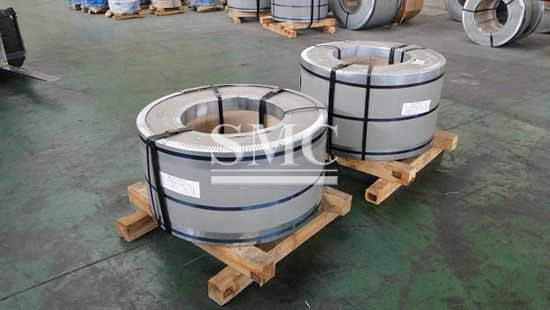

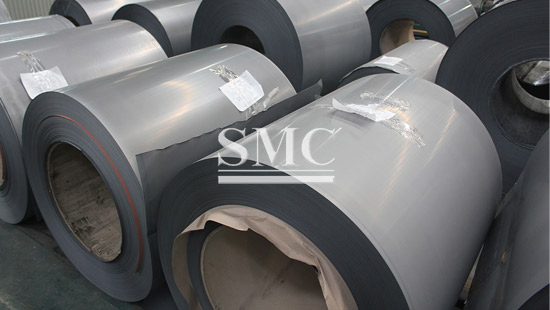

Packing of Oriented Silicon Steel:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Applications of Oriented Silicon Steel:
1. Large power transformer
2. Medium & small power transformer
3. Distribution transformer
4. Reactor & magnetic amplifier
5. Audio transformer
6. Current & potential transformer
7. Ballast
8. Welding transformer
9. Magnetic switch core
