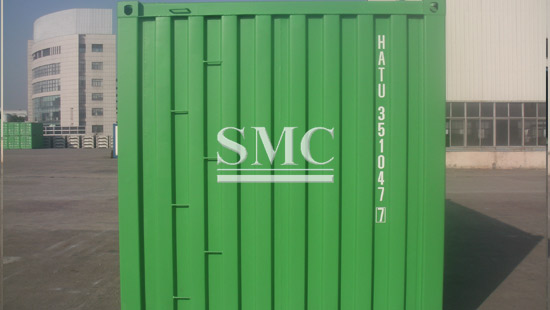

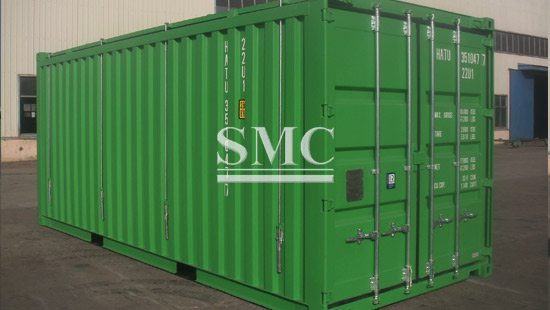

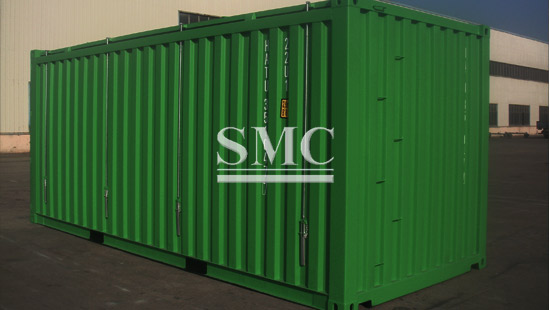

Hard Open Top Container
Heavy loads
High, and excessively high loads
Loading, e. g. by crane, through roof opening and door side.
-

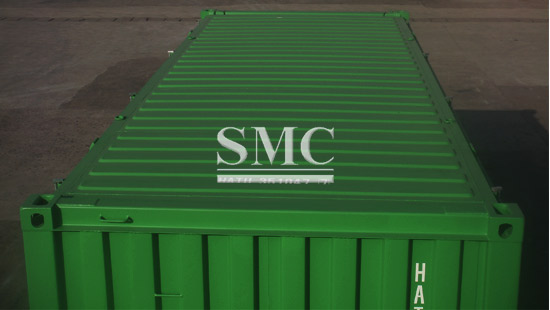

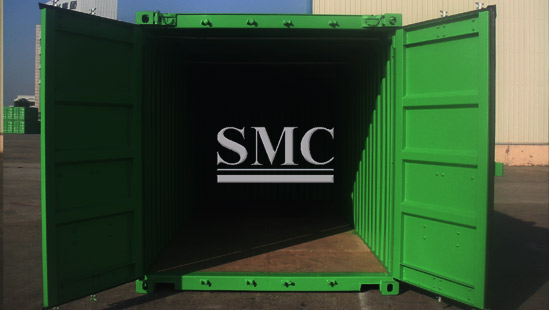

With the roof removed and the doorheader swung out, it is much easier to load cargo using a crane via the door side. The steel roof of most series is fitted with fork-lift rings so that it can be removed by using a forklift. The weight of the steel roof is approx. 450 kg (990 lbs). In case your cargo has overheight the roof sections can be lashed to a sidewall inside the container using only some 13 cm (51/8) of space.
-
-
-
If required, we can provide disposable tarpaulins for the transport which can be fastened to the walls on the outside using lashing devices. The hard open top container provides many lashing devices to fasten your goods. The lashing devices on the corner posts and on the longtudinal rails of the roof and floor are capable of bearing loads of up to 2,000 kg (4,410 lbs) each, and those in the middle of the side walls up to 500 kg (1,100 lbs) each. Lashing to the side walls can only be done after the roof has been closed.
Dimensions and Capacities of Hard Open Top Container:
|
|
20'GP Hard Open Top Container |
||
|
Dimension |
Millimeter |
Feet |
|
|
External |
Length |
6,058 |
20' |
|
Width |
2,438 |
8' |
|
|
Height |
2,591 |
8'-6'' |
|
|
Internal |
Length |
5,887 |
19'-3 13/16'' |
|
Width |
2,346 |
7'-8 3/8'' |
|
|
Height |
2,390 |
7'-10 3/32'' |
|
|
Rear Door |
Width |
2,227 |
7'-3 43/64'' |
|
Height |
2,115 |
6'-11 17/64'' |
|
|
Weight |
Kilogram |
Pound |
|
|
Max Gross Weight |
32,500 |
71,650 |
|
|
Tare Weight |
2,850 |
6,283 |
|
|
Maximum Payload |
29,650 |
65,366 |
|
|
Internal Capacity |
Cube Meter |
Cube Feet |
|
|
32 |
1,123 |
||
|
Allowable Stacking Weight（1.8G） |
86,400 |
190,480 |
|
|
|
40'GP Hard Open Top Container |
||
|
Dimension |
Millimeter |
Feet |
|
|
External |
Length |
12,192 |
40' |
|
Width |
2,438 |
8' |
|
|
Height |
2,591 |
8'-6'' |
|
|
Internal |
Length |
12,020 |
39'-5 1/4'' |
|
Width |
2,342 |
7'-8 1/8'' |
|
|
Height |
2,388 |
7'-10'' |
|
|
Rear Door |
Width |
2,227 |
7'-3 43/64'' |
|
Height |
2,115 |
6'-11 17/64'' |
|
|
Weight |
Kilogram |
Pound |
|
|
Max Gross Weight |
30,480 |
67,200 |
|
|
Tare Weight |
4,700 |
10,360 |
|
|
Maximum Payload |
25,780 |
56,840 |
|
|
Internal Capacity |
Cube Meter |
Cube Feet |
|
|
67.2 |
2,374 |
||
|
Allowable Stacking Weight（1.8G） |
86,400 |
190,480 |
|
|
|
40'HC Hard Open Top Container |
||
|
Dimension |
Millimeter |
Feet |
|
|
External |
Length |
12,192 |
40' |
|
Width |
2,438 |
8' |
|
|
Height |
2,896 |
9'-6'' |
|
|
Internal |
Length |
12,020 |
39'-5 1/4'' |
|
Width |
2,342 |
7'-8 1/8'' |
|
|
Height |
2,693 |
8'10'' |
|
|
Rear Door |
Width |
2,340 |
7'7'' |
|
Height |
2,280 |
7'5'' |
|
|
Weight |
Kilogram |
Pound |
|
|
Max Gross Weight |
30,480 |
67,200 |
|
|
Tare Weight |
4,900 |
10,803 |
|
|
Maximum Payload |
25,580 |
56,394 |
|
|
Internal Capacity |
Cube Meter |
Cube Feet |
|
|
75.8 |
2,677 |
||
|
Allowable Stacking Weight（1.8G） |
86,400 |
190,480 |
|
