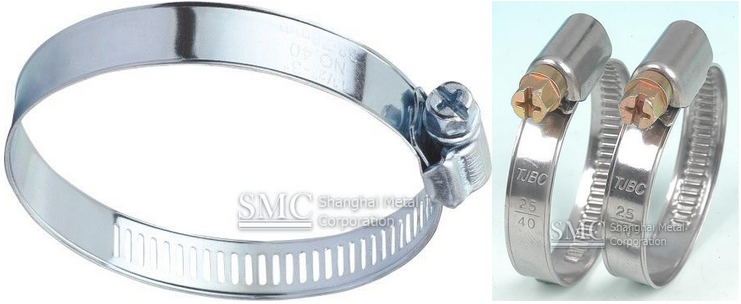

Hose Clamp
Material: stainless steel
Standard: SAE J1508
Type: American, Germany, British
-
Specification of Hose Clamp: 1. Standard: SAE 2. Material: stainless steel or Zinc Plated Steel 3. Type: American, Germany, British clamp 4. Width of the band: 8mm-12.7mm
5. Thickness: 0.6-0.8mm 6. Clamping Range: 6mm-311mm 7. Surface: Polished or Zinc-plated 8. Package: Plastic bags - inner box - outer carton or as client's request
-

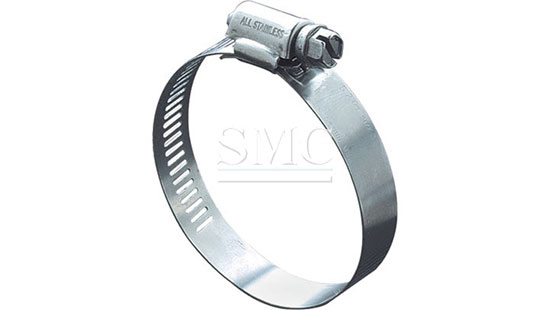

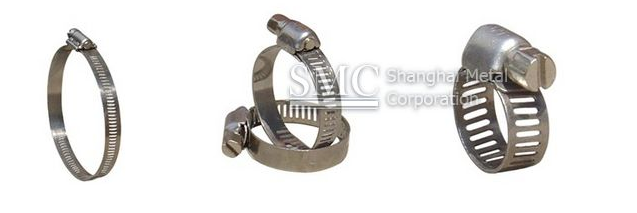

American Type Hose Clamp
W1: Band, housing & screw, all zinc plated carbon steel
W2: Band and housing with 300 series of stainless steel, screw is zinc plated steel
W4: All parts are AISI 300 series Stainless Steel
Germany Type Hose Clamp
Band width: 9mm & 12mm
Band thickness: 0.6mm~0.8mm
W1: All parts steel are zinc plated steel.
W2: Band & hosing are stainless steel, the screw is zinc plated steel.
W3: The screw is 410, others are 430ss/200ss or other kinds of stainless steel
W4: All parts are 301/304 stainless steel.
W5: All 316 stainless steel

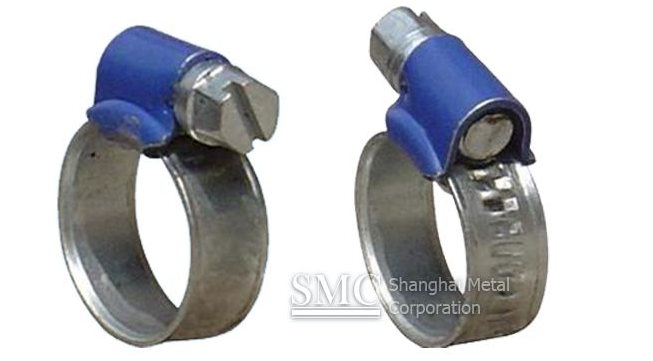

British Type Hose Clamp
W1: All parts steel are zinc plated steel.
W2: Band & hosing are stainless steel, the screw is zinc plated steel.
W3: The screw is 410, others are 430ss/200ss or other kinds of stainless steel
W4: All parts are 301/304 stainless steel.
Package of Stainless Steel Pipe Fitting:
The stainless steel pipe fitting products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.
Application of Hose Clamp:
Hose clamps are typically limited to moderate pressures, such as those found in automotive and home applications. At high pressures, especially with large hose sizes, the clamp would have to be unwieldy to be able to withstand the forces expanding it without allowing the hose to slide off the barb or a leak to form. For these high pressure applications, compression fittings, thick crimp fittings, or other designs are normally used. Used in automobiles, tractors, ships, gasoline, engine, each kind of mechanical device for oil, gas, hydraulic hose connector.
