Specifications of Hot Dip Galvanized Steel Coil:
1) Capacity: about 15000 tons per month for the steel sheet and coil product
2) Grade: SGHC, SGCC, DX51D, Q195, all according to the customer's request
3) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request
4) Thickness: from 0.12mm to 5.0mm, all available
5) Width: from 600mm to 1500mm, all available
6) Coil ID: 508mm/610mm
7) Coil weight: from 2MT - 10MT, according to the customer's request
8) Zinc coating weight: 30g/m² - 600g/m², double side
9) Spangle: big spangle, regular spangle, small spangle, zero spangle
10) Surface treatment: Chromated, oils, passivating + oils
11) Edge: mill edge, cut edge
12) Min. trial order 10 ton each thickness, 1x20' per delivery

13) Surface Treatment of Hot Dip Galvanized Steel Coil:

14) Spangle of Hot Dip Galvanized Steel Coil:

15) Features: Hot dip galvanized steel features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending. It is also Environmental Friendly resource because of its longevity in corrosion protection, low environmental cost, and 100% recyclability.
16)  Product qualities:
a) CQ - Commercial Quality steel for structural applications
b) SQ - Structural Quality steel for applications that need more draw ability
c) LFQ - Lock Forming Quality
d) DQ - Drawing Quality
e) DDQ - Deep Drawing Quality

※Other Grade: S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z

※Thickness: from 0.25mm to 3.0mm, all available

※Width: to 1300mm, all available

Packaging of Hot Dip Galvanized Steel Coil

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Hot Dip Galvanized Steel Coil:

1) Construction and building: roofing, ventilating duct, handrail, partition panel, etc.

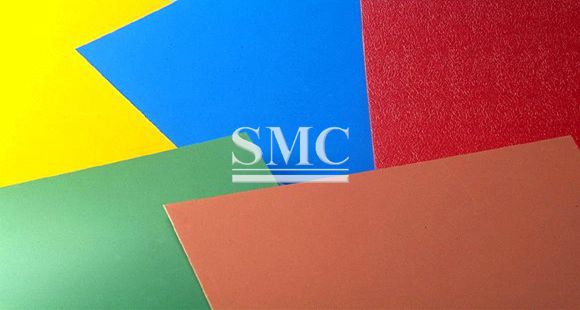

2) Further processing: coating base plate

3) Electric appliance: Refrigerator, washing machine, recorder, microwave, etc.

What is Galvanized Steel?

There are two typical galvanizing ways to obtain a zinc coating: hot dip galvanizing and electrogalvanizing. Hot dip galvanizing is the process that steel is immersed into molten zinc bath to get a zinc coating surface. This not only helps protect steel from rust and corrosion, but also gives the steel a shiny attractive appearance. Electrogalvanizing is the process that uses electrolysis to coat the steel with zinc, which is neither cost-effective nor environmentally friendly. It is hardly to find electrogalvanized steel in our lives nowadays.

What are the advantages of Galvanized Steel?

Because of permanently and successive zinc/iron alloy layers, galvanized steel offers many benefits:

1) Corrosion Resistance: the zinc coating surface protects the base steel not only by providing barrier to corrosion elements, but also by the sacrificial nature of the coating. Galvanized steel often remains in working order with little maintenance for 40 years or more.

2) Excellent Surface Appearance

3) Formability: it can be simply bend to parts with deep drawing requirements

4) Paintability: it can be painted with different colors

5) Weldability: it is accepted various welding practices

What are the disadvantages of Galvanized Steel?

In spite of many benefits, galvanized steel is not always an ideal choice. Galvanized steel cannot be used underground without being properly covered, which can be inconvenient for many jobs.

Where do we use Galvanized Steel?

It is primarily used in the construction industry, such as roofing, wall cladding, and support beams. It is also used in the automotive industry, due to its enhanced paintability, weldability and corrosion resistance. Moreover, it is an essential material for white goods application, such as refrigerators, air-conditioners, washers, microwaves, vending machines and audio visual systems.
