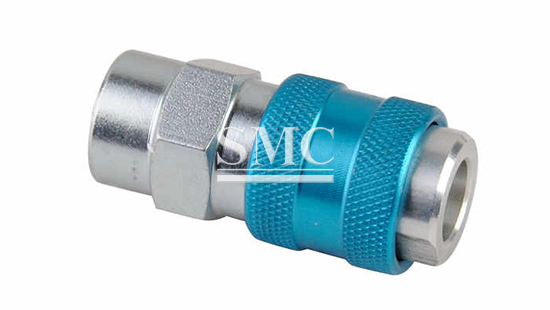

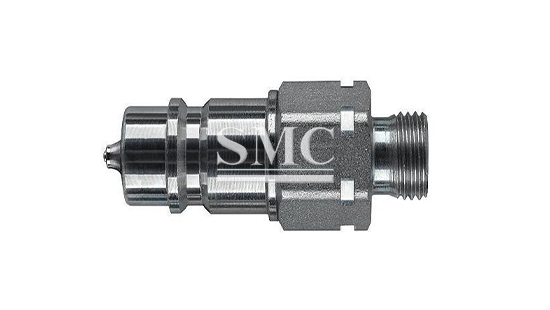

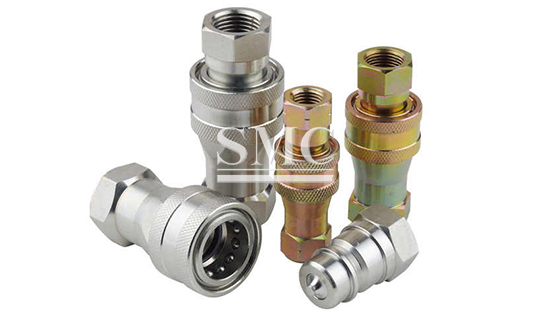

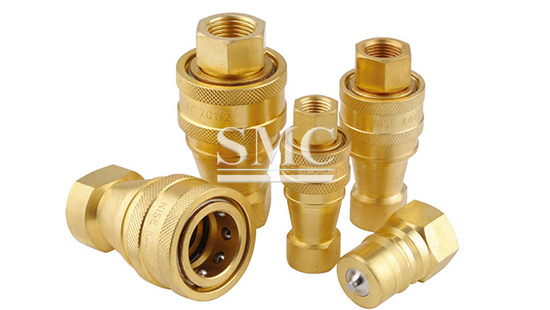

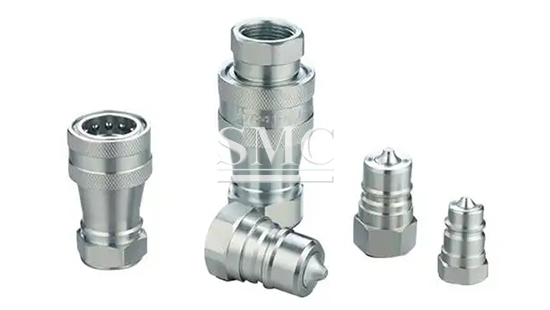

Hydraulic Coupling
Material: Carbon Steel, Stainless Steel, Brass, Aluminum Alloy, etc.
Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 2'', etc.
Rated Pressure(PSI): 5000, 4000, 4000, 3000, 3000, etc.
Shanghai Metal Corporation is a professional manufacturer and supplier of Hydraulic Coupling with high quality and reasonable price.
Shanghai Metal Corporation has a professional team of skilled technicians and experts, imported foreign advanced production and test equipment, mainly manufacture different kinds of Hydraulic Couplings, any sizes, material and surface condition could be customized.
If you want to know more about Hydraulic Coupling price please feel free to contact us, we will reply you within 24 hours

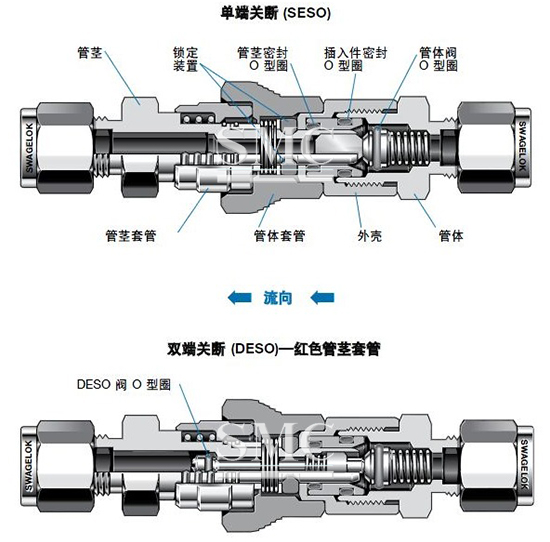

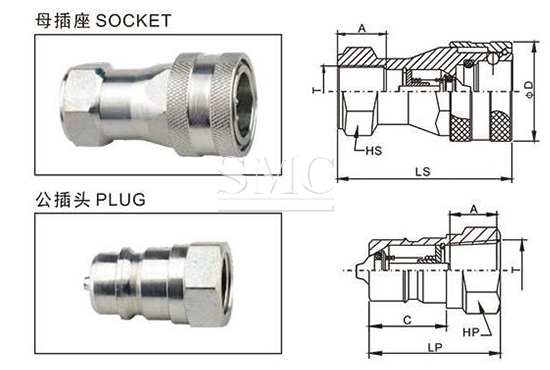

Technical Information of Hydraulic Coupling:
|
Part No. |
LS |
φD |
HS |
A |
T |
|
H005-02SF |
50 |
26 |
19*6° |
13 |
G1/4 NPT1/4 |
|
H005-03SF |
60 |
31.5 |
22*6° |
14 |
G3/8 NPT3/8 |
|
H005-04SF |
68 |
39 |
27*6° |
16 |
G1/2 NPT1/2 |
|
H005-06SF |
80 |
48 |
34*6° |
18 |
G3/4 NPT3/4 |
|
H005-08SF |
99.5 |
53 |
41*6° |
21 |
G1 NPT1 |
|
H005-10SF |
112 |
69 |
50*6° |
25 |
G1-1/4NPT1-1/4 |
|
H005-12SF |
127.5 |
84.5 |
60*6° |
25.5 |
G1-1/2 NPT1-1/2 |
|
H005-16SF |
158 |
99 |
75*6° |
26 |
G2 NPT2 |
|
Part No. |
LP |
C |
HP |
A |
T |
|
H005-02PF |
35.5 |
15 |
19*6° |
13 |
G1/4 NPT1/4 |
|
H005-03PF |
42 |
26.5 |
22*6° |
14 |
G3/8 NPT3/8 |
|
H005-04PF |
46 |
26.5 |
27*6° |
16 |
G1/2 NPT1/2 |
|
H005-06PF |
54 |
28 |
34*6° |
18 |
G3/4 NPT3/4 |
|
H005-08PF |
65.5 |
35 |
41*6° |
21 |
G1 NPT1 |
|
H005-10PF |
70 |
45 |
50*6° |
25 |
G1-1/4 NPT1-1/4 |
|
H005-12PF |
78 |
51 |
60*6° |
25.5 |
G1-1/2 NPT1-1/2 |
|
H005-16PF |
98 |
61 |
75*6° |
26 |
G2 NPT2 |

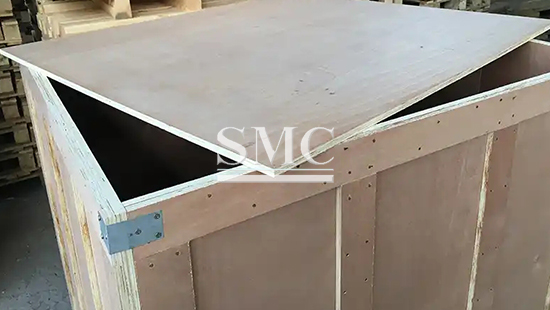

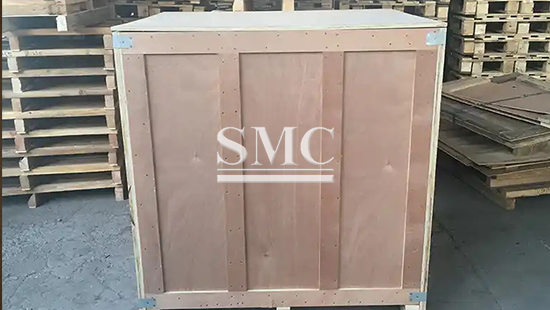

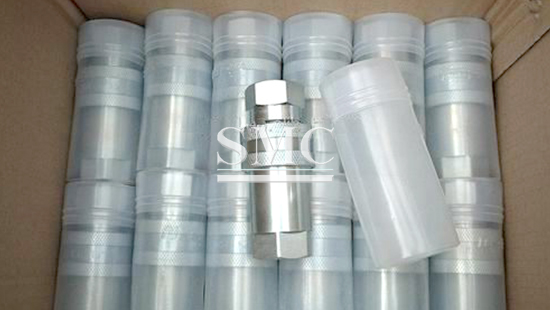

Packaging of Hydraulic Coupling:
