Specifications of Insulated Galvanized Steel:
1) Grade: SGCC, DX51D, Q195, all according to the customer's request
2) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, etc.
3) Thickness: 0.6mm - 1.6mm, all available
4) Width: 600mm - 1500mm, all available
5) Gauge Size: 18, 20, 22, 24, 26

6) Zinc coating weight: g60, g90

Different Types of Galvanized Steel Sheet:

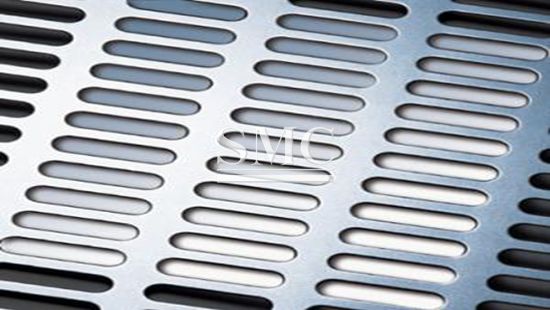

We are able to make galvanized sheet to further processing, such as embossed sheet metal, checker steel sheet, perforated steel metal, corrugated roof sheet, and prepainted galvanized steel sheet. We provide various patterns for those different types. Please check the metal sheet types's table below. All of our metal sheet types are custom-manufactured.

SMC Standard Sheet Metal Gauge:

Packaging for Insulated Galvanized Steel

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Insulated Galvanized Steel:

Due to its superior quality and longevity, Insulated Galvanized steel be used in the following building and architectural applications.

1) Roofs

2) Roll formed panels (industrial of commercial buildings)

3) Cladding on standard building materials

What is Galvanized Steel?

There are two typical galvanizing ways to obtain a zinc coating: hot dip galvanizing and electrogalvanizing. Hot dip galvanizing is the process that steel is immersed into molten zinc bath to get a zinc coating surface. This not only helps protect steel from rust and corrosion, but also gives the steel a shiny attractive appearance. Electrogalvanizing is the process that uses electrolysis to coat the steel with zinc, which is neither cost-effective nor environmentally friendly. It is hardly to find electrogalvanized steel in our lives nowadays.

What are the advantages of Galvanized Steel?

Because of permanently and successive zinc/iron alloy layers, galvanized steel offers many benefits:

1) Corrosion Resistance: the zinc coating surface protects the base steel not only by providing barrier to corrosion elements, but also by the sacrificial nature of the coating. Galvanized steel often remains in working order with little maintenance for 40 years or more.

2) Excellent Surface Appearance

3) Formability: it can be simply bend to parts with deep drawing requirements

4) Paintability: it can be painted with different colors

5) Weldability: it is accepted various welding practices

What are the disadvantages of Galvanized Steel?

In spite of many benefits, galvanized steel is not always an ideal choice. Galvanized steel cannot be used underground without being properly covered, which can be inconvenient for many jobs.

Where do we use Galvanized Steel?

It is primarily used in the construction industry, such as roofing, wall cladding, and support beams. It is also used in the automotive industry, due to its enhanced paintability, weldability and corrosion resistance. Moreover, it is an essential material for white goods application, such as refrigerators, air-conditioners, washers, microwaves, vending machines and audio visual systems.
