Shanghai Metal Corporation is one of the leading and reliable manufacturers and distributors of non-asbestos sheet in China. We provide the high quality matched products and excellent services for various industries.

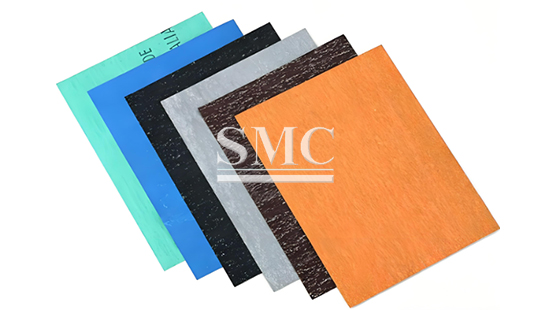

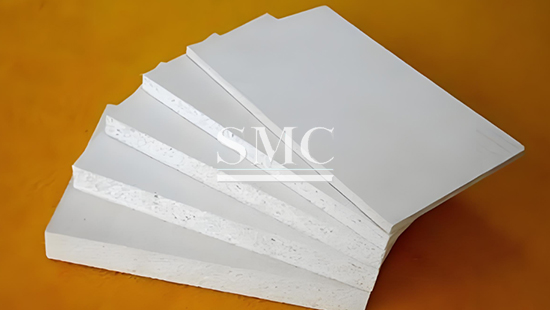

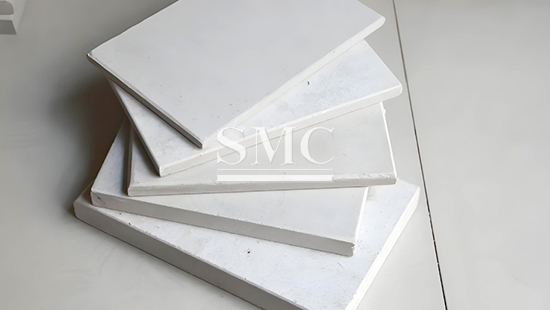

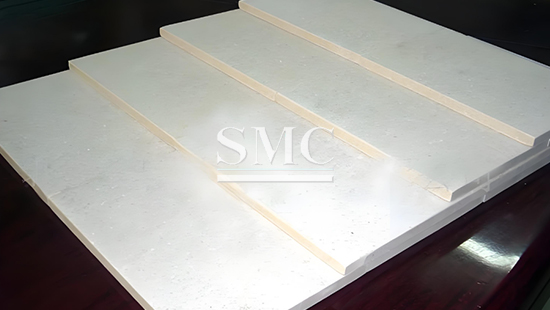

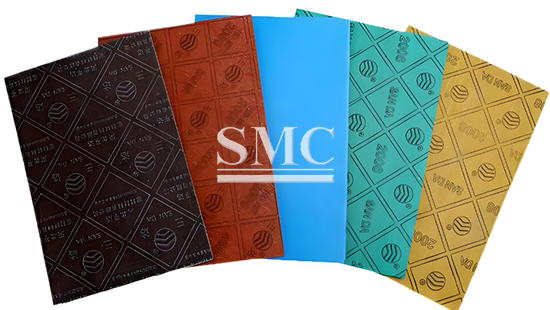

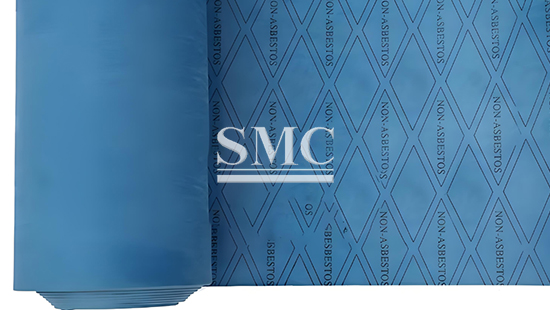

Non-asbestos sheet is an environmentally friendly, safe and high temperature resistant sheet, mainly used to make various sealing gaskets. Non-asbestos materials are not susceptible to the effects of some chemicals, such as acid, alkali and other substances, and are not prone to corrosion, bulging, deformation and so on in a humid environment. Non-asbestos gaskets are widely used for static sealing of equipment, pipelines, pumps, valves, and other industries such as power, petroleum, chemical, instrumentation, and machinery, and can effectively meet the sealing requirements of various precision instrument surfaces.

If you want to know more about our non-asbestos sheets, please feel free to contact us, we will reply you within 24 hours.

Dimensional deviation:

Thickness : ≤8mm ±0.3mm      8--12mm ±0.5mm        ≥12mm ±0.8mm

Width: ≤1220mm ±3mm       >1220mm ±4mm

Length: ≤2400mm ±5mm       >2440mm ±8mm

Physical properties:

Density: 1.2-1.6g/cm3

Thermal conductivity: ≤0.29 W/(m.k)

Water absorption: ≤28%

Water contain: ≤10%

Moisture movement: ≤0.25%

Bending strength: oven dry ≥16 Mpa       saturation with water   ≥13 Mpa

Non-combustibility: class A

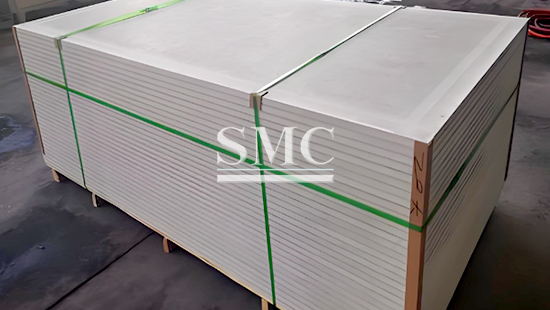

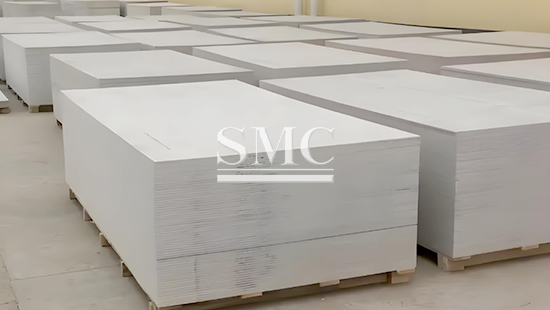

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
