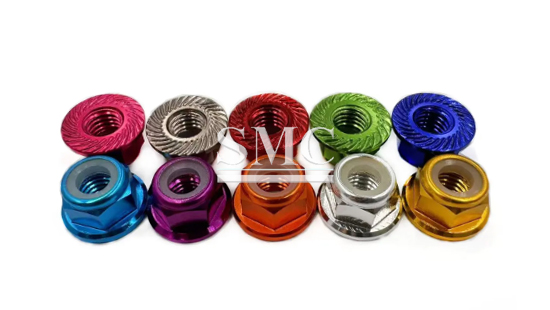

Nylon Lock Hexagon Flange Nut
Standard: ISO, DIN, GB
Material: SS304, Aluminum, Carbon steel, Brass
Size: M5-M20
Shanghai Metal Corporation is a professional manufacturer and supplier of Nylon Lock Hexagon Flange Nut with high quality and reasonable price.

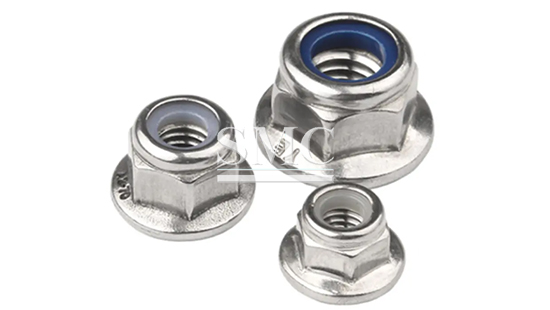

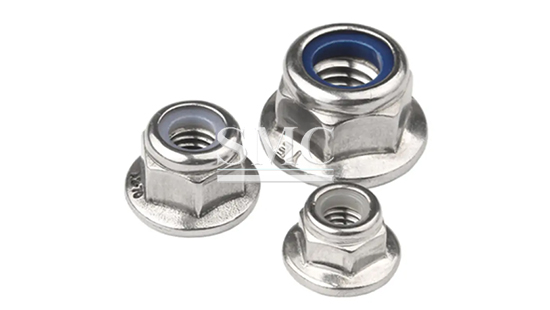

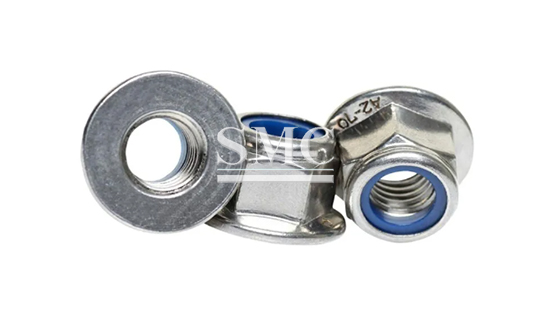

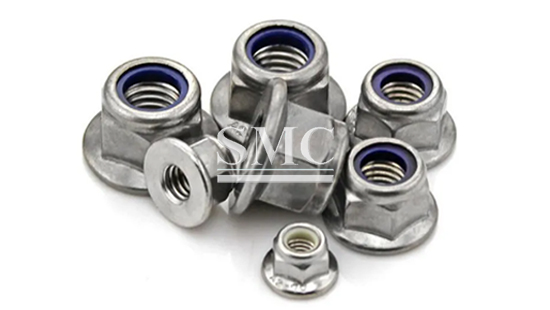

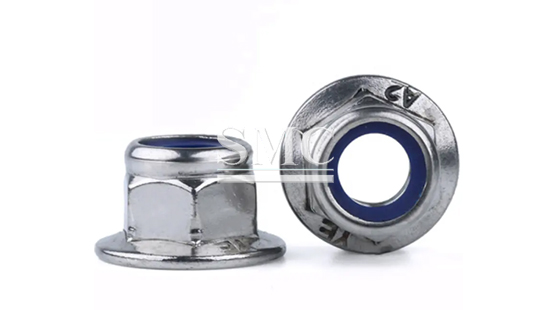

DIN6926 nuts specific hexagonal shape: This allows the nuts to be easily and quickly installed and removed using standard tools. The bottom of the nut has an extended circular flange, which helps to distribute pressure, reduce damage to the mounting surface, and provide greater torque support. There is a nylon ring inside the nut, when the bolt is screwed in, the nylon ring will be closely matched with the thread, generating friction, so as to prevent the nut from loosening due to vibration or other external forces.
If you want to know more about Nylon Lock Hexagon Flange Nut price please feel free to contact us, we will reply you within 24 hours
Technical Information of Nylon Lock Hexagon Flange Nut:
|
thread size |
M5 |
M6 |
M8 |
M10 |
M12 |
(M14) |
M16 |
M20 |
||
|
P |
thread pitch |
coarse thread |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
|
Fine Tooth 1 |
\ |
\ |
\ |
1.25 |
1.5 |
1.5 |
1.5 |
1.5 |
||
|
Fine Tooth 2 |
\ |
\ |
\ |
(1.0) |
(1.25) |
\ |
\ |
\ |
||
|
C |
Min |
|
1.1 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
|
|
|
da |
Min |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
|
|
Max |
5.75 |
6.75 |
8.75 |
10.8 |
13 |
15.1 |
17.3 |
21.6 |
||
|
dc |
Max |
11.8 |
14.2 |
17.9 |
21.8 |
26 |
29.9 |
34.5 |
42.8 |
|
|
dw |
Min |
9.8 |
12.2 |
15.8 |
19.6 |
23.8 |
27.6 |
31.9 |
39.9 |
|
|
e |
Min |
8.79 |
11.05 |
14.38 |
16.64 |
20.03 |
23.36 |
26.75 |
32.95 |
|
|
h |
Max |
7.1 |
9.1 |
11.1 |
13.5 |
16.1 |
18.2 |
20.3 |
24.8 |
|
|
Min |
6.74 |
8.74 |
10.67 |
13.07 |
15.67 |
17.68 |
19.46 |
23.96 |
||
|
m |
Min |
4.7 |
5.7 |
7.6 |
9.6 |
11.6 |
13.3 |
15.3 |
18.9 |
|
|
mw |
Min |
2.2 |
3.1 |
4.5 |
5.5 |
6.7 |
7.8 |
\ |
11.1 |
|
|
S |
Max=nominal |
8 |
10 |
13 |
15 |
18 |
21 |
24 |
30 |
|
|
Min |
7.78 |
9.78 |
12.73 |
14.73 |
17.73 |
20.67 |
23.67 |
29.16 |
||
Packaging of Nylon Lock Hexagon Flange Nut:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
