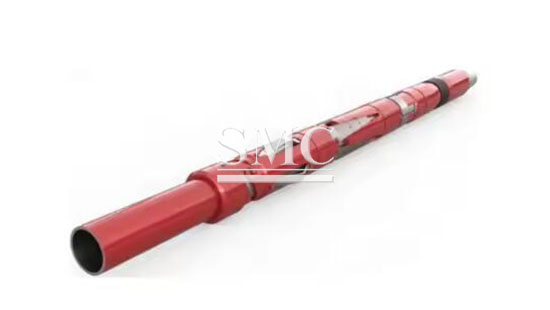

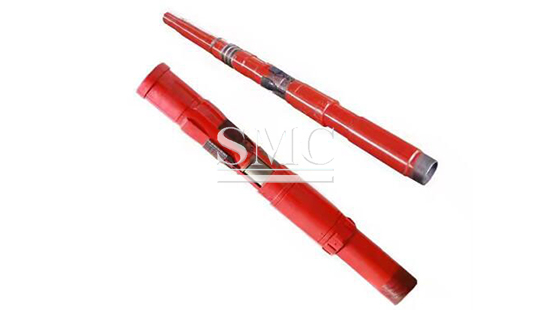

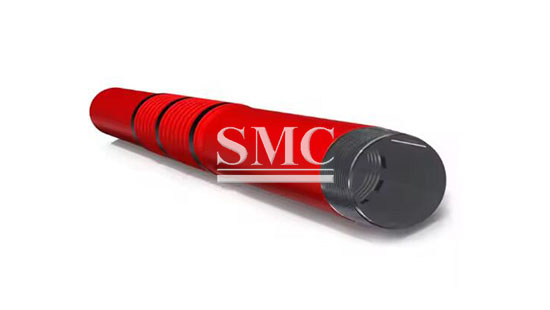

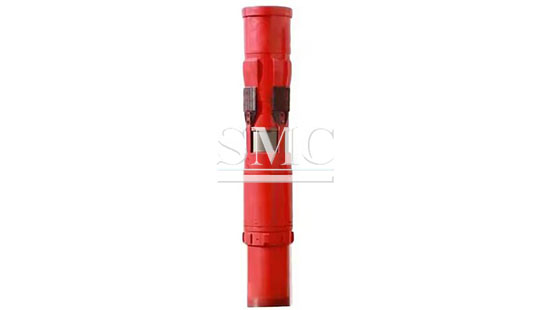

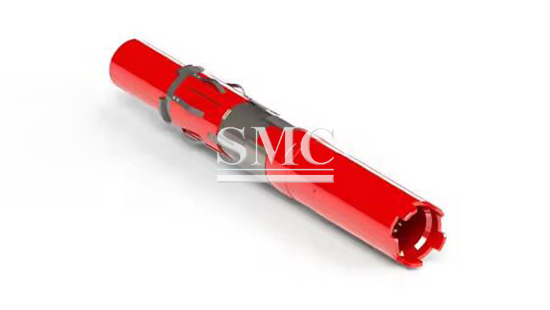

Liner Hanger/ Oilfield Drilling Liner Hanger
Standard: API
Processing Type: Forging
Color: Red/ blue
Shanghai Metal Corporation is a professional manufacturer and supplier of Liner Hanger/ Oilfield Drilling Liner Hanger with high quality and reasonable price.
Liner hanger is mainly through the hydraulic transmission to achieve the Liner Hanger, which is widely used in the technology of oil and gas well and geothermal well. They are inexpensive, light-to medium-duty hangers. They are available in right and left-hand set models, depending on the type of setting tool to be used. Multi-cone design maximizes bypass area for run-in and cementing. Through liner hanger, liner cementing can reduce casing weight in deep well, improve the load of drilling rig lifting system, and reduce the flow resistance of cement slurry injection, which is conducive to safe construction. Through liner tie-back, the problem of drilling operation affected by upper casing wear can be solved. Using liner suspension cementing technology can also reduce casing usage and save drilling costs.
If you want to know more about Liner Hanger/ Oilfield Drilling Liner Hanger price please feel free to contact us, we will reply you within 24 hours
Technical Information of Liner Hanger/ Oilfield Drilling Liner Hanger:
|
Specification (mm) |
Φ244.5 X Φ177.8mm/139.7mm |
Φ339.7mm X Φ244.5mm |
|
Rated Load (t) |
160 |
240 |
|
Sealing Capacity (Mpa) |
25 |
25 |
|
Shearing Pressure of Pins |
7~8 |
7~8 |
|
Casing Wall Thickness (mm) |
10.03 |
9.65 |
|
11.05 |
10.92 |
|
|
11.99 |
12.19 |
|
|
Casing Weight (Kg/m) |
59.52 |
54.5 |
|
64.73 |
68 |
|
|
69.94 |
85 |
|
|
Body Max O.D. (mm) |
215 |
308 |
|
Body Min I.D. (mm) |
155 |
220.5 |

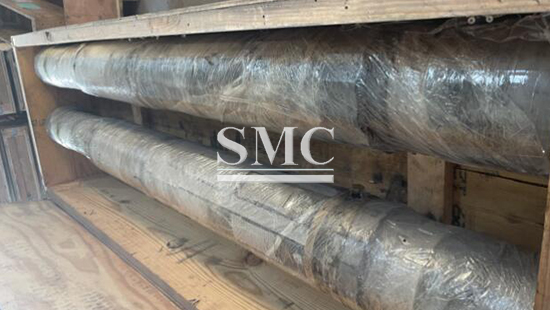

Packaging of Liner Hanger/ Oilfield Drilling Liner Hanger:
