45' Pallet Wide Reefer Container

Size: 40HC/45HC

Condition: New and Customized

Product Detail | Technical Information

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of shipping containers with high quality and reasonable price.

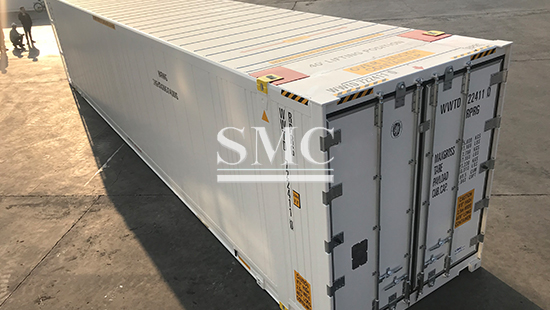

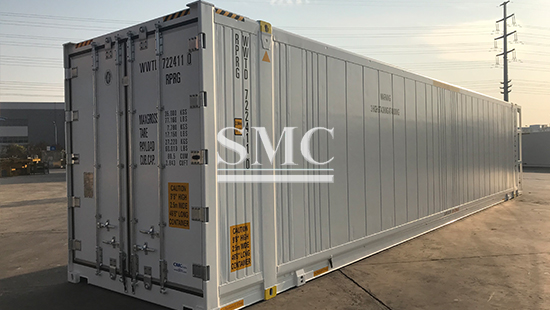

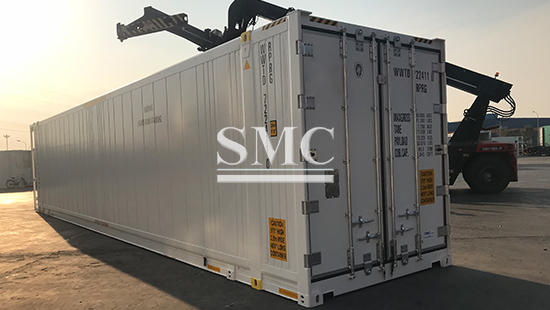

The 45ft Pallet Wide High Cube Reefer Container is a special container that operates using a cooling unit. This guarantees that the temperature of your cargo is set to your needs, making the container ideally suited for transporting delicate goods that require a fixed temperature. The 45ft Reefer Container is available worldwide.

If you want to know more about pallet wide container price please feel free to contact us, we will reply you within 24 hours

OPTIONS :Pallet-wide outer width, Inner lining Stainless steel, VR or FRP plate; Shoring bar system; Slim or standard door,Flat or Corrugated Door lining, Marine electric reefer unit or Diesel-Electric reefer unit.

STACKING: 5 high at 45’ position (supported at 45’), 3 high at 45’ position (supported at 40’), 3 high at 40’ position (supportedat 40’) (based on 34,000kg)

MACHINERY: Marine Electric or Diesel-Electric reefer unit

Technical Information of Pallet Wide Reefer Container：

Dimensions and Capacities of Reefer Containers
		40ft HC Reefer Container		45ft Reefer Container
Dimension		Millimeter	Feet	Millimeter	Feet
External	Length	12192	40	13,716	45
	Width	2438	8	2,556	8.4
	Height	2896	9.6	2,896	9.6
Internal	Length	11,590	38	13,274	43.6
	Width	2,290	7.5	2,438	8
	Height	2,557.50	7.47	2,577	8.5
Door Opening	Width	2,294	7.53	2,440	8
	Height at sill	2,569	7.43	2,567	8.4
	Cargo access height	2,505.50	7.3	2,555	8.38
Weight		Kilogram	Pound	Kilogram	Pound
Max Gross Weight		30480	67196	34,000	74,957
Tare Weight (Excluding Ref. Unit)		4100	9038	5,760	12,698
Maximum Payload		26380	58157	28,240	62,258
Internal Capacity		Cube Meter	Cube Feet	Cube Meter	Cube Feet
Internal Capacity		67.9	2400	83.4	2,945
Insulation	Item	Thickness (mm)	Density (kg/m3)	Thickness (mm)	Density (kg/m3)
	Side	63	45-50	63	45-50
	Door	74	50-55	74	50-55
	Roof	80	40-45	80	40-45
	Floor	82-106	45-50	76-135	55-60
	Corner		40		40
