Thickness: 1mm - 120mm

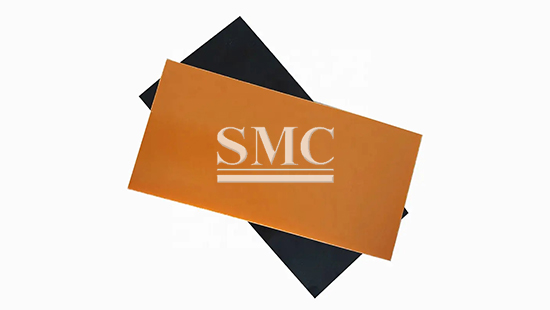

Color: Orange, red, and black

Temperature resistant: 120-300（℃）

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Phenolic Resin Board/ Bakelite Plate with high quality and reasonable price.

Phenolic resin is a thermoset composite material. They have the advantage of high strength and stiffness achieved through a reinforcement material. Glass fiber or woven cotton with resins including phenolic or epoxy are blended to create sheet material. This process makes phenolics generally more cost-effective than thermoplastics for the same application. These composites have varying properties depending on the resin-reinforcement materials used. Phenolic resin board carries nearly half the weight of aluminum, with a physical toughness that withstands abrasion, impact, friction, and material fatigue. Phenolic resin board is corrosion-resistant to most chemicals and substances.

If you want to know more about Phenolic Resin Board/ Bakelite Plate price please feel free to contact us, we will reply you within 24 hours

Standard: Mil-I-24768/14, Type FBG,Mil-I-24768/16, Type FBM

Grade: Bakelite 3021, Bakelite 3025

Size: 1000mm*2000mm, 1200mm*2400mm, 1220*1830mm; 1020mmx1220mm; 1020mm x 2040mm, and more sizes based on customers’ needs

1. Good insulation, Non-conductive, Anti-static, abrasion resistance, weather, and acid-resistant

2. High-temperature resistance, good overall performance, precise processing technology

3. Strong impact resistance, and good mechanical strength

4. Edges cutting tidiness, surface without delamination and crack

Technical Information of Phenolic Resin Board, Bakelite Plate:

The technical parameters of Phenolic Resin Board
ITEM	UNIE	VALUE
thermal strength:≤20mm ≥20mm	℃	115
thermal strength:≤20mm ≥20mm	℃	90
Flexural strength(≥3mm)	Mpa	≥117.6
Tensile strength	Mpa	≥90
Bond strength	N	3600
Shock strength	Kj/m2	≥15
Surface resistivety:normal moisture	K	≥1.0*103
Surface resistivety:normal moisture	K	≥1.0*101
vertical layer to dielectric strength,in the transformer oil,pressure for five minutes,1mm	MV/m	16
surface dielectric breakdown :in the transformer oil,pressure for five minutes.temperature 20℃ ±5℃	KV	14

The technical parameters of our Bakelite plate
Item	Unit	Value
Density	g/cm3	1.45
Heat resistance	℃	140
Water absorption	%	<1.5
Flammability class	UL94	HB
Bending strength	MPa	≥120
Compression strength	MPa	≥250
Tensile strength	MPa	≥100
Insulation resistance(After flooding)	Ω	1.0*107

Phenol paper laminate sheet 3021(bakelite 3021)
Color	Black, orange, brown
Size	10202040mm,10202440mm,12202040mm,12202440mm
Thickness	1mm to 80mm
Density	1.45g/cm3
Water absorption	<1.5%
Component	Phenoilic resin + Bleached paper Paper
Usage	Low voltage electrical insulation

Packaging of Phenolic Resin Board, Bakelite Plate:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Applications:

Phenolic resins are found in myriad industrial products. Paper phenolics are used to manufacture electrical components such as punch-through boards and household laminates. Glass phenolics are particularly well suited for high-speed bearing. Snooker balls and balls from many table-based ball games are also made from phenol formaldehyde resin. The binding agent in normal (organic) brake pads, brake shoes, and clutch disks is phenolic resin. Synthetic resin-bonded paper, made from phenolic resin and paper, is used to make countertops. Phenolic resins are also used for making exterior plywood.

1.Printed circuit board substrates

2.Electrical insulators

3.Switch parts

4.Switch bases

5.Terminal boards

6.Insulating structural parts

7.Tabletops, countertops

8.Wear pads

9.Brake pads, brake shoes, clutch components

10.Wood and metal replacements
