Shrink Ratio: 2:1, 3:1,4:1

Material: Polyolefin

Normal size: Dia 1.6mm-50.8mm before shrinking

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is one of the leading and reliable manufacturers and exporters of Shrink tubes in China. We provide the high quality matched products and excellent services for various industries.

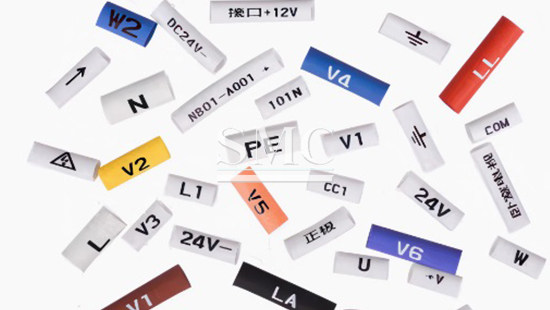

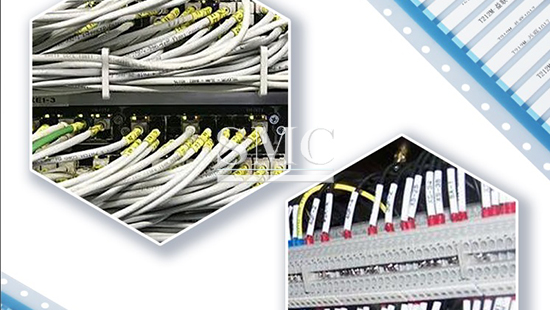

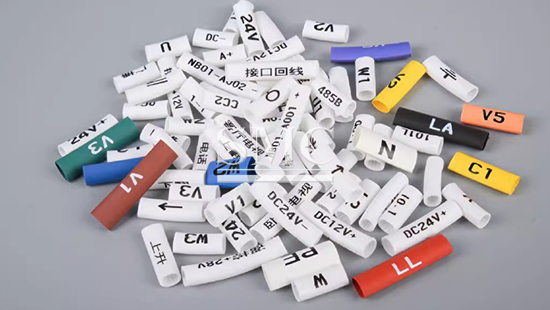

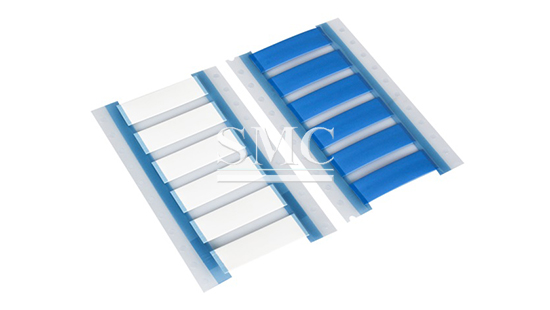

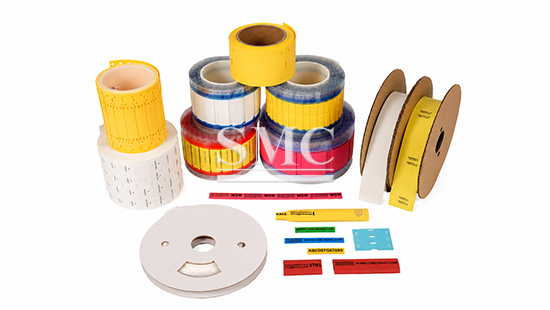

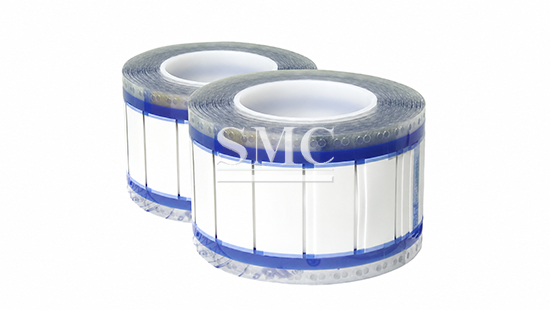

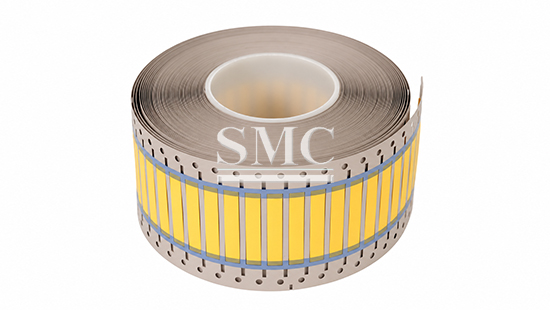

The printable heat shrink tube is specially designed for high-performance wire and cable signs. It is made of radiation cross-linked high-quality temperature-resistant 135℃ soft and high flame-retardant polyolefin material. Polyolefin heat-shrinkable identification sleeves are used for the permanent identification and protection of wires, cables, terminals, and wiring harnesses. They can be printed with wire numbers, equipment codes, serial numbers, barcodes, or warning information and then secured to the cable by heat shrinking. They are widely used in electrical cabinets, automotive wiring, telecommunications, railways, aerospace, marine, and industrial equipment, providing clear identification as well as insulation and protection against abrasion.

If you want to know more about our Polyolefin heat shrinkable identification sleeve, please feel free to contact us, we will reply you within 24 hours.

1.Waterproof: IP65 – Dust-tight and resistant to water jets.

2.Operating Temperature: −55°C to 135°C – Performs reliably across a wide temperature range.

3.Initial Shrinkage Temperature: 70°C – Begins shrinking at approximately 70°C

4.Minimum Full-Shrink Temperature: 110°C – Fully contracts at 110°C or above.

5.Environmental Standard: RoHS – Complies with RoHS environmental requirements.

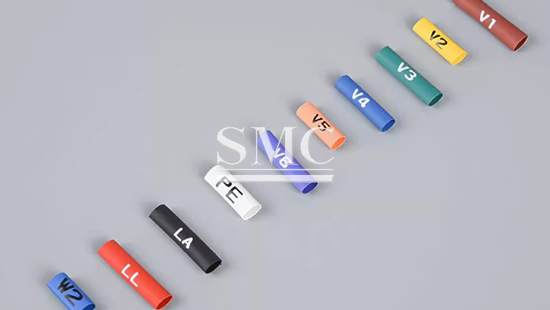

6.Standard Colors: White and Yellow – Other colors are available upon request.

1.Simple and Safe : Cover the exposed part that requires maintenance with these tube sand use a heat gun to shrink them quickly and evenly to form a neat and lasting tight joint.

2.ECO-Friendly: Our heat shrink tubes are RoHS Compliant which ensures its safe and reliable. Does not contain heavy metal and other environmentally hazardous substances.

3.High Flame Retardancy: The sleeve is designed to resist ignition, limit flame propagation, and self-extinguish quickly after the flame source is removed. This helps reduce the risk of fire spreading along cables and wiring harnesses.

4.The polyolefin sleeve does not rust or corrode and helps protect wires, cable markers, and underlying components from moisture, salt spray, oils, and certain chemicals.

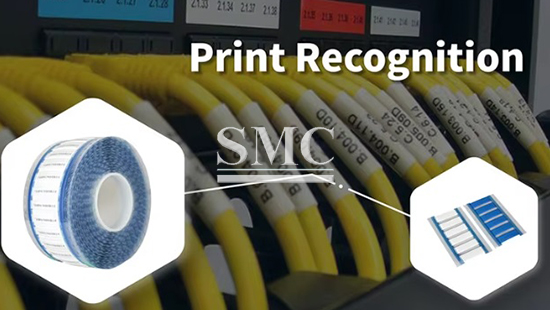

1.Wire/Cable Identification: The sleeve can be printed with wire numbers, circuit codes, equipment references, bar codes, or warning information, providing clear and durable identification throughout installation, inspection, and maintenance.

2.Insulation Protection: After heat shrinking, the sleeve fits securely around the wire or cable and provides an additional insulating layer.

3.Cable Identification Management: Color coding and printed information allow cables and wiring harnesses to be systematically classified and tracked.

4.End-Cap Protection: The sleeve can be applied over cable ends, terminals, and connection points to help prevent abrasion, dust contamination, and handling damage.

Size(inch)	Inner Dia(mm)		Applicable cable range (mm)
Size(inch)	As supplied(min.)	After recovery(max.)	Applicable cable range (mm)
1/16''	1.6	0.6	0.8-1.4
3/32''	2.4	0.8	1.0-2.0
1/8''	3.2	1	1.1-2.7
3/16''	4.8	1.6	1.8-4.1
1/4''	6.4	2.1	2.3-5.5
3/8''	9.5	3.2	3.5-8.0
1/2''	12.7	4.2	4.7-10.8
3/4''	19.1	6.4	7.0-16.3
1''	25.4	8.5	9.3-21.6
1 1/2''	38.1	13.5	15.0-33.0
2''	50.8	17.5	19.0-48.0

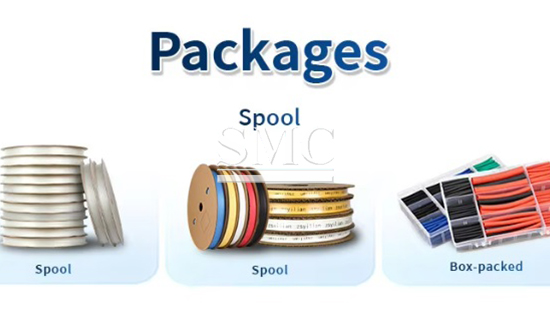

Packaging of Polyolefin Heat Shrinkable Identification Sleeve/ Printable Heat Shrink Tube

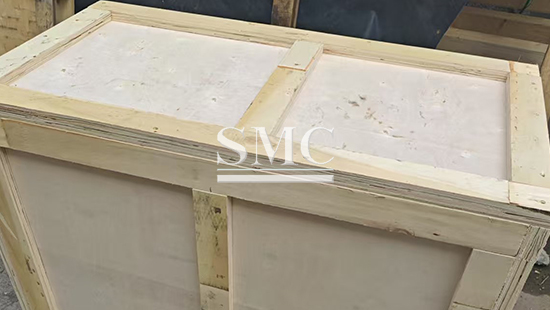

The heat-shrinkable sleeves are neatly wound onto sturdy reels to prevent tangling, deformation, and damage during handling. Each reel is packed individually in a corrugated cardboard carton with a product identification label. For bulk shipment, the reels are stacked securely on wooden pallets for convenient handling, storage, and transportation. Different colors and specifications are packed separately for easy identification and inventory management.

Shipping

We support FCL and LCL sea freight, air freight and express delivery depending

On order quantity and destination. Terms like FOB, CIF and EXW are all available. Other terms may be available upon request.

Shipping costs are calculated based on cargo volume,gross weight,destination and selected transportation method.

Lead Time

Samples:3–7workingdays

Standard orders:15–25working days

Customized orders: 25–40working days

Q1: What are the advantages of your product?

A: Great production capacity sustainable supply according to customer requirements. We support the customized include package. We use100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.

Q2: Are you a factory or trading company?

A: We are a professional manufacturer for wiring protection.We are warmly welcome clients from worldwide to visit our company and cooperate with us.

Q3： What about the lead time for mass production?

A: It depends on the order quantity and the season you place the order.

Generally speaking, We suggest that you start inquiry two monthsbefore the date you would like to get the products at your country.

Q4：How and how long can I get a sample to check your quality? Can I expect to get the sample?

A: After product and price confirmation, you can require for samples tocheck our quality. the samples are free and will be ready for delivery in3-5 days. The samples will be sent to you via express and arrive in 3-5workdays. You can use your own express account or prepay us if youdo not have an account.

Q5:Do you support customized services?

A: Of course. We can customize the product according to your require-ments, such as material, size, color, paint, logo, etc.

Q6: How should the correct sleeve size be selected?

A:Choose a sleeve whose recovered inside diameter is smaller than the cable diameter to ensure a tight fit after full shrinkage.

Q7: Can the printed identification withstand harsh environments?

A:Yes. With suitable printing ribbons, the markings offer good resistance to abrasion, moisture, chemicals, and temperature changes.
