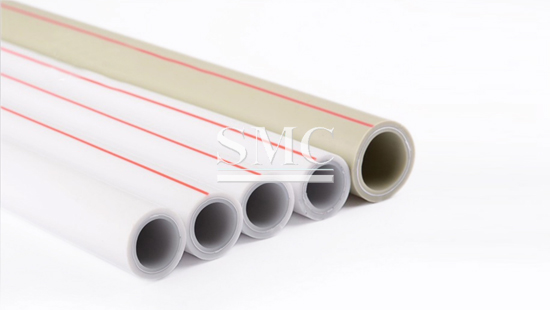

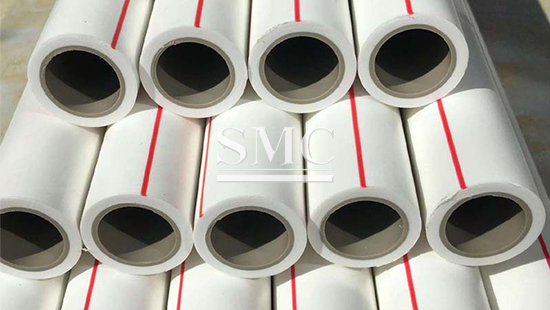

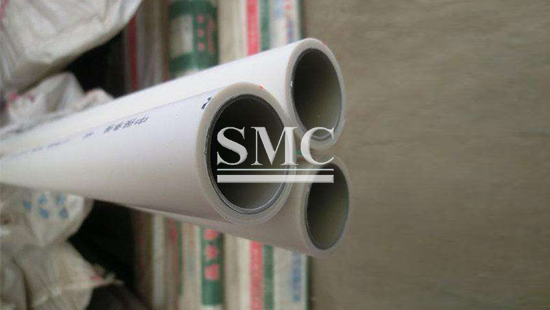

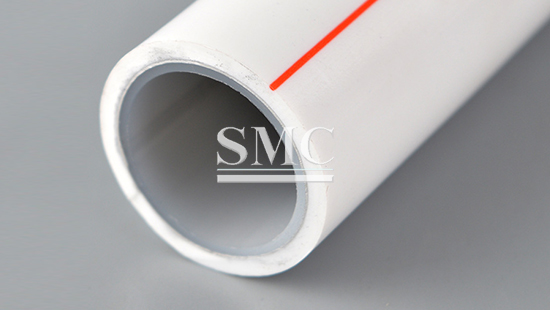

PP-R Aluminum Composite Pipes

Material: PPR

Presssure: PN10 PN12.5 PN16 PN20 PN25

Specification: 20mm-160mm

Length: 4m/6m/Customized

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading PP-R Aluminum Composite Pipes manufacturer and supplier.

PPR aluminum-plastic composite pipe is referred to as aluminum-plastic pipe (PAP) for short, with polyethylene (PE) or cross-linked polyethylene (PEX) as the inner and outer layers, a welded aluminum pipe sandwiched in the middle core layer, and coated on the inner and outer surfaces of the aluminum pipe The pipe covered with adhesive and plastic layer and formed by one-time molding or two-time molding composite process. Since 1992, the average annual growth rate of aluminum-plastic pipes in Europe has exceeded 20%. Compared with other pipes used in water supply systems, the growth rate is the highest.

If you want to know more about our PP-R products or PP-R Aluminum Composite Pipes price please feel free to contact us, we will reply you within 24 hours.

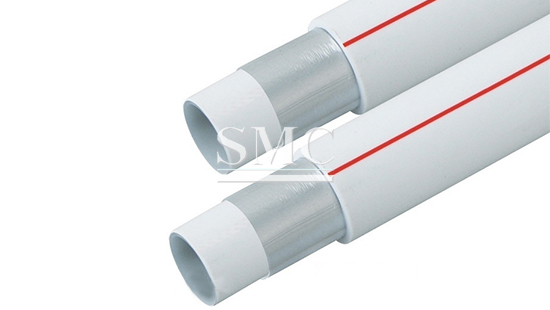

Aluminum-plastic composite PPR pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of aluminum core which is longitudinally welded in an overlapping way.

Easy installation and low cost

Good UV-rays and aging resistance makes the pipe has long service life.

Excellent performance of oxygen and rays resistance, which avoids bacteria breeding, and protects metal parts from rust-eaten.

Greatly reduced linear expansion coefficient, which is 1/3 of normal PP-R pipe, that keep the pipe being not out of shape.

PP-R stable composite pipe has unique excellent properties.It can be widely used in building water supply systems, heating pipe systems, air-conditioning systems, and domestic hot and cold water piping system and other areas.

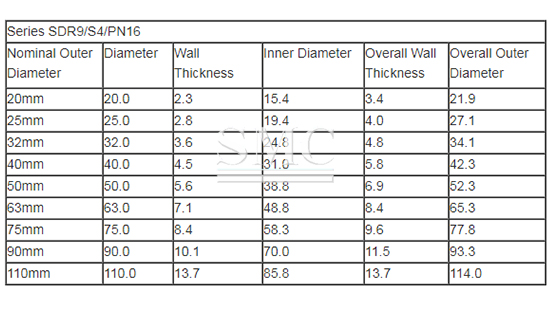

Technical Information of PP-R Aluminum Composite Pipes:

Packaging of PP-R Aluminum Composite Pipes:
