Shoulder Bolt
Material: Carbon Steel, Stainless Steel, Aluminum, Brass, Titanium, etc.
Size: M2-M100
Grade: DIN: Gr. 4.6, 4.8, 5.6, 5.8, 8.8, 10.9, 12.9, etc.

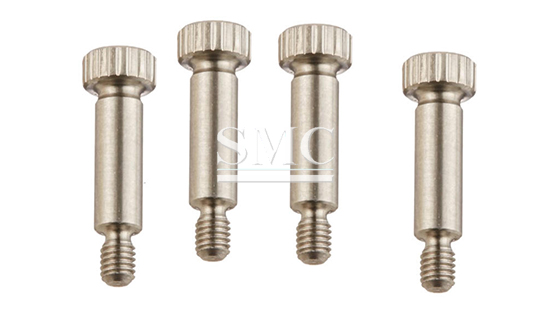

Shanghai Metal Corporation is a leading manufacturer and supplier of Shoulder Bolt in China.

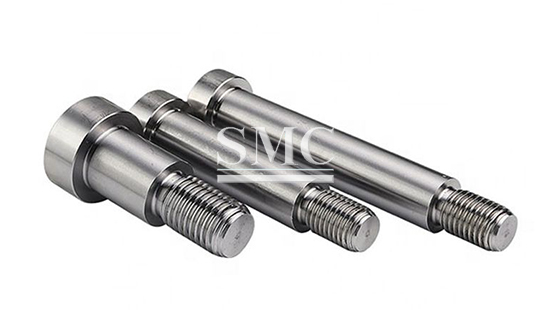

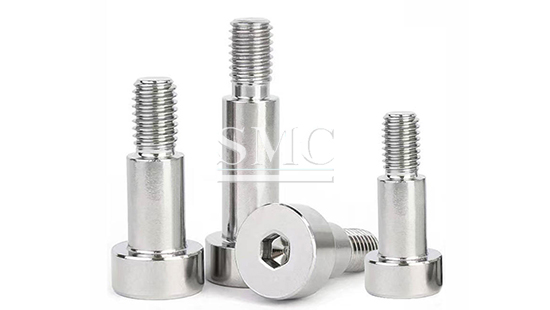

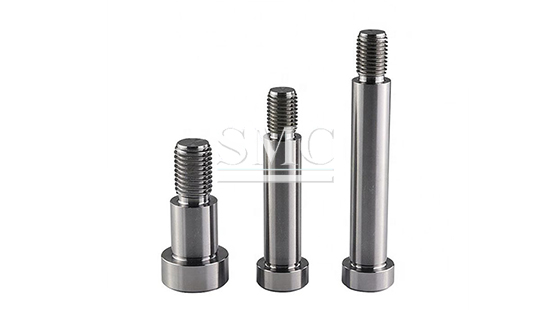

Shoulder Bolts are available in a variety of materials, including carbon steel, stainless steel, brass, aluminum, titanium and so on. They are also available in different diameters and thread sizes to accommodate various applications.
If you have any other questions about Shoulder Bolts, please feel free to contact us, we’ll reply you within 24 hours.
Technical Information of Shoulder Bolt:
|
Regular Dimensions |
Unit: mm |
||||||||||
|
DN |
Pole Dia. |
Head Dia. |
Head Thick |
Thread Dia. |
Thread Pitch |
Thread Length |
Hexagon Depth |
Hexagon opposite sides |
|||
|
max |
min |
max |
min |
max |
min |
max |
min |
||||
|
2.5 |
2.48 |
2.45 |
5 |
4.78 |
2.5 |
2.32 |
M2 |
0.4 |
4 |
|
|
|
3 |
2.98 |
2.95 |
6 |
5.78 |
3 |
2.78 |
M2.5 |
0.45 |
5 |
|
|
|
4 |
3.98 |
3.95 |
7 |
6.78 |
3.5 |
3.32 |
M3 |
0.5 |
6 |
2.4 |
3 |
|
5 |
4.98 |
4.95 |
9 |
8.78 |
3.5 |
3.32 |
M4 |
0.7 |
8 |
2.4 |
3 |
|
6 |
5.987 |
5.951 |
10 |
9.78 |
4.5 |
4.32 |
M5 |
0.8 |
9.75 |
2.4 |
3 |
|
6.5 |
6.487 |
6.451 |
10 |
9.78 |
4.5 |
4.32 |
M5 |
0.8 |
9.75 |
2.4 |
3 |
|
8 |
7.987 |
7.951 |
13 |
12.73 |
5.5 |
5.32 |
M6 |
1.0 |
11.25 |
3.3 |
4 |
|
10 |
9.987 |
9.951 |
16 |
15.73 |
7 |
6.78 |
M8 |
1.25 |
13.25 |
4.2 |
5 |
|
12 |
11.984 |
11.941 |
18 |
17.73 |
9 |
8.78 |
M10 |
1.5 |
16.4 |
4.9 |
6 |
|
13 |
12.984 |
12.941 |
18 |
17.43 |
9 |
8.78 |
M10 |
1.5 |
16.4 |
4.9 |
6 |
|
16 |
115.984 |
15.941 |
24 |
23.67 |
11 |
10.73 |
M12 |
1.75 |
18.4 |
6.6 |
8 |
|
20 |
19.98 |
19.928 |
30 |
29.67 |
14 |
13.73 |
M16 |
2.0 |
22.4 |
8.8 |
10 |
|
24 |
23.98 |
23.928 |
36 |
35.61 |
16 |
15.73 |
M20 |
2.5 |
27.4 |
10 |
12 |
|
25 |
24.98 |
24.928 |
36 |
35.61 |
16 |
15.73 |
M20 |
2.5 |
27.4 |
10 |
12 |
|
P.S: Other sizes are also workable, special sizes can be customized. |
|||||||||||
