Grade Series: H, HB, TH, EH

Shape: Square, cylindrical, tile shaped, circular ring

Surface treatment: Zinc-coating, passivation, epoxy-coating, alu-coating

Product Detail | Technical Information | Packaging

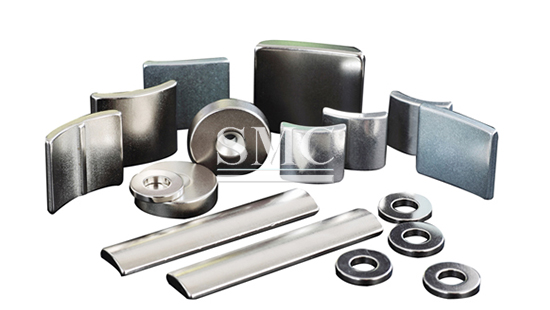

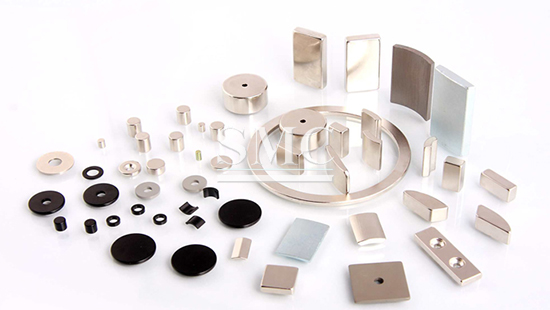

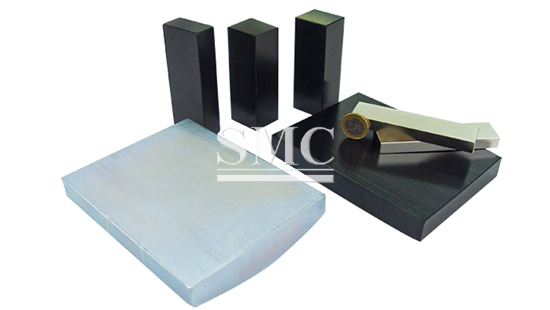

Product Detail

Shanghai Metal Corporation is a sintered nd-fe-b magnets manufacturer and supplier.

Sintered neodymium iron boron is the most magnetic permanent magnet material in the world today, which has excellent permanent magnetic properties and high cost-effectiveness compared to traditional permanent magnet materials. Sintered neodymium iron boron has greatly expanded the application potential of permanent magnet materials, widely used in various fields such as transportation, energy, communication, home appliances, machinery, and medical treatment. It is playing an important role in green energy and artificial intelligence, and has become an indispensable functional material in production and daily life.

Sintered neodymium iron boron magnets are mainly used in automobiles (electric drive, electric power steering, sensors, etc.), wind power generation, information industry (hard disk drives, optical disk drives), consumer electronics (mobile phones, digital cameras), household appliances (variable frequency air conditioning, refrigerators, and washing machines), elevator linear motors, nuclear magnetic resonance imaging machines, etc. In intelligent manufacturing, intelligent driving, represented by robots Applications in areas such as intelligent services are on the rise

If you want to know more about our sintered nd-fe-b magnets products or battery separator price, please feel free to contact us, we will reply you within 24 hours.

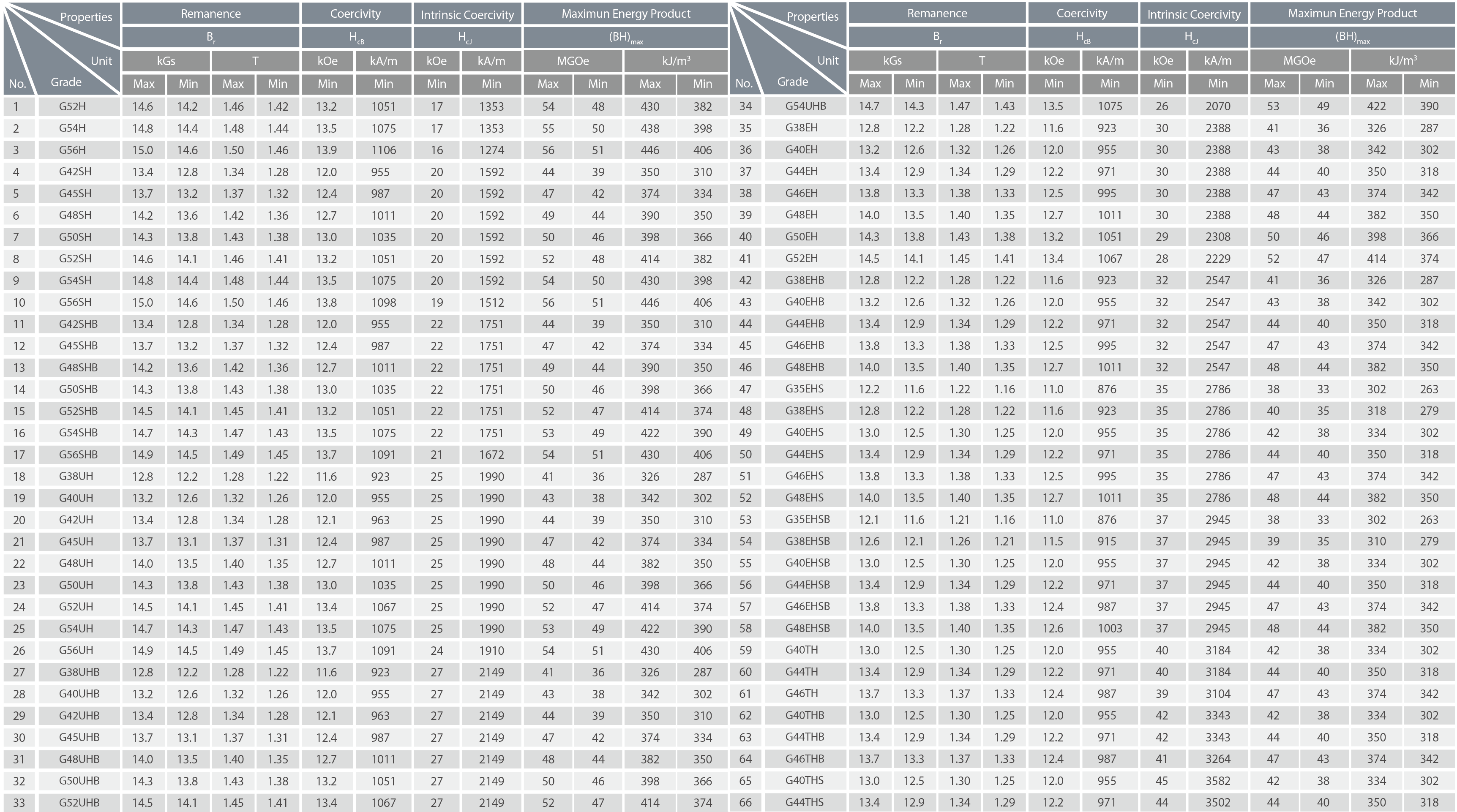

1. Grade Series: H, HB, TH, EH, etc

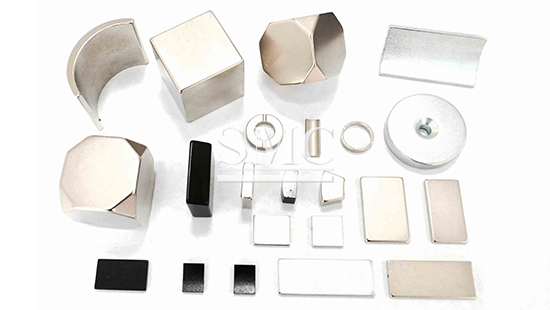

2. Shape: Square, cylindrical, tile shaped, circular ring

3. Surface treatment: Zinc-coating, passivation, epoxy-coating, alu-coating

Excellent permanent magnet characteristics

Excellent stability

Ultra high cost-effectiveness

Reliable mechanical and corrosion resistance

Electric vehicle

Optical drive

Magnetic resonance imaging instrument

Robot

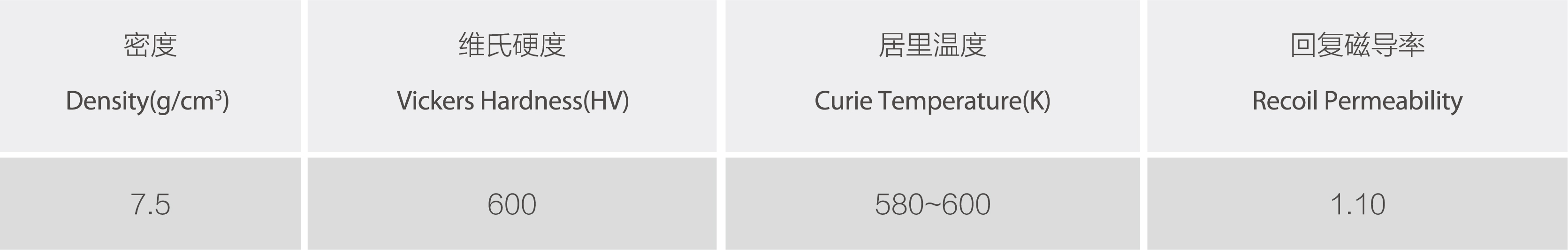

Technical Information of Sintered Nd-Fe-B Magnets:

Shape	Product size range	More economical size range

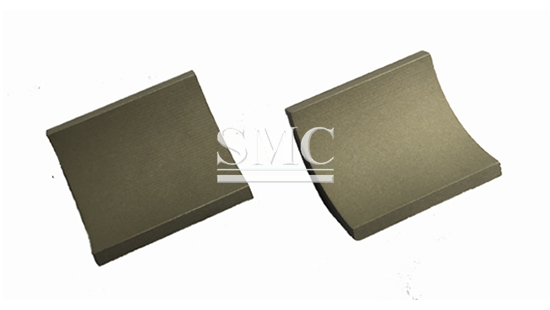

Arc type	W≤150 mm	2.0mm≤W≤50 mm
	H≤80 mm	1.0mm≤H≤40mm
	0.5mm≤T≤60	1mm≤T≤60
	W/H≤50	W/H≤3
	W/T≤20 mm	W/T≤10
Arc type	L≤180 mm	1mm≤L≤100 mm
	W ≤80 mm	1mm≤W ≤40mm
	H≤80mm	1mm≤H ≤40mm
	≤T≤60mm	2mm≤T≤40mm
	L/W≤10	L/W≤5
	L/H≤10	L/H≤5
	α≤180°	α≤90°
Bread type	L≤180mm	1.0mm≤L≤100mm
	W≤80mm	1.0mm≤W≤40mm
	L/W≤20	L/W≤5
	L/H≤20	L/H≤5
	H≤80mm	1.0mm≤H≤40mm
Radial disc	D≤80 mm	1.0mm≤D≤50mm
	H≤60 mm	1.0mm≤H≤40mm
	D/H≤20	D/H≤10
Radial ring	D≤80 mm	D≤50 mm
	d≥1 mm	d≥2 mm
	（D-d）/2≥1.4mm	（D-d）/2≥2 mm
	d/D≤0.8	d/D≤0.6
	D/35≤H≤1.5*D	D/15≤H≤D
	H≤60 mm	1.0mm≤H≤40 mm
Disc	D≤150 mm	1.0mm≤D≤100mm
	H≤60 mm	1.0mm≤H≤40mm
	D/H≤20	D/H≤10
Axial ring	D ≤150mm	D ≤100 mm
	d≥1mm	d≥2 mm
	（D-d）/2≥1.0mm	（D-d）/2≥2 mm
	d/D≤0.8	d/D≤0.6
	D/35≤H≤1.5*D	D/15≤H≤D
	H≤60 mm	1.0mm≤H≤40 mm
Square block	L≤180 mm	1mm≤L≤100 mm
	W ≤80 mm	1mm≤W ≤50mm
	L/W≤20	L/W≤5
	L/H≤20	L/H≤5
	H≤80 mm	1mm≤H≤50mm

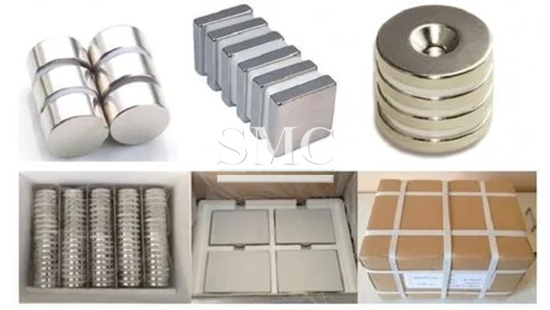

Packaging of Sintered Nd-Fe-B Magnet:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
