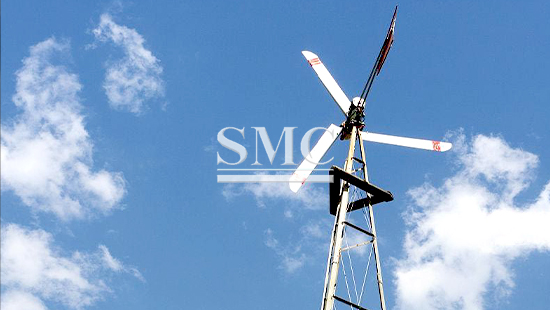

Small and Medium-sized Wind Turbines

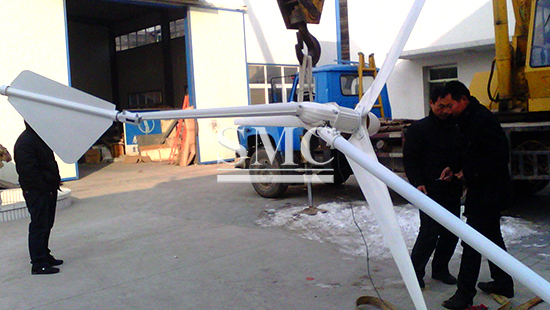

    Subassembly: Blade, Hub, Rear rudder pole, Tail rudder board, controller.



    Advantage: Decentralized energy supply, Cost - effective for small - scale applications, Compatibility with the environment, Quick installation and easy scalability.

Shanghai Metal Corporation is a professional manufacturer and supplier of Small and Medium-sized Wind Turbines with high quality and reasonable price.

Our Small and Medium-sized Wind Turbines, meticulously crafted from premium - grade high - strength materials, embodies unparalleled durability and steadfast reliability across a broad range of environmental conditions. Their robust construction ensures resilience against harsh natural elements, including strong winds, temperature fluctuations, and variable weather patterns, safeguarding the crucial power generation and distribution systems. Engineered to withstand diverse operational loads, these turbines gracefully support the integration of blades, generators, and other vital components within the intricate network of modern renewable energy infrastructure. Not only do they facilitate the seamless conversion of wind energy into electricity, but they also contribute to the overall stability and longevity of the power supply system, underpinning the efficiency that has become vital to our daily lives and industrial operations.

If you want to know more about Small and Medium-sized Wind Turbines price please feel free to contact us, we will reply you within 24 hours


Technical Information of Small and Medium-sized Wind Turbines:



Unit model

L1

L2

Power rating

1kw

1.5kw

2kw

2kw

2.5kw

3kw

Maximum power

1.1kw

1.7kw

2.2kw

2.3kw

2.8kw

3.2kw

Rotor diameter

2.58m

2.88m

3.18m

3.45m

3.69m

3.99m

Rated wind speed

10m/s

10.5m/s

11m/s

10m/s

10.5m/s

11m/s

Rated voltage

48/96V

48/96V

96/120V

96/220V

Start wind speed

2.5m/s

2.5m/s

2.5m/s

2.5m/s

2.5m/s

2.5m/s

Survival wind speed

45m/s

Brake mode

 Electromagnetic unloading

Attended mode

DN50 flange connection

DN80 flange connection

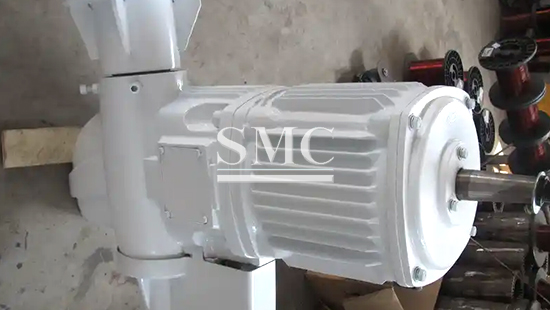

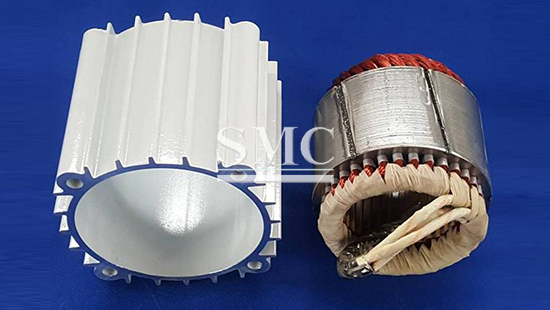

Motor type

Three-phase AC permanent magnet generator

Leaf material

(Reinforced FRP)

Working temperature

-4070

Blade height

1250mm

1550mm

1680mm

1800mm

1950mm

Cut in wind speed

≤3.5m/s

Tower rod parameters

6m 9m tower / independent tower (customizable)

Mode of speed regulation

 Automatic side deviation

Insulation grade

F

Levels of protection

IP54

Anti-corrosion grade

C5

Designed life

25 Years

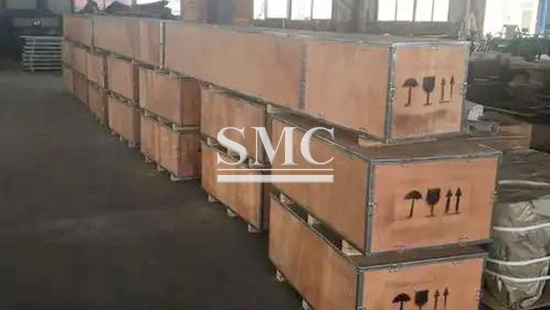

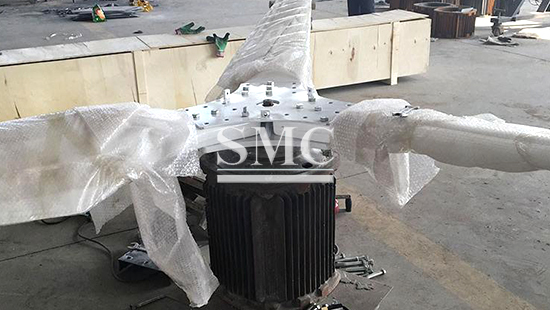

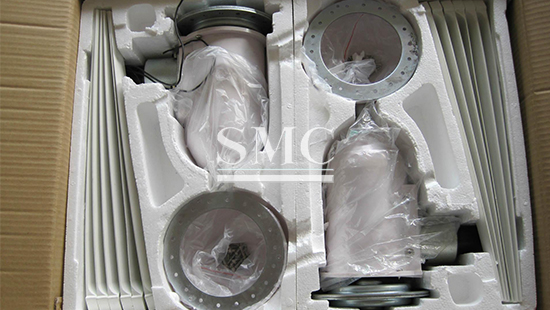

Packaging of Small and Medium-sized Wind Turbines:



Shanghai Metal Corporation ensures that all components of Small and Medium - sized Wind Turbines are packaged and labeled in accordance with industry standards and customer specifications. We give top priority to safeguarding the components during transportation and storage. Robust packaging materials are employed, and clear labeling is provided for effortless identification. Additionally, custom packaging solutions can be furnished upon request to meet the specific needs of different projects and customers. This way, the integrity and quality of the wind turbine components are maintained from the manufacturing facility to the installation site, ensuring smooth and efficient deployment of the Small and Medium - sized Wind Power systems.



1)Individual Packaging.

2)Carton Boxes.

3)Wooden Crates or Pallets.

4)Anti-Rust Measures.

5)Marking and Labeling.
