Fastener

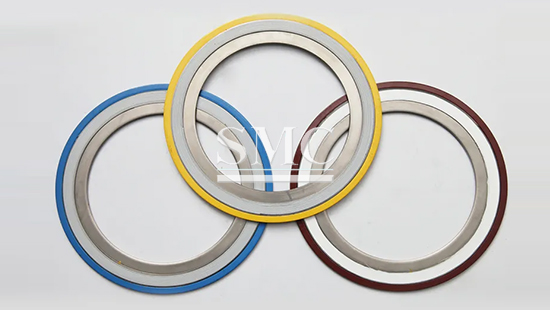

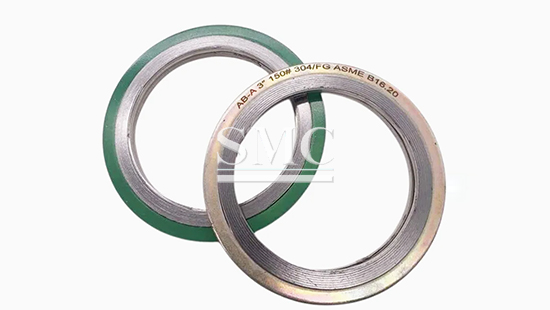

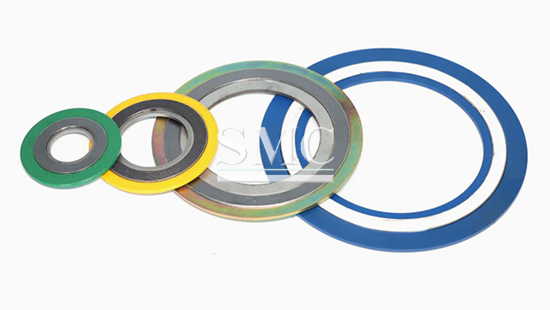

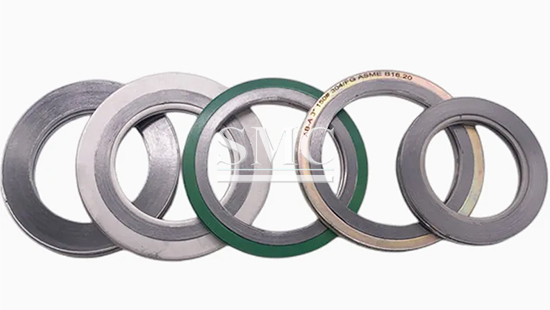

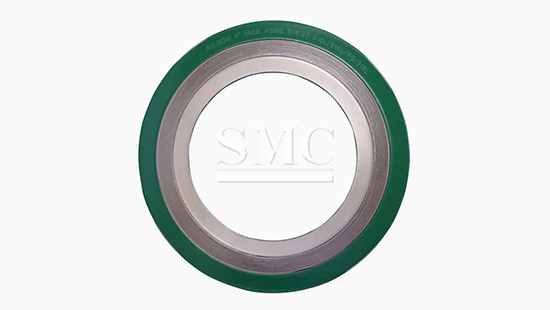

Spiral Wound Gaskets

Size: 1/2′′-84′′

Standard: ASME B16.20, API, DIN

Shape: Round

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Spiral Wound Gaskets with high quality and reasonable price.

Spiral wound gasket is formed by the V-shaped or W-shaped stainless steel belt and non-metallic filler through lamination, spiral winding, and spot welding of the tops and ends. With good compression elasticity, it is applicable to the sealing parts under the intense alternating temperature and pressure, as the static sealing elements at the flange joints of pipelines, valves, pumps, heat exchangers, towers, manholes, handholes, etc.

If you want to know more about Spiral Wound Gaskets price please feel free to contact us, we will reply you within 24 hours

Size: 1/2''- 84''

Standard: ASME B16.20, API, DIN

Shape: Round

Pressure Rate: Class150 Class300 Class600 Class900 Class1500

Resistance to high temperature and high pressures

Excellent sealability is maintained with comparatively small gasket area

Great resilience which allows the gasket to adjust automatically to change in operating conditions, such as pressure and thermal shocks, vibrations etc

Widely used in petrochemical, machinery, electric power, metallurgy, shipbuilding, medicine, atomic energy, aerospace and other fields.

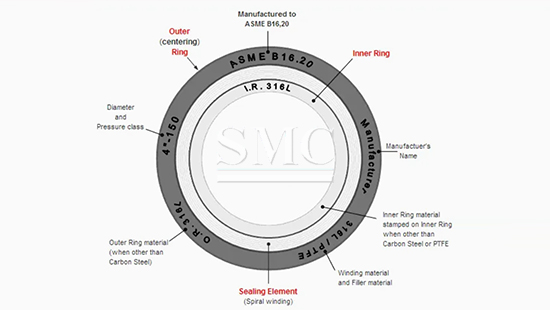

Technical Information of Spiral Wound Gaskets:

Structure	Hoop material	Filler material	Inner&outer ring material	Normal thickness(mm)
				Gasket	Inner&outer ring
Without rings	SS304(L);SS316(L)	Graphite	SS304(L);SS316(L)	3.2mm	2.0mm
	Carbon steel	Aebestos	Carbon steel
With outer ring	SS321;SS317L	Non-asbestos	SS321;SS317L
	Monel;Inconel	Mica	Monel;Inconel	4.5mm	3.0mm
With Inner ring	Titanium;Nickel	Teflon	Titanium;Nickel
	Duplex 31803	PTFE	Duplex 31803
With inner&outer rings	Hastelloy	Ceramic tape	Hastelloy	6.4mm	4.0mm
	SS347,etc.	etc.	SS347,etc.

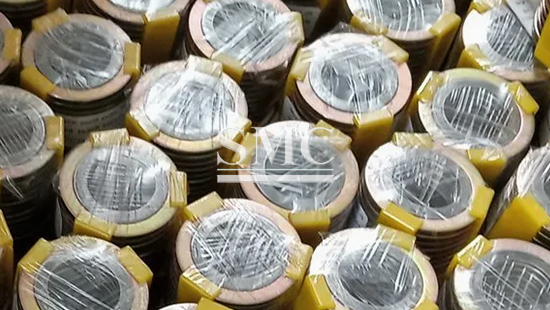

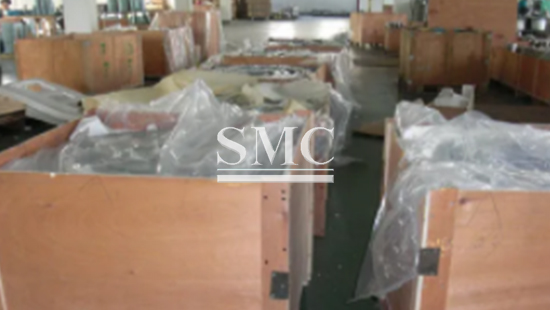

Packaging Information of Spiral Wound Gaskets:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
