Spring Steel Strip
Thickness: 0.2mm-5.0mm
Width: 10mm-400mm
Material: CK67, CK68, CK75, CK85, SAE1070,SAE1095,65Mn, 51CrV4 etc.
Spring Steel refers to a group of a low alloy, medium carbon steel or high carbon steel with excellent yield strength. SMC is the leading manufacturing and supplier of spring steel products. We use high grade of raw materials to ensure premium quality and high tensile.
The high carbon spring steel strip is manufactured by continuous heat treatment furnace and oil quenching, can reach required hardness through annealling, tempering and hardended. Those strips are supplied with different options, such as cutting edge, round edge or dressed. Surface includes matt finish (untreated), polished, bright, blue finish. With great mechanical properties, it can be easily formed and processed as blades, rolling shutter springs for window or door, trowels.
Shanghai metal Corporation is a professional manufacturer and supplier of Spring Steel Strip with high quality and reasonable price. If you want to know more about Spring Steel Strip products or Spring Steel Strip price please feel free to contact us, we will reply you within 24 hours.
-
1. Grade: SAE1045, SAE1050, CK67, SAE1070, SAE1075, SAE1095, 65Mn, 55SiMnV, 60Si2MnA, SK2, SK5, etc.
2. Thickness:0.2mm-5.0mm
3. Width:10mm-400mm
4. Heat treatment: annealed, tempered & hardened
5. Surface: dull, bright, polishing, blue etc
6. Edge: cutting or round edge
7. Equivalent steel grade
-
GB
ASTM
JIS
DIN
BS
NF
#45
1045
S45C S48C
C45
-
-
#50
1050
S50C S53C
CK53
060A52
XC48TS
#55
1055
S55C
C55E
-
-
#60
1060
S58C
CK60
-
-
#70
1070
S70C
CK67
070A72
-
65Mn
1066
-
-
-
-
55Si2Mn
9255
-
55Si7
-
-
60Si2Mn
9260
SUP6
60Si7
-
-
60Si2MnA
9260
SUP6
60Si7
-
-
55CrMnA
5155
SUP9
55Cr3
-
-
60CrMnA
5160
SUP9A
-
-
50CrVA
6150
SUP10A
51CrV4
-
-
60CrMnBA
51B60
SUS11
58CrMnB4
-
-
-
1. Roller Shutter
2. Shoes
3. Band Saw
4. Spiral Spring
5. Stamping parts
6. Tape measure
7. Others
Chemical Composition of Spring steel strips :
|
Steel Grade |
Chemical Composition (%) |
|||||||
|
|
C |
Mn |
Si |
S |
P |
Cr |
Cu |
Ni |
|
# 45 |
0.42-0.50 |
0.50- 0.80 |
0.17-0.37 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
≤0.30 |
|
# 50 |
0.47-0.55 |
0.50- 0.80 |
0.17-0.37 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
≤0.30 |
|
# 55 |
0.52-0.60 |
0.50- 0.80 |
0.17-0.37 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
≤0.30 |
|
# 60 |
0.57-0.65 |
0.50- 0.80 |
0.17-0.37 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
≤0.30 |
|
a 70 |
0.67-0.75 |
0.50- 0.80 |
0.17-0.37 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
≤0.30 |
|
65Mn |
0.62-0.70 |
0.90- 1.20 |
0.17-0.37 |
≤0.035 |
≤0.035 |
≤0.25 |
|
|
|
55Si2Mn |
0.52-0.60 |
0.60- 0.90 |
1.50-2.00 |
≤0.035 |
≤0.035 |
≤0.35 |
|
|
|
60Si2Mn |
0.56-0.64 |
0.60- 0.90 |
1.50-2.00 |
≤0.035 |
≤0.035 |
≤0.35 |
|
|
|
60Si2MnA |
0.56-0.64 |
0.60- 0.90 |
1.60-2.00 |
≤0.03 |
≤0.03 |
≤0.35 |
|
|
|
55CrMnA |
0.52-0.60 |
0.65- 0.95 |
0.17-0.37 |
≤0.03 |
≤0.03 |
0.65- 0.95 |
|
|
|
60CrMnA |
0.56-0.64 |
0.70- 1.00 |
0.17-0.37 |
≤0.03 |
≤0.03 |
0.70- 1.00 |
|
|
|
50CrVA |
0.46-0.54 |
0.50- 0.80 |
0.17-0.37 |
≤0.03 |
≤0.03 |
0.80- 1.10 |
|
|
|
60CrMnBA |
0.56-0.64 |
0.70- 1.00 |
0.17-0.37 |
≤0.03 |
≤0.03 |
0.70- 1.00 |
|
|
Mechanical Property (Quenched and Tempered Condition)
| Steel Grade | Tensile strength/Mpa | Yield strength/Mpa | Elongation % | Area Red. Ratio % |
| 65 | ≥980 | ≥785 | ≥9 | ≥35 |
| 70 | ≥1030 | ≥835 | ≥8 | ≥30 |
| 85 | ≥1130 | ≥980 | ≥6 | ≥30 |
| 65Mn | ≥980 | ≥785 | ≥8 | ≥30 |
| 60Si2Mn | ≥1275 | ≥1180 | ≥5 | ≥25 |
| 50CrVA | ≥1275 | ≥1130 | ≥10 | ≥40 |
Heat Treatment
| Steel Grade | Quenching Temperature/℃ | Media | Tempering Temperature/℃ |
| 65 | 840 | oil | 500 |
| 70 | 830 | oil | 480 |
| 85 | 820 | oil | 480 |
| 65Mn | 830 | oil | 540 |
| 60Si2Mn | 870 | oil | 480 |
| 50CrVA | 850 | oil | 500 |

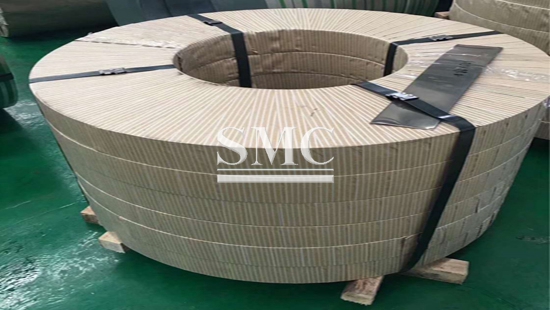

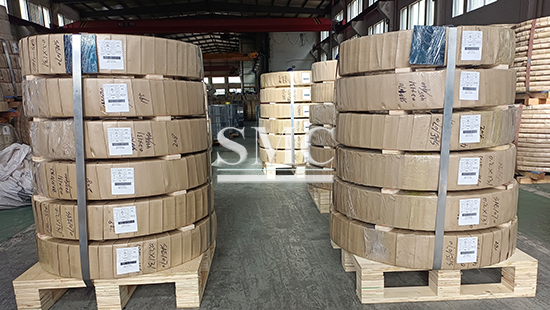

Packaging of Spring Steel Strip:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Spring steel strip can be widely used in a variety of industries, including machinery manufacturing, household appliances, pressure vessels, structural piping, building decoration, chemical equipment, nuclear power, catering kitchenware, elevators, solar energy, metal products, containers, automotive, precision electronics, rail transit, sanitary ware.
