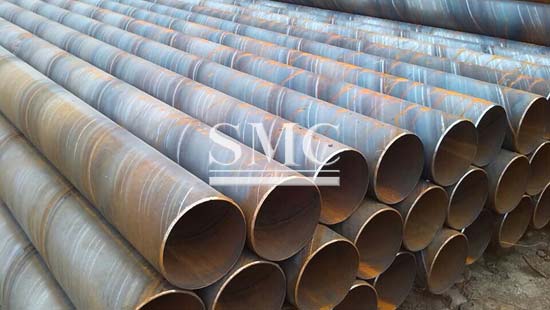

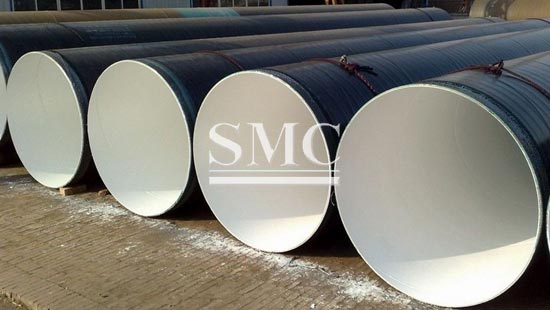

SSAW (Spirally Submerged Arc Welding) pipes are made from hot-rolled steel coils.

These pipes are mainly used in petroleum and natural gas industry to transport flammable

and non-flammable liquid and steel construction.

With 13-year experience in manufacturing pipes, customers can always find what they need.

Features of SSAW Steel Pipe:

1) Both sides of SSAW steel pipes are welded by Arc

2) Good Compactness

3) Smooth surface

Specifications of SSAW Steel Pipe:

1) Outside Diameter: Ф219mm - 2420mm

2) Wall Thickness: 5mm - 20mm

3) Length: 3m - 12m

4) Steel Grade: Q345B, API X42 - X80, L245, L555, J55, N80

5) Standard: SY/T5037-2000, GB/T9711.1-97, API Spec 5L

Inspection of SSAW Steel Pipe:

1) Chemical Component Analysis

2) Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation)

3) Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test)

4) Exterior Size Inspection

5) Hydrostatic Test

6) X-ray Test

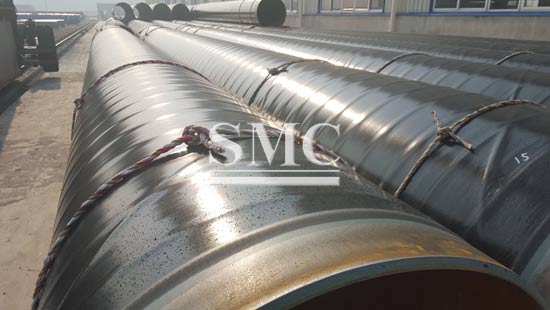

Packaging of SSAW Steel Pipe

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips.

Plastic caps or according to your requirement.

Applications of SSAW Steel Pipe:

The tubes are mainly used for oil, natural gas, gas, central heating, water supply, sewage treatment, low-pressure fluid delivery and so on.
