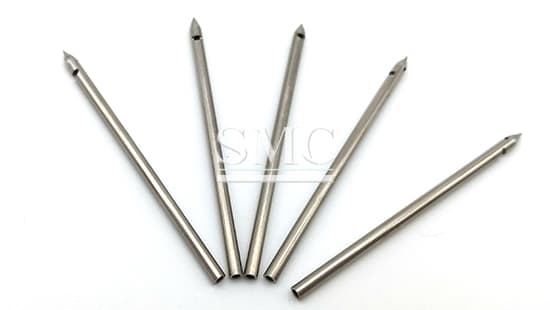

Medical Needle Stainless Steel Hypodermic Tubing
Grade: 304, 316L
Standard: ISO, ASTM, GB
Size Range: 6G – 34G
Length: Cut to the length
Shanghai Metal Corporation is a leading Stainless Steel Hypodermic Tubing for Medical Needle supplier and manufacturer.

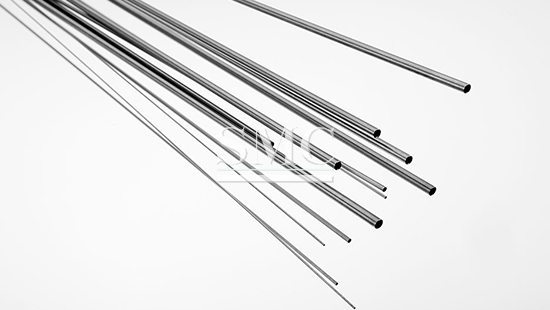

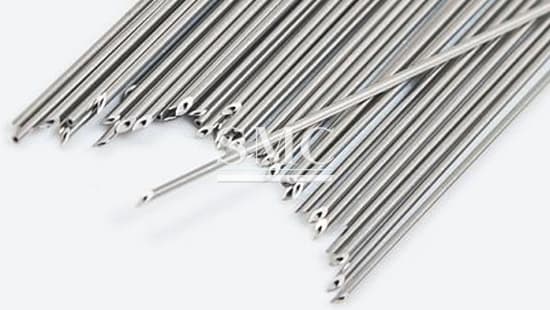

Stainless Steel Hypodermic Tubing is a small diameter, hard drawn needle stock. Made from type 304/304L or type 316L stainless steel, this tubing is widely used in the medical, aerospace, communication and food & beverage industries. It is also a favorite for hobbyists and model makers.
-
-
Type 304/304L stainless steel hypodermic tubing displays good corrosion resistance and can be used in air, water, oil, natural gas, and chemical circuits. Type 316L stainless steel hypodermic tubing is medical grade tubing that has a lower carbon, higher corrosion resistance than 304/304L, making it especially suited for biomedical applications.
-
Hypodermic tubing begins as a strip of stainless steel. It is rolled, welded, then plug drawn to its final gage size. This process gives the tubing the appearance of being seamless, as well as holding tight tolerances on both the OD and ID. It is commonly referred to as needle tubing.
-
-
-

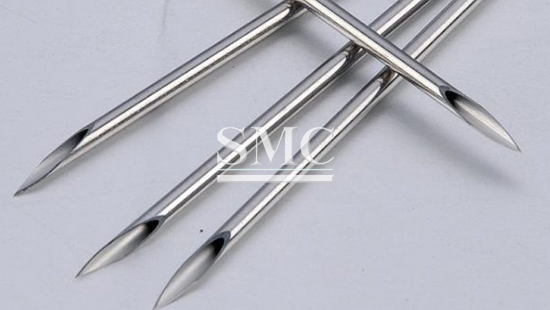

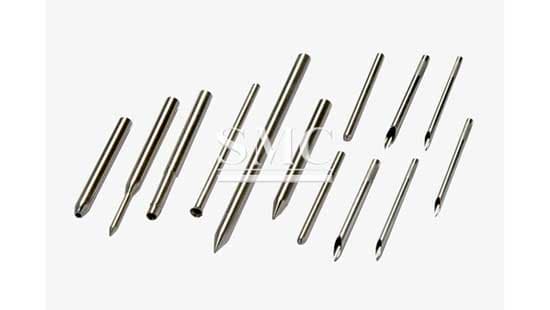

Hypodermic needles
Re-usable needles
Injection and transfer (blunt) needles

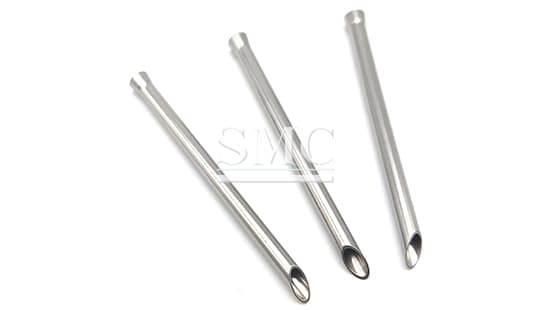

Custom needle cannulas
Medical, dental and veterinary tubular devices
-

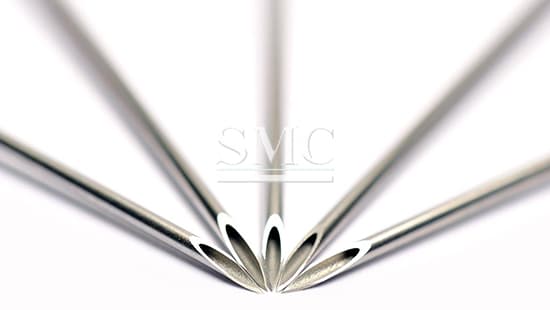

Hypodermic needles are normally made from a stainless-steel tube through a process known as tube drawing where the tube is drawn through progressively smaller dies to make the needle. The end is bevelled to create a sharp pointed tip letting the needle easily penetrate the skin. From straightforward cut and deburred tubes to complex medical devices or industrial parts, we have the capabilities and services to fabricate parts to your specifications. Custom fabricated machining examples of our work include cardiac surgical instruments, veterinary implants. Tube forming, tube swaging, and special finishes are easily handled by us.
-
If you want to know more about our Stainless Steel Hypodermic Tubing for Medical Needleproducts or price please feel free to contact us,we will reply you within 24 hours.

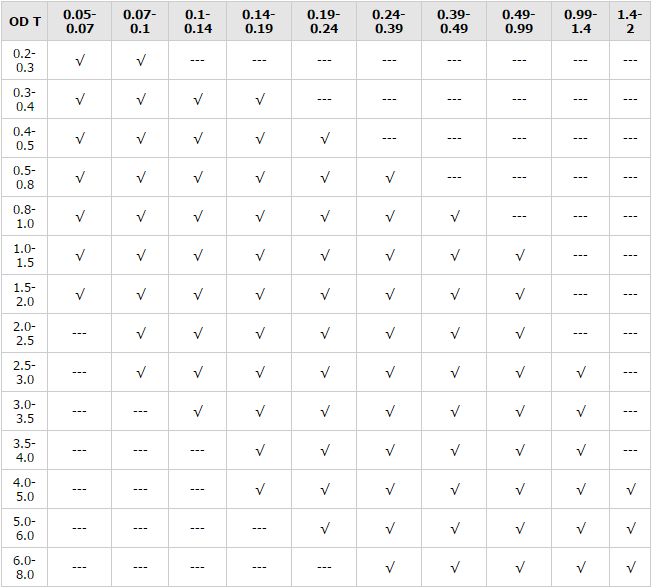

Dimensions of Stainless Steel Hypodermic Tubing:
Allowable Deviation:

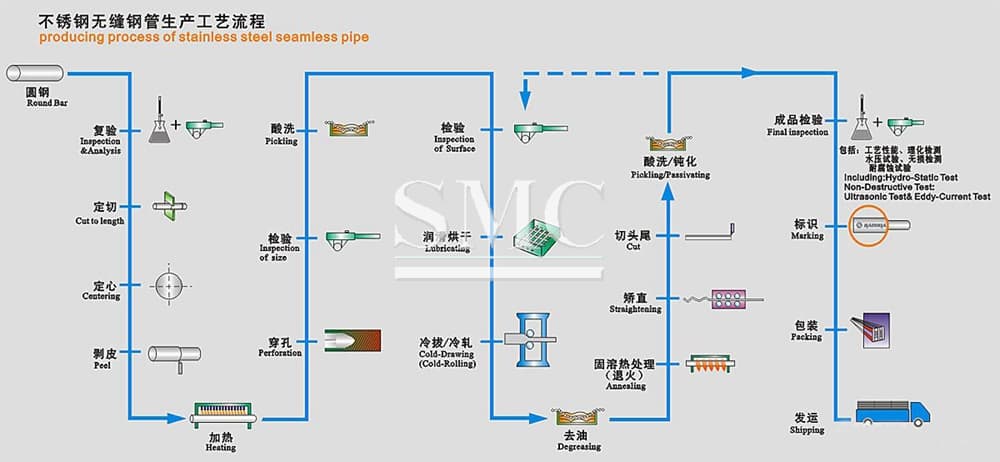

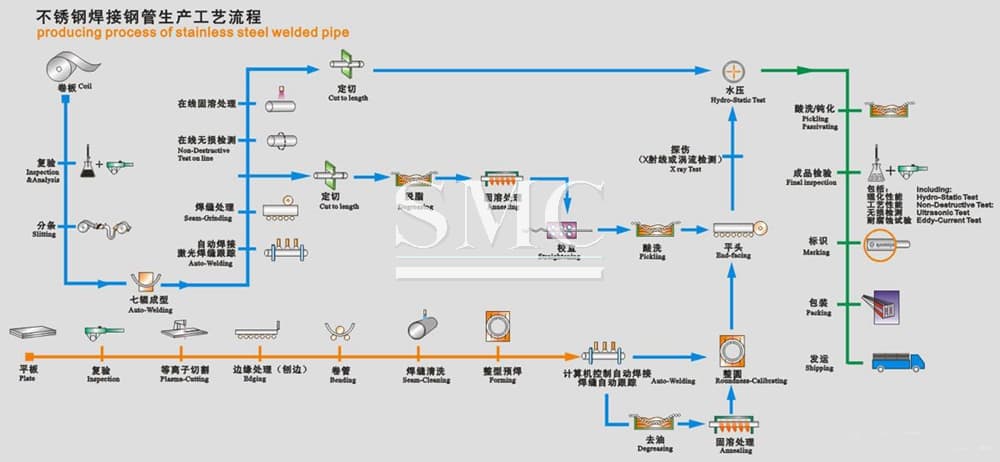

Manufacturing Process of Stainless Steel Pipes/Tubes:
The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.

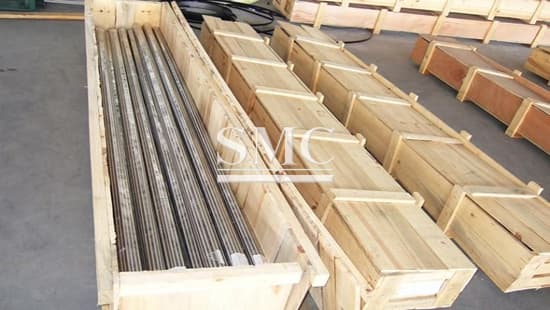

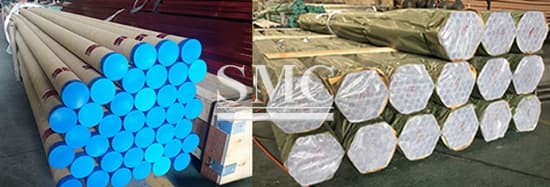

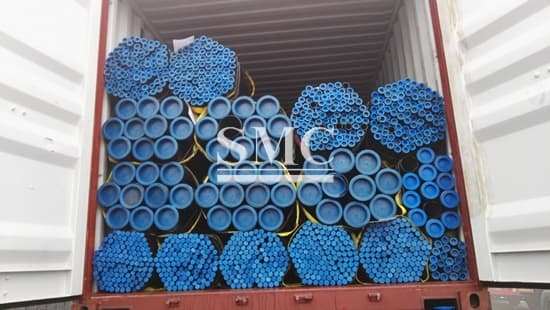

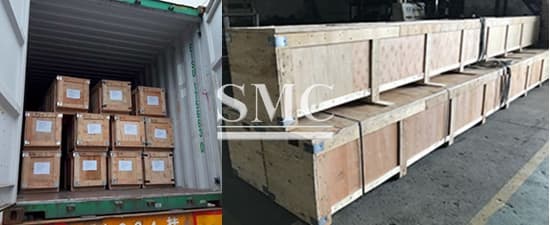

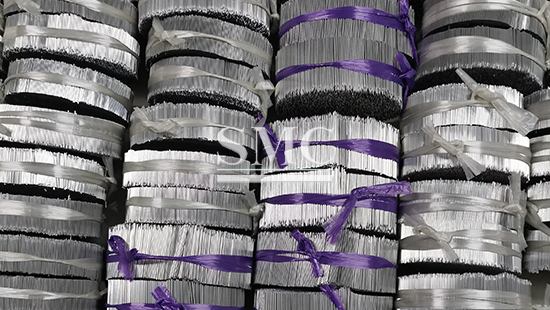

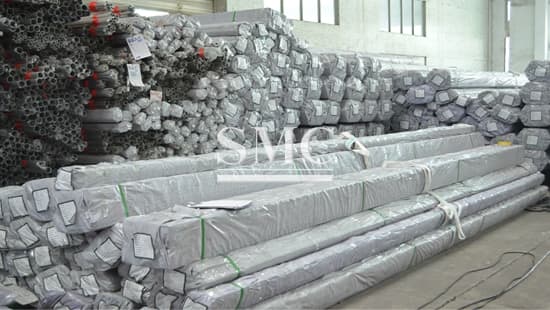

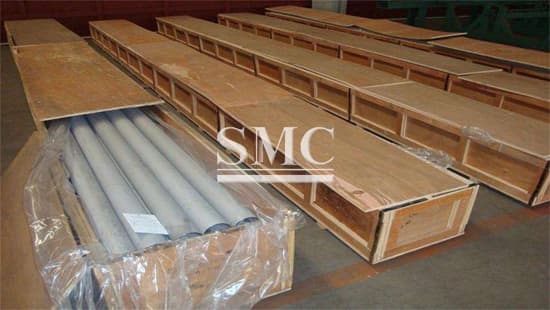

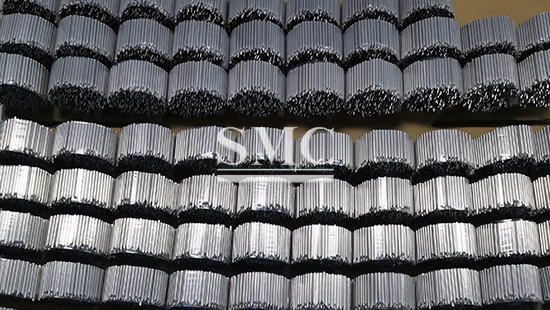

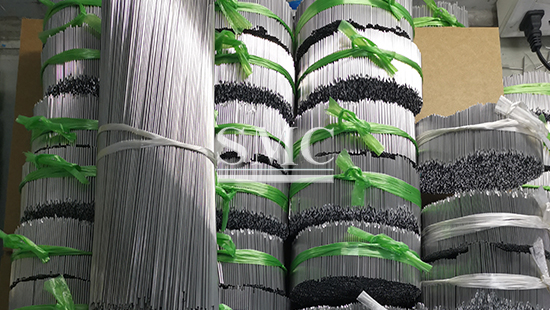

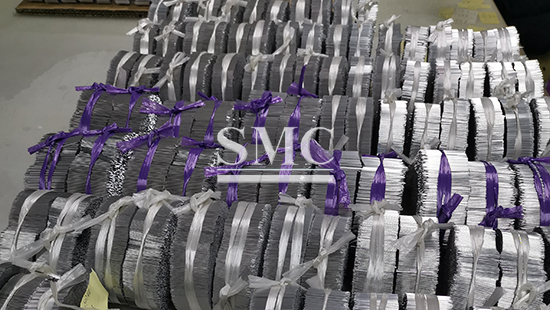

Packaging of Stainless Steel Tubes/Pipes:
Please don’t worry that our products are packed, stored, transported according to the international regulation. We do care about the quality of our products; even some little details are paid attention to.
We wrap the stainless steel products with export standard polyethylene bag to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, our storage racks are made of wood. Other kinds of metals are settled in other places, far from the stainless steel. Any unwanted chemical reaction can be prevented.
Applications of Stainless Steel Hypodermic Tubing:
1) Medical device industry
2) Temperature-guided industrial temperature control, sensors used pipe, tube thermometer
3) Pens care industry core tube
4) Micro-tube antenna, various types of small precision stainless steel antenna
5) A variety of electronic small-diameter stainless steel capillary
6) Jewelry needle punch
7) Laser engraving equipment
8) Fishing gear, accessories
FAQ
Q: Can you do polished finish for the tubes/pipes?
A: Yes, for welded tubes/pipes, we can do mirror polishing, 600# polishing, 500# polishing, 320# polishing, 240# polishing and so on, brushed finish is also available. For seamless tubes/pipes, normally the surface is pickled finish, while brushed finish is also doable.
Q: What’s your standard package?
A: Our standard package is waterproof plastic bags with wraps. For advanced packing, we can provide round paper tube for each tube, and wooden/metal case for exterior packing.
Q: Where’s your main market?
A: South America, Mid-east, South-east Asia, Europe and so on.
Q: Do you also have the accessories for the tubes?
A: Yes we can provide the accessories too.
Q: What length is your standard length? Can I have the tubes/pipes cut into the length I want?
A: Our standard length is 3meter, 4meter, 5meter, 6meter. If you length is less than 3meter, we will have to run an additional processing for cutting which will bring some more costs. The minimum length is 500mm. For seamless tubes, we can make maximum to 12, 13meters.
