Round tube: OD9.5-406.4mm; WT0.4-12.0 mm

Square tube: 10*10-150*150mm; WT0.4-6.0mm

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Stainless Steel Titanium Color Tube with high quality and reasonable price.

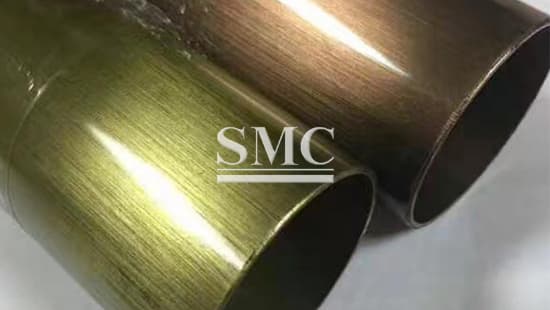

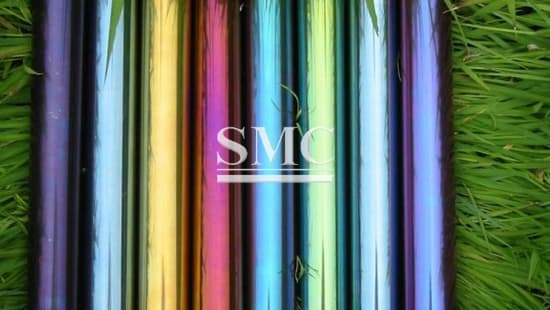

Stainless Steel Titanium Color Tube, also known as colored stainless steel tube is produced through the process of PVD (Physical Vapor Deposition) Titanium Ion Plating on stainless steel tube, which improves the performance by increasing wear, scratch and corrosion resistance making its durability far superior to conventional coating methods such as electroplating or powder-coating.

1. Material: 201, 202, 304, 304L, 316L, etc.

2. Round tubes: from 8mm x 0.5-1.2mm to 152mm x 1.2-6.0mm

3. Square tubes: 10mm x 10mm x 0.8-1.0mm – 150mm x 100mm x 1.2-6.0mm

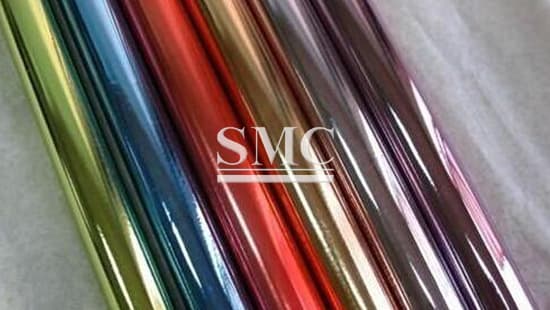

4. Optional Colors: Titanium black (Black titanium), sky blue, titanium, brown, purple, bronze, green, champagne gold, blue, pink gold, titanium white, green, copper, pink, gold, Colorful

5. Manufacturing Technology: PVD coating.

Color surface layer has strong corrosion resistance, high mechanical performance, prolonged no-fading, color with light irradiation angle in different colors changing characteristics, better ability to temperature resistance, salty fog corrosion resistance than stainless steel. Colored stainless steel plate has wear resistance and scratching resistance performance, which are equivalent to the performance of foil layer in gold coatings.

Elevator decoration, Stars Hotel, luxury villas, high-end brand stores, KTV, furniture, decoration and other large shopping malls, such as anti-theft doors and windows, railings, stair railings, outdoor construction, curtain nets stand, clothes bar, exhibition hall bracket etc.

We can also provide a variety of Stainless Steel Titanium Color Sheets to meet your demands. If you want to know more about Stainless Steel Titanium Color Tube price please feel free to contact us, we will reply you within 24 hours.

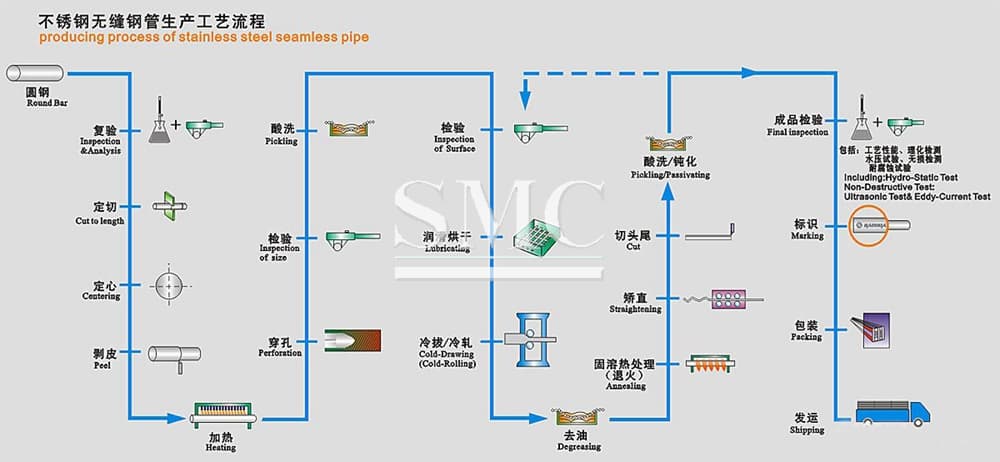

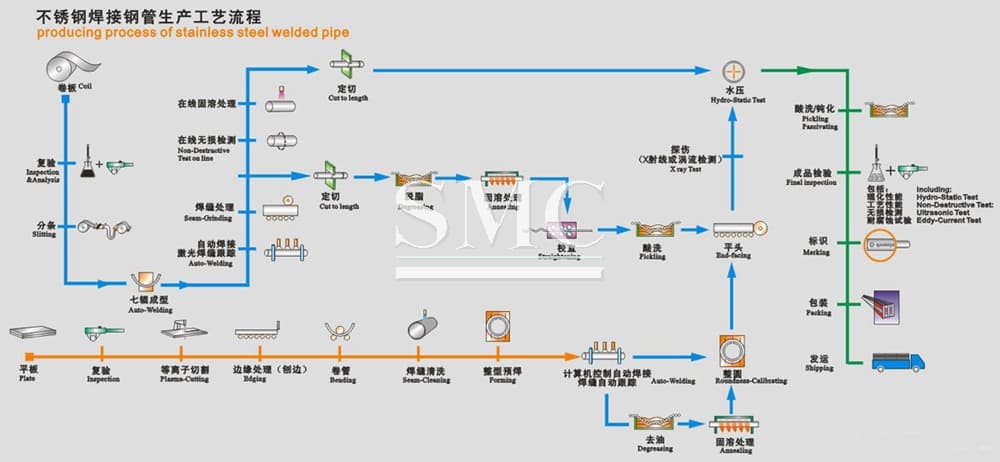

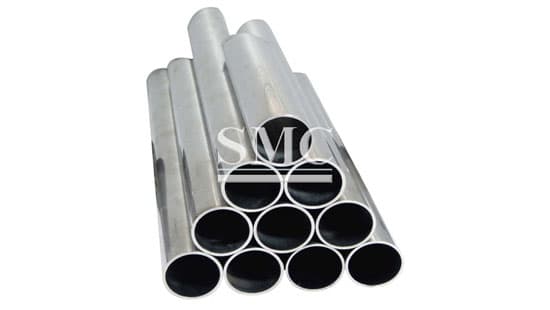

Manufacturing Process of Stainless Steel Pipes/Tubes:

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.

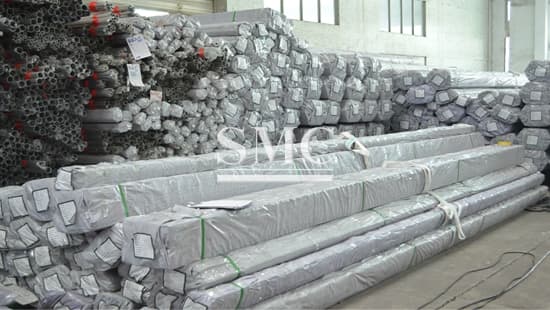

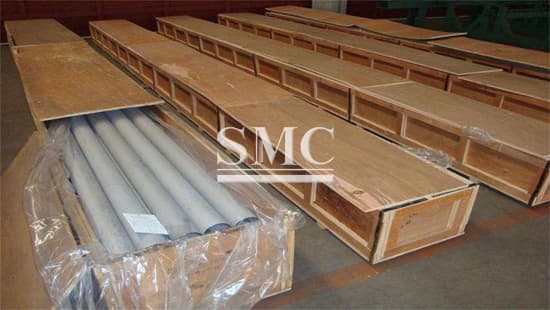

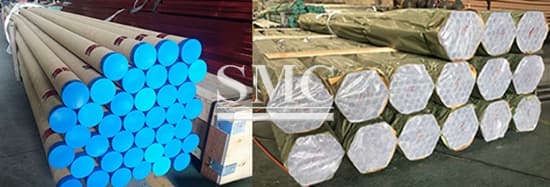

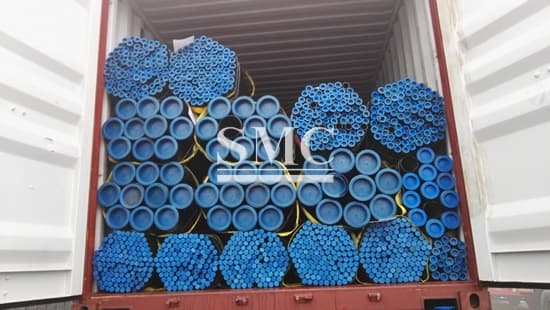

Packaging of Stainless Steel Titanium Color Tube:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization

Application of Stainless Steel Titanium Color Tubing:

1. Escalator, Elevator, Doors

2. Furniture

3. Upholstery

4. Rail, stair armrest

5. Window frame, etc

FAQ

Q: Can you do polished finish for the tubes/pipes?

A: Yes, for welded tubes/pipes, we can do mirror polishing, 600# polishing, 500# polishing, 320# polishing, 240# polishing and so on, brushed finish is also available. For seamless tubes/pipes, normally the surface is pickled finish, while brushed finish is also doable.

Q: What’s your standard package?

A: Our standard package is waterproof plastic bags with wraps. For advanced packing, we can provide round paper tube for each tube, and wooden/metal case for exterior packing.

Q: Where’s your main market?

A: South America, Mid-east, South-east Asia, Europe and so on.

Q: Do you also have the accessories for the tubes?

A: Yes we can provide the accessories too.

Q: What length is your standard length? Can I have the tubes/pipes cut into the length I want?

A: Our standard length is 3meter, 4meter, 5meter, 6meter. If you length is less than 3meter, we will have to run an additional processing for cutting which will bring some more costs. The minimum length is 500mm. For seamless tubes, we can make maximum to 12, 13meters.
