Stainless Steel Mesh

Stainless Steel Wire Mesh Padding

Grade: 304, 304L, 316, 316L, 2205, etc.

Size: 60 mesh x0.15mm, 60 mesh x0.12mm, 50 mesh x0.17mm, 50 mesh x0.15mm, etc.

80/60 mesh x 0.16mm, 102/60 mesh x 0.16mm

Model: BX500, CY700, etc.

Product Detail | Technical Information | Packaging

Product Detail

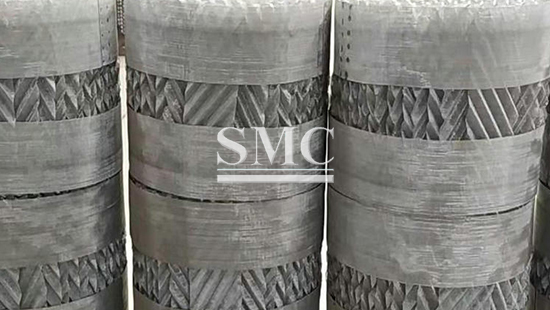

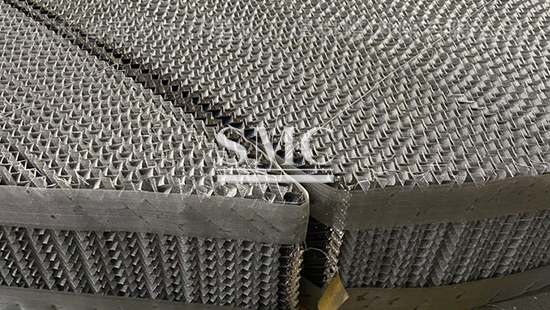

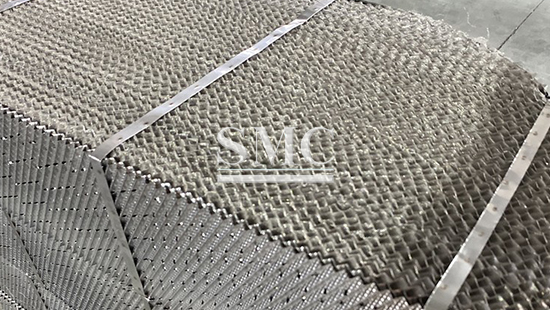

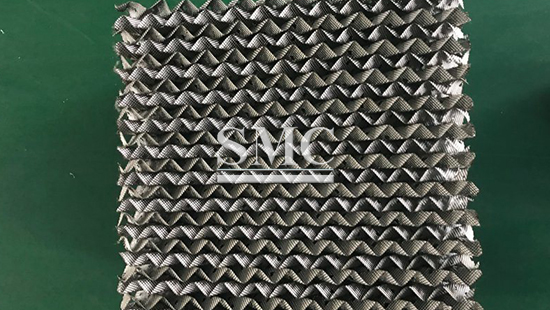

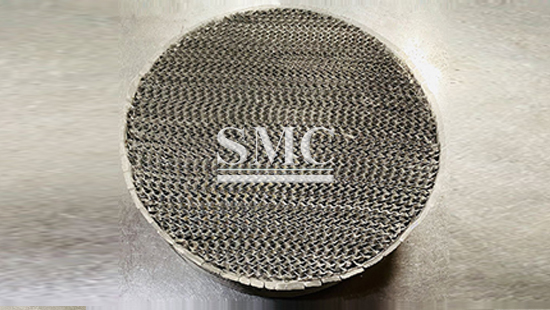

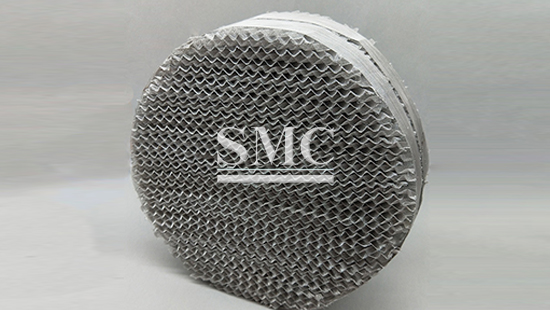

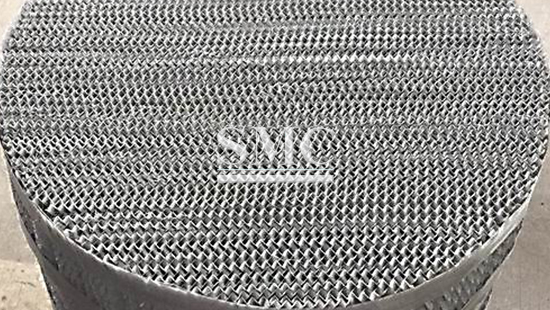

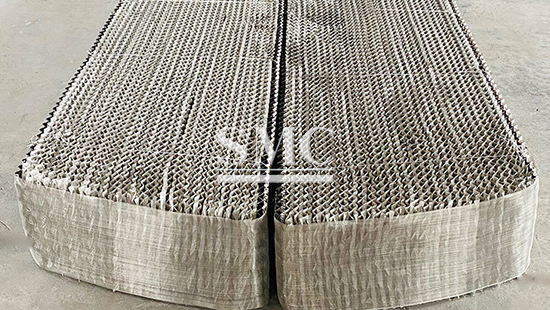

Stainless steel wire mesh padding is assembled by stainless steel wire mesh corrugated sheet. The padding forms a uniform geometric arrangement in the tower, the steam and liquid flow path is specified, and the phenomenon of channel flow and wall flow is improved. Due to the unique capillary effect of the mesh, the surface area has more effective wettability, low pressure drop and less liquid holdup, so it has a high separation efficiency. It is especially suitable for refractory and heat-sensitive systems. Widely used in petrochemical industry, such as refinery catalytic cracking distillation section, chemical fertilizer, natural gas, biological chemicals, environmental engineering and other broad fields. The tower equipment has a diameter of 3 meters, and the separation performance is higher than that of stainless steel corrugated packing. It is suitable for operating temperature below 400℃, and its temperature is unlimited for low temperature operation.

BX500 stainless steel wire mesh padding is especially suitable for vacuum distillation of heat-sensitive and difficult to separate materials, especially the operating pressure is less than 7KPa and requires more theoretical plates and low pressure drop; The total height hope is low; Test towers for industrial scale-up; Low liquid holdup; Where the humidity of the heating medium is limited. CY700 stainless steel wire mesh padding, generally used for isotope separation or the need for a large number of theoretical plates difficult to separate the precision fractionation of the system, can also be used for highly love to strict restrictions or requirements to achieve high purity products occasions. For example: nitrotoluene, isopropyl alcohol, ethylene oxide, methanol, ethanol, turpentine, C5-C9 synthetic fatty acids, sandalwood and many other petrochemical, fragrance, medicine, dye products.

If you want to know more about our stainless steel wire mesh padding price please feel free to contact us, we will reply you within 24 hours.

Wire diameter: 0.12mm, 0.15mm, etc.
Mesh: 40 mesh, 50 mesh, 60 mesh, etc.
Model: BX500, CY700,etc.

1. Theoretical plate number is high, flux is large, pressure is reduced;
2. Low load performance is good, the theoretical number of plates increases with the reduction of gas load, and there is almost no low load limit;
3. High flexibility of operation;
4. The amplification effect is unclear;
5. It can meet the requirements of precision, large and high vacuum distillation device. It provides favorable conditions for the distillation separation of difficult and heat sensitive systems and high purity products.

1. Dimethyl terephthalate rectification device, the use of stainless steel wire mesh padding, the benefit is significant.
2. The purity and output of BX500 stainless steel wire mesh padding used in phenol rectification tower have been greatly improved, and the effect is obvious.
3. Spice refining, the use of CY700 stainless steel wire mesh padding, falling film reboiler, non-leakage material pump composed of high-efficiency precision fractionator to produce high-purity materials, product purity, color, aroma are up to the international level of similar products, the yield is 2.5 times higher than the old tower, the benefit is significant.
4. In the formaldehyde refining device, the BX500 stainless steel wire mesh padding has also achieved unprecedented success.
5. For the separation of methanol in edible sprinkling solution, CY700 metal mesh corrugated filler was used to reduce the methanol content in alcohol from 0.24% to less than 0.06%, reaching the export standard.
6. Synthetic fatty acid separation, the use of CY00 metal wire mesh padding vacuum distillation, the purity of single carbonic acid up to 92-98%, proving that the tower high efficiency, low resistance, large production capacity, wide range of operation, suitable for the vacuum distillation of fatty acids.

Padding model	Material	Peak high (mm)	Compared to surface area (㎡/m³）	Hydraulic diameter (mm)	Angle of inclination	Voidage(%)	F-factor (m/s)	Theoretical plate (No/m)	Press drop (mmHG/m)
CY	Stainless steel	4.3	700	5	45°	87-90	1.3-2.4	6-9	5
BX	Stainless steel	6.3	500	7.3	30°	95	2-2.4	4-5	1.5

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard.

2)Customization.
