Standard Modular Activity Room - Basic Model

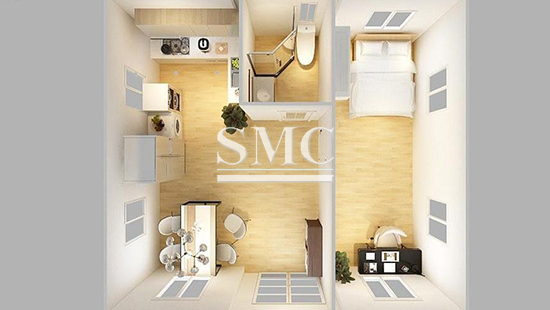

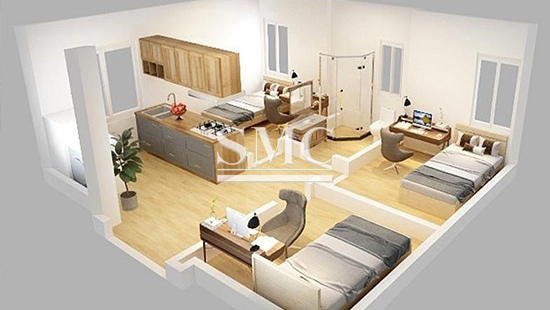

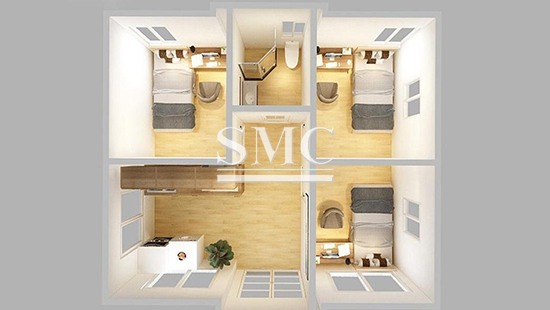

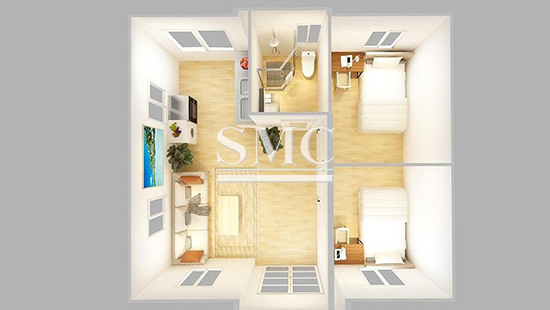

Main room types：Ordinary living room One bedroom, one living room, two bedrooms and one living room, Three bedrooms and one living room

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Standard Modular Activity Room - Basic Model with high quality and reasonable price.

Our room types are diverse, with basic designs that can be customized according to your living habits, aesthetic preferences, and spatial characteristics to meet your unique needs. Whether it is modern simplicity, European classical or pastoral style, ideal decoration styles can be achieved. Make full use of every corner of the house and improve space utilization through reasonable layout and design. And you can also choose different materials and furniture according to your budget and needs to create a high-quality living environment that suits you.

If you want to know more about Standard Modular Activity Room - Basic Model price please feel free to contact us, we will reply you within 24 hours

1. Size: 20ft,30,ft,40ft

2. Door: KFC Gate, Broken bridge aluminum door, Aluminum alloy glass door

3. Window: Broken bridge aluminum window, Aluminum alloy windows

4. Roof: hot-dip galvanized board

5. Balcony: Cement fiber board

1. Style: Modern, Nordic, New Chinese, Classical European

2. Function customization: book collection, cooking, wine storage, other

3. Coordinated color matching

4. Quality and process assurance

5. Environmental friendliness

Technical Information of Standard Modular Activity Room - Basic Model:

technical parameter for 20ft expandable container house
Basic information	Expand size(mm)LWH	590063002480	House type:One hall
	Internal size(mm)LWH	564061402240	Floor area:37m Total net weight2500KG
	Folde size(mm)LWH	590022002480	loading Quantity 2 set/40HQ
Frame structure	Main beam	Galvanized rectangletube 801002.5MM Q235
	Main column	Galvanized folding parts 1502102.0MM Q235
	Sub framework	Galvanized rectangle tube 40601.5MM 0235
	uifting components	Galvanized Steel plate 210150160*4MM Q235
	Hinge	Galvanized thickened hinges,Q235
floor	Middle floor	18mm CONCRETE FLOOR
	Floor onboth sides	18mm bamboo plywood
Therma insulaton materiale	wall	Sandwich panelColor roll double-sided 0.35mm.Sandwich materials incude rock wooLEPS optional.The standard sandwich material is 12kg/m³EPS
Electrical system	information	1. Equipped with electrical wires, sockets, and lighting 2.Circuit breaker system 2P63A main switch*1,2P43A/2P32A/IP20 Shunt leakage protector one each.
Door	Entrance door	Steel Security Doors(Customizable as broken bridge aluminum titanium magnesium alloy.aluminum alloy doors)
Window	window	Plastic steel double glass casement window(Customizable high-end Broker bridee aluminum window,aluminum allay windows)

technical parameter for 30ft expandable container house
Basic information	Expand size(mm)LWH	900063002480	House type:One hall
	Internal size(mm)LWH	874061402240	Floor area:54m Total net weight 3500KG
	Folde size(mm)LWH	900022002480	loading Quantity 1 set/40HQ
Frame structure	Main beam	Galvanized rectangletube 801002.5MM Q235
	Main column	Galvanized folding parts 1502102.0MM Q235
	Sub framework	Galvanized rectangle tube 40601.5MM 0235
	uifting components	Galvanized Steel plate 210150160*4MM Q235
	Hinge	Galvanized thickened hinges,Q235
floor	Middle floor	18mm CONCRETE FLOOR
	Floor onboth sides	18mm bamboo plywood
Therma insulaton materiale	wall	Sandwich panelColor roll double-sided 0.35mm.Sandwich materials incude rock wooLEPS optional.The standard sandwich material is 12kg/m³EPS
Electrical system	information	1. Equipped with electrical wires, sockets, and lighting 2.Circuit breaker system 2P63A main switch*1,2P43A/2P32A/IP20 Shunt leakage protector one each.
Door	Entrance door	Steel Security Doors(Customizable as broken bridge aluminum titanium magnesium alloy.aluminum alloy doors)
Window	window	Plastic steel double glass casement window(Customizable high-end Broker bridee aluminum window,aluminum allay windows)

technical parameter for 40ft expandable container house
Basic information	Expand size(mm)LWH	1180063002480	House type:One hall
	Internal size(mm)LWH	1154061402240	Floor area:72m Total net weight 5000KG
	Folde size(mm)LWH	1180022002480	loading Quantity 1 set/40HQ
Frame structure	Main beam	Galvanized rectangletube 801002.5MM Q235
	Main column	Galvanized folding parts 1502102.0MM Q235
	Sub framework	Galvanized rectangle tube 40601.5MM 0235
	uifting components	Galvanized Steel plate 210150160*4MM Q235
	Hinge	Galvanized thickened hinges,Q235
floor	Middle floor	18mm CONCRETE FLOOR
	Floor onboth sides	18mm bamboo plywood
Therma insulaton materiale	wall	Sandwich panelColor roll double-sided 0.35mm.Sandwich materials incude rock wooLEPS optional.The standard sandwich material is 12kg/m³EPS
Electrical system	information	1. Equipped with electrical wires, sockets, and lighting 2.Circuit breaker system 2P63A main switch*1,2P43A/2P32A/IP20 Shunt leakage protector one each.
Door	Entrance door	Steel Security Doors(Customizable as broken bridge aluminum titanium magnesium alloy.aluminum alloy doors)
Window	window	Plastic steel double glass casement window(Customizable high-end Broker bridee aluminum window,aluminum allay windows)

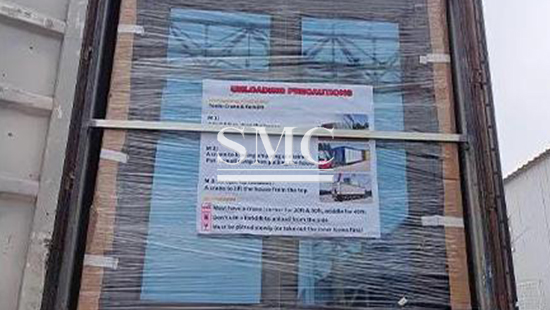

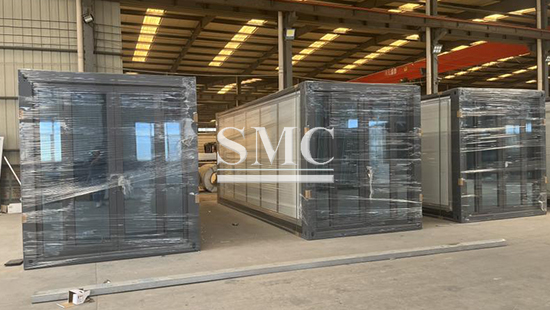

Packaging of Standard Modular Activity Room - Basic Model:
