Steel Grating

Steel Stair Tread

    Type: JT1-JT8


    Nosing: no nosing/Checkered plate/vertical striped plate/vertical striped plate nosing


    Material: ASTM A36/SS235JR/SS400/Q235B

Shanghai Metal Corporation is a leading Steel Stair Tread manufacturer and supplier. The tread plate is also called a stair tread plate, a steel ladder tread plate and a ladder pedal. It is a kind of stair plate for the platform. The installation method has two types: welding connection and bolt connection. The welded fixed tread plate can be directly welded to the ladder on the beam. The welded fixed tread plate is directly welded to the ladder beam, and the side plate of the tread plate is not required to be added. It is relatively economical and durable but not easy to disassemble. The bolted tread plate needs thickened side plates on both sides, and the side plate is drilled. The installation is fixed directly by bolts and can be recycled and reused. Customers can customize according to their actual needs, and can be made into various sizes with suitable types of steel gratings to match the corresponding stairs. If you want to know more about our construction products or Steel Stair Tread price please feel free to contact us, we will reply you within 24 hours.

Specifications of Steel Stair Tread:

1. Surface treatment: Hot-dip galvanizing, painted or other anti-corrosive coatings are available, of which hot-dip galvanizing is generally recommended
2. Size: tread length by width, the length direction of tread refers to the width direction of ladder
3. Material: ASTM A36/SS235JR/SS400/Q235B
4. Standards: YB/T4001.1-2007, ANSI/NAAMM, BS4592, AS1657
5. Bearing bar pitches can be 12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mmare recommended
6. Cross bar pitches can be 38, 50, 60,100mm, of which 50mm & 100mm are recommended

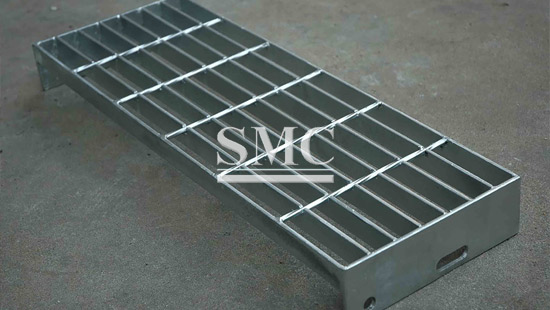

Types of Steel Stair Tread:

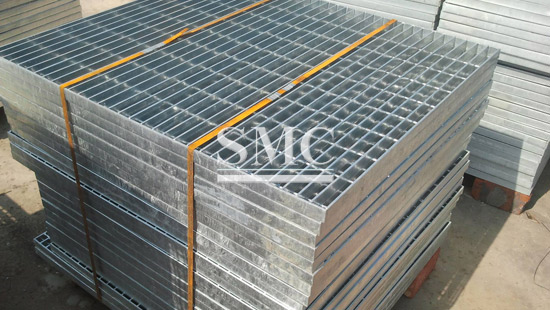

Package of Steel Stair Tread:



Shanghai Metal Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.

Features of Steel Stair Tread:


- Easy installation

- Strong structure

- Aesthetic appearance

- Good water permeability

- Quality assurance
