Other Machinery

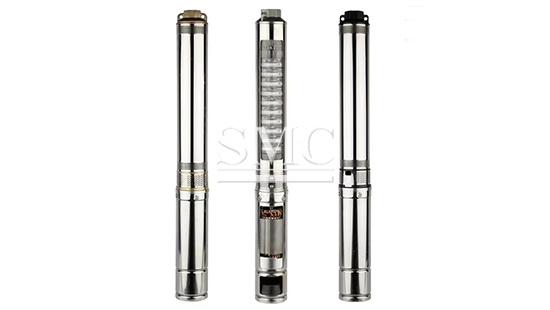

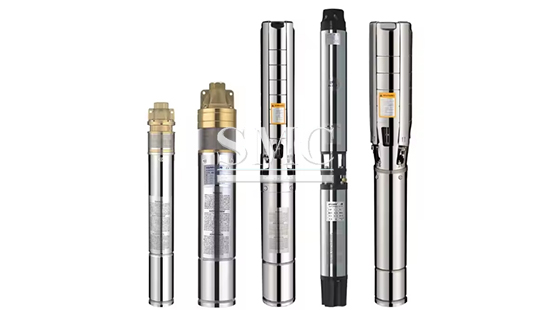

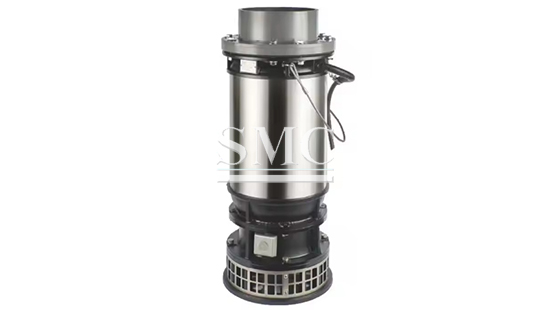

Submersible Motor

    Power Range: single-phase/ three-phase



    Cooling Flow: min. 0.08m/s



    Max. Startup Times: 20 times/h

Shanghai Metal Corporation is a professional manufacturer and supplier of Submersible Motor with high quality and reasonable price.

Submersible motor is an advanced production technology and equipment, using high quality stator winding with special self-healing resin fixed in the fully sealed stainless steel stator shell. Because of fixed and not contact with liquid, stator winding avoids possible water impact and wear, and has been good mechanical protection. The special resin has good heat conduction performance to improve the motor cooling conditions with organic environmental cooling liquid as a lubrication system through the check valve filter system in the motor running process at any time from the well automatically replenished. The application of this technology avoids the problem of water pollution caused by sealing problem. Therefore, the motor has the advantages of energy saving, environmental protection and durability.

If you want to know more about Submersible Motor price please feel free to contact us, we will reply you within 24 hours


Technical information of Submersible Motor:



4" Submersible Motor (220V/230V   50HZ/60HZ)

power

single-phase current

rev
(rpm)

length
(cm)

weight
(kg)

KW

HP

A

0.25

0.33

3.0

2830

290

7

0.37

0.5

3.6

2830

315

8

0.55

0.75

4.8

2830

355

8

0.75

1

6.3

2830

360

9

1.1

1.5

8.6

2850

390

11

1.5

2

10.6

2850

435

12

2.2

3

14.0

2850

480

14

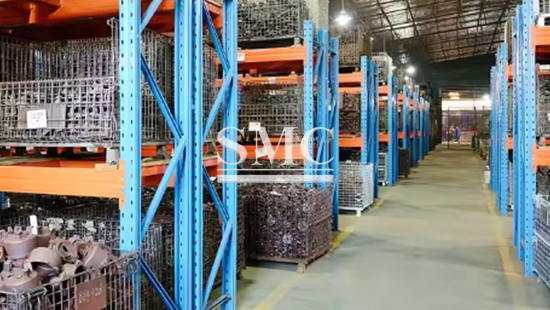

Packaging of Submersible Motor:
