Product Detail

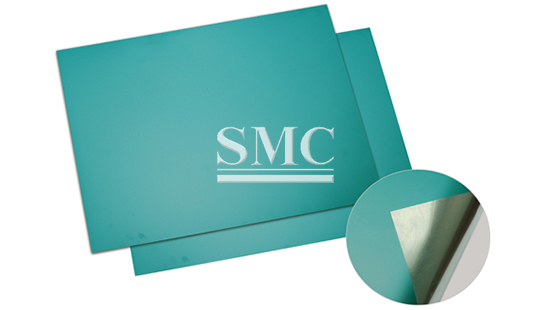

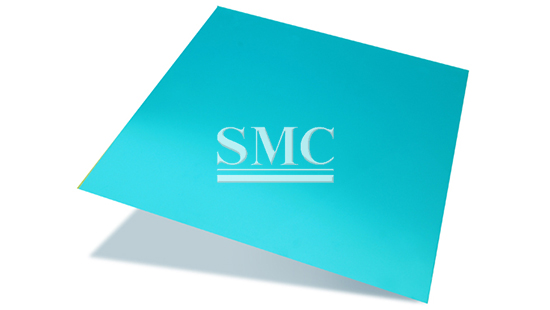

Shanghai Metal Corporation is a leading PS plate, CTCP plate and thermal CTP plate manufacturer and supplier.

Shanghai Metal Corporation is a manufacturer specializing in the production of PS plate, CTCP plate and CTP plate. The company has sophisticated production equipment and strong technical force. It has a domestic first-class modern fully automatic, fully enclosed continuous reel-type PS production line. Its automatic system is fully imported. It can produce a variety specification of widths below 1400mm and thicknesses from 0.15 to 0.30mm. The product quality is stable and reaches the domestic advanced level. The company's products have passed ISO9001 international quality system certification. Our company is based on the business philosophy of people-oriented, encouraging progress and scientific management; creating excellent quality, serving customers with integrity, and opening up international markets, to provide you with quality products and the most perfect after-sales service. We sincerely welcome friends and customers from the printing industry at home and abroad to visit and cooperate closely!

If you want to know more about our PS plate, CTCP plate and CTP plate, Sublimation Aluminum Sheet, please feel free to contact us. We will reply to you within 24 hours.

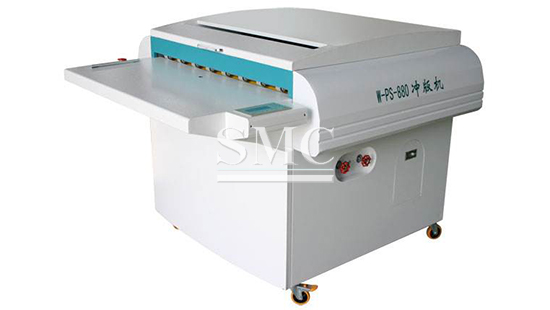

Developing machine

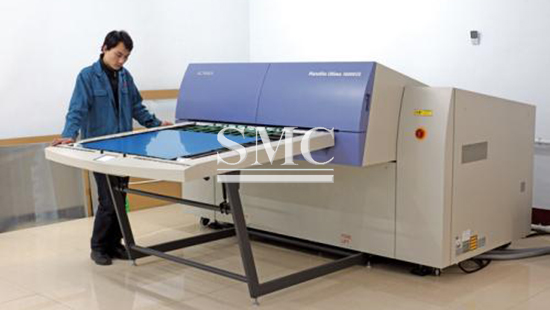

Plate-making machine

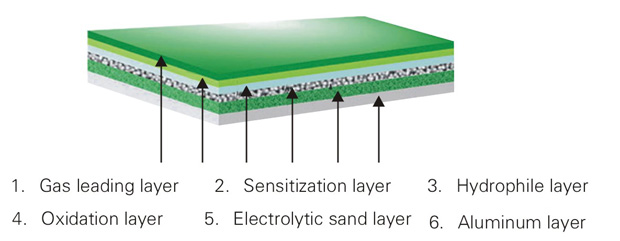

Composite mesh structure, precise mesh reduction, stable performance

Simple operation and strong compatibility

High sensitivity and short exposure time

UV resistant ink

Large developing latitude

High printing resistance

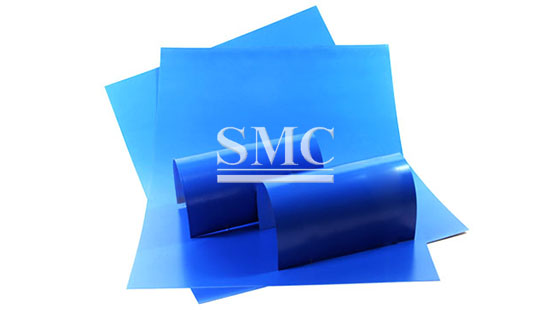

Techinical Information of Thermal CTP Plate:

Product	Aluminium Printing Plates
Aluminum alloy	Standard 1050 alloy
Spectrum of sensitivity	380-420NM
Coating Weight	2.1-2.4g/m2
Anodizer Layer Weight	2.5-3.5g/m2
Ra Grain Roughness	0.45-0.85
Resolution	1%-99%(2400dpi)
Impression Run	50000-100000
Exposure	The UV metal halogen lamp is recommended
Exposure Quantity	140mj/cm2
Exposure Time	70-90s with 3000W iodine gallium lamp(1 meter distance); 40-60s with 5000W iodine gallium lamp(1 meter distance)
Development	Manual or Processor
Temperature	23℃±2℃
Storage Conditions	Temperature of 10-30℃, relative humidity no more than 65%, pile height less than 1.5 meters and keep away from light, heat and chemicals
Storage Term	24 months

Product	BTP-8 Thermal CTP Plate
Thickness	0.15mm, 0.25mm, 0.30mm
color	Green
Spectral of sensitivity	830nm
Resolution	2~98%＠200lpi
Exposure Energy	110~120mJ/cm2
Develop Temperature	22℃-24℃
Develop Time	25±5 Seconds
Impression Run	＞50000 copies，＞150000 copies after baked
Storage Conditions	keep in the dark,cool and dry place ,the temperature of 5-30℃.
Storage Term	18 months

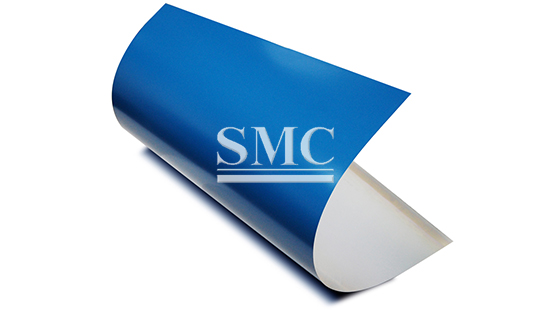

TYPE	Positive ctcp plate
Aplication	High quality commerical color priting & newspaper printing
Thickness	0．15mm 0.25mm,0.30mm
Spectral Sensitivity	Uv light
Energy	50-65MJ/m2
Run length	50000—80000
Color	Green
Process	Normal process
Safelight	Yellow light

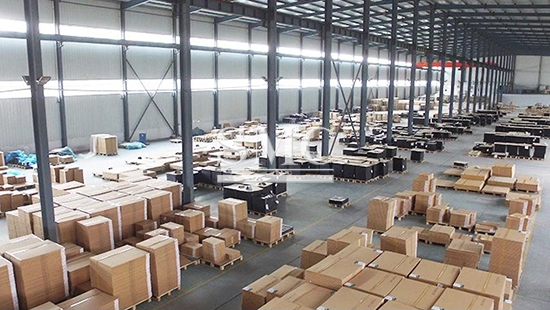

Pacakge of Thermal CTP Plate:

Export Wooden Case Pacakge

Paper Pacakge + Wooden Pallet
