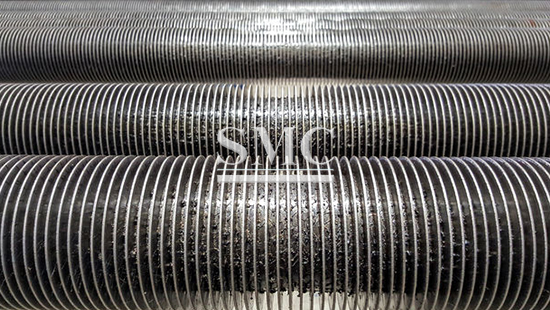

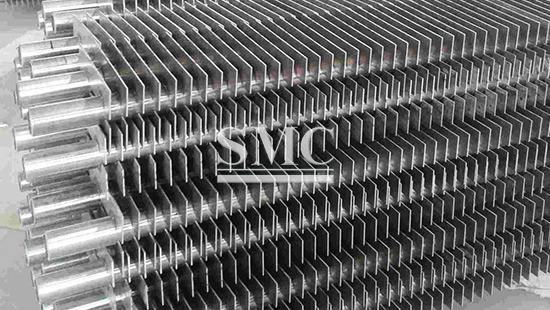

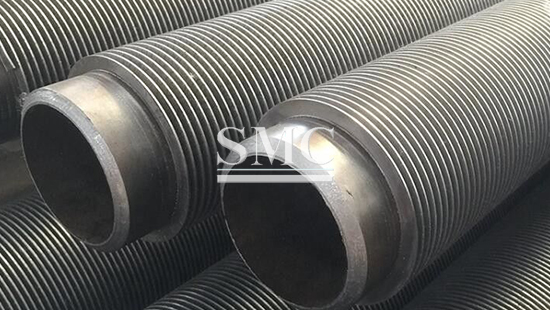

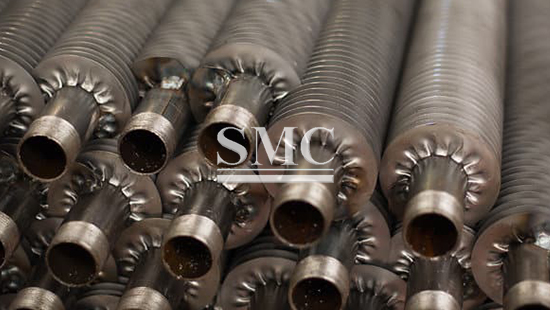

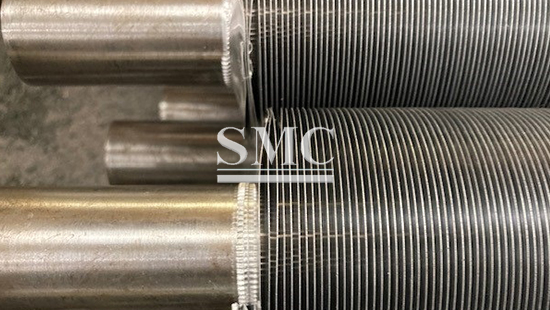

Welded Steel Finned Tube
Standard: ASTM A192, ASTM A179, ASTM A210
Grade: ASME SA106/ ASTM A106 Gr B Gr C
Size: OD: 12.7-152mm, WT: 0.5mm - 4mm
Shanghai Metal Corporation is Welded Steel Finned Tube manufacturer and supplier.
There are many types of finned tubes. Although high-frequency welding finned tubes are more advanced in terms of product quality and production automation compared with inlay and brazing methods. Due to its factors such as difficulty in welding the root and wrinkles at the root cause many shortcomings in heat exchange efficiency and fouling prevention. By comparison, the laser-welded finned tube is the most advanced product of irreplaceable advantages. It has a high penetration rate, can prevent crevice corrosion, prolong service life and reduce heat transfer resistance. Breaking through material restrictions. And it can use different materials for processing, saving material costs, and easy for secondary processing.
If you want to know more about our Welded Steel Finned Tube price, please feel free to contact us, we will reply you within 24 hours.
Advantages of Welded Steel Finned Tube:
Provide 8 to 12 times the heat transfer area of bare tubes.
More efficient than bare tubes.
Provide smaller exchangers due to increased Heat Transfer area.
Often provide a more economical selection.
Fins can be "Cut & Twist" to increase shell side fluid turbulence and improve heat transfer.
|

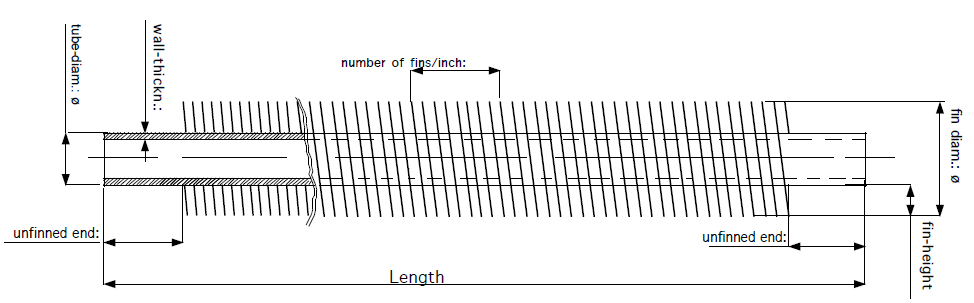

Base Tube O.D (mm) |
Base Tube Thickness (mm) |
Fin Height (mm) |
Fin Thickness(mm) |
Fin NO.(Pc) |
|
25.4 mm ~152.4 mm |
1.0 mm ~4.0 mm |
5.0 mm ~16.0 mm |
0.89 mm ~1.5 mm |
2 ~ 36 |
|
Base Tube Material |
Fin Material |
Tube Length (Mtr) |
|
|
|
Carbon Steel, Alloy Steel |
Carbon Steel, Alloy Steel |
≤ 15Mtrs |
|
|
Packaging of Welded Steel Finned Tube:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product and quality information.
1)SMC Standard
2)Customization
