Wire Diameter: 3mm-5mm

Hole: 2''x2'', 3''x3'', 4''x4''

Size: 0.61mx0.61mx3.05m

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading Explosion-proof Wall manufacturer and supplier.

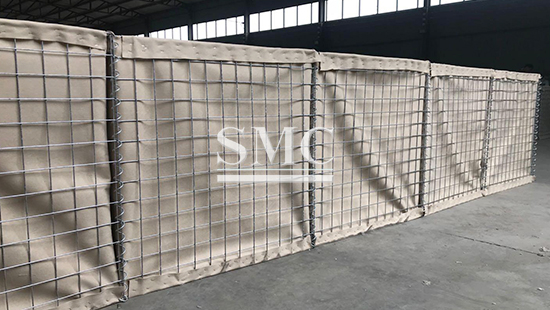

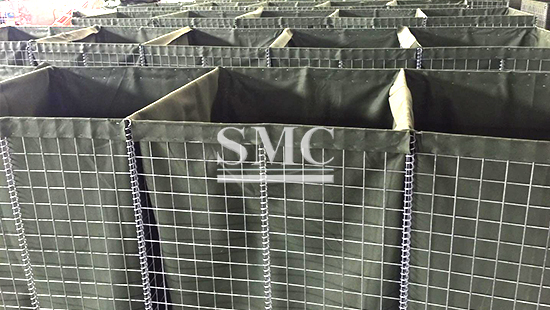

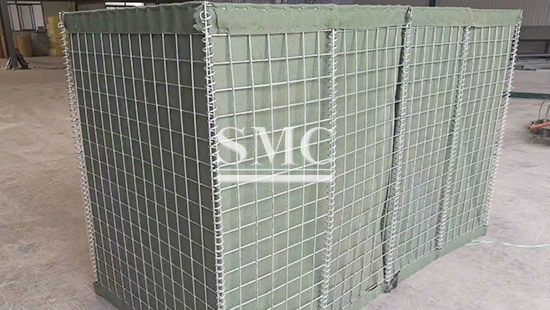

Explosion-proof wall is also known as explosion-proof fortress, welding lattice, stone cage net, explosion-proof net. Explosion-proof net cage products are assembled by electric welding gabion mesh and geotextile. Explosion-proof Wall is made of low carbon steel wire, welded with special welding process, its yield, welding strength and other indicators are greatly improved, surface treatment using hot dip galvanized or zinc aluminum alloy and other processes, greatly improve its corrosion resistance. Geotextile has flame retardant and UV resistance, which greatly improves its safety and service life during transportation and installation, and geotextile color is generally beige or army green.

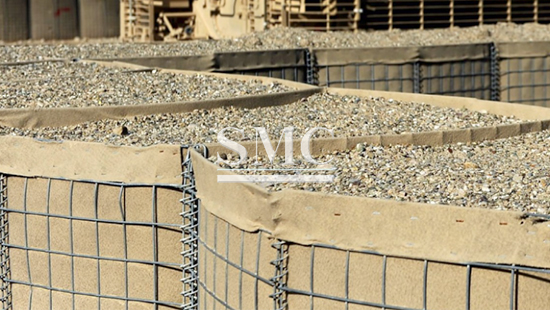

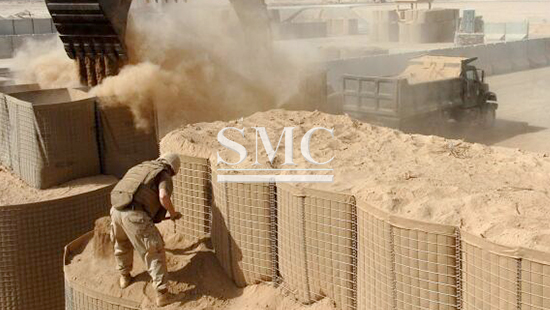

Explosion-proof Wall is an important form of protection in modern war and flood control, in practical application, by filling the cage with stone, sand or soil, filling materials, especially suitable for use in the downstream of the river or the beach where the stone is lacking. With the help of tools such as excavators and forklifts, the installation effect is dozens or even hundreds of times that of traditional sandbags.

If you want to know more about our Explosion-proof Wall prices please feel free to contact us, we will reply you within 24 hours.

1. Wire diameter: 4mm

2. Hole: 3''x3''

3. Size: 0.61x0.61mx1.22m, other sizes can be produced as requested

4. Geotextile: 2mm thick, khaki/green, it can vary according to the environment

5. Surface treatment: electroplating, hot plating, galalum

1. Easy to transport folding packaging, strong mobility

2. Easy installation and easy operation

3. With high strength impact resistance

4. The product has a long service life and can be reused

5. Strong tension, corrosion resistance

1. Flood protection wall

2. Anti-landslide facilities.

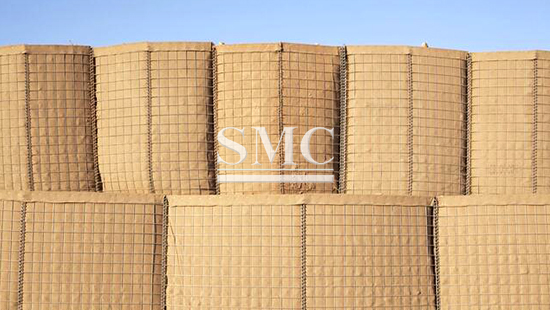

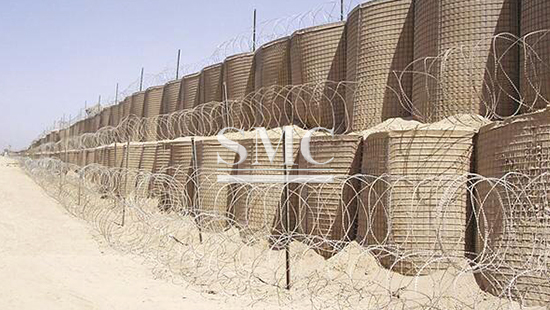

3. Military security explosion wall

4. Explosion-proof wall of dangerous goods warehouse

5. Explosion walls of chemical plants

Technical Information of Explosion-proof Wall:

Standard sizes	Height	Width	Length	Cells
SMC-1	54''(1.37m)	42''(1.06m)	32'9''(10m)	4+5 cells
SMC-2	24''(0.61m)	24''(0.61m)	4'(1.22m)	2 cells
SMC-3	39''(1.00m)	39''(1.00m)	39''(1.00m)	5+5 cells
SMC-4	39''(1.00m)	60''(1.52m)	32'9''(10m)	5+5 cells
SMC-5	24''(0.61m)	24''(0.61m)	10'(3.05m)	5 cells
SMC-6	66''(1.68m)	24''(0.61m)	10'(3.05m)	5 cells
SMC-7	87''(2.21m)	84''(2.13m)	91'(27.74m)	4+4+5 cells
SMC-8	87''(2.21m)	48''(1.22m)	32'9''(9.14m)	4+5 cells
SMC-9	39'(1.00m)	30''(0.76m)	30'(9.14m)	6+6 cells
SMC-10	87''(2.21m)	60''(1.52m)	100'(30.5m)	5+5+5+5 cells
SMC-11	48''(1.22m)	12''(0.3m)	4'(1.22m)	4 cells
SMC-12	84''(2.13m)	42''(1.06m)	108'(33m)	5+5+5+5+5+5cells
SMC-19	84''(2.13m)	42''(1.06m)	10'5''(3.18m)	3 cells

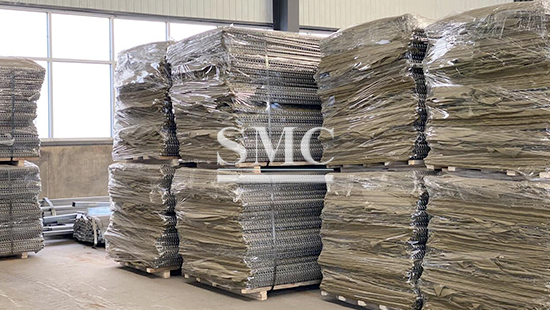

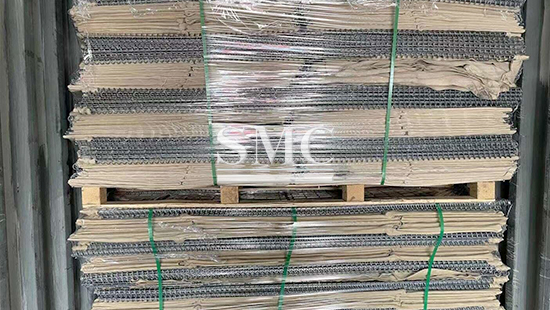

Packaging of Explosion-proof Wall:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization
