Panel Thickness Range: 10–100 mm (standard: 18, 22, 30, 50, 75 mm)

Standard Panel Size: 1220 × 2440 mm

Max Available Length: 16,000 mm

Core Material: Polyurethane (PU) rigid foam

Surface Material: Fiberglass reinforced plastic (FRP) with gelcoat

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading fiberglass PU foam sheet manufacturer and supplier.

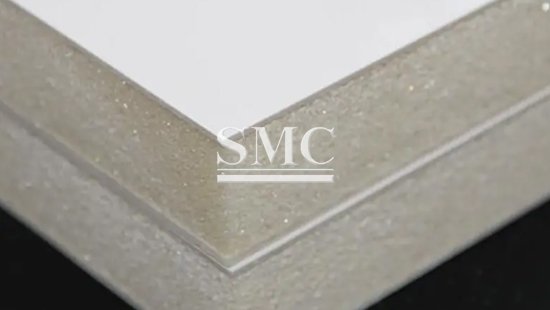

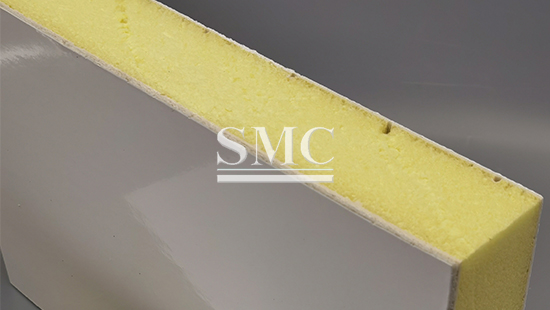

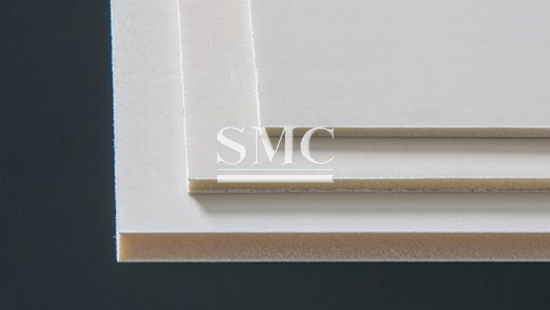

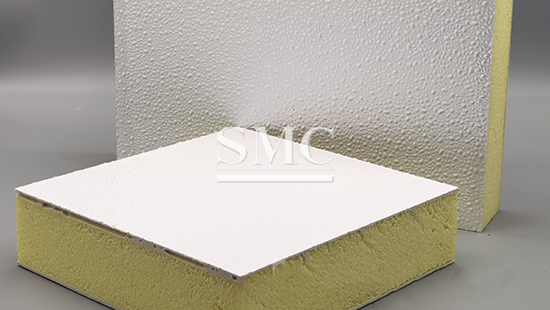

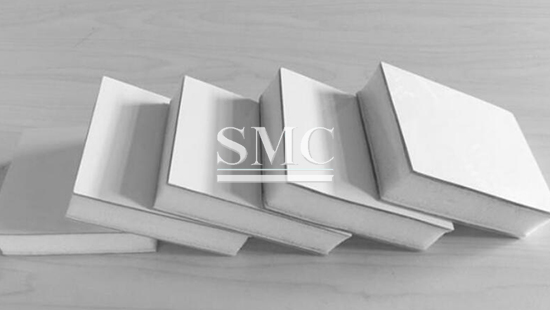

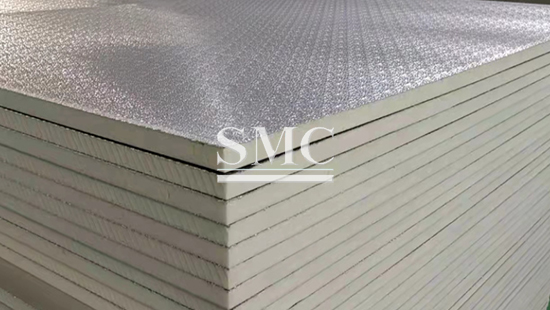

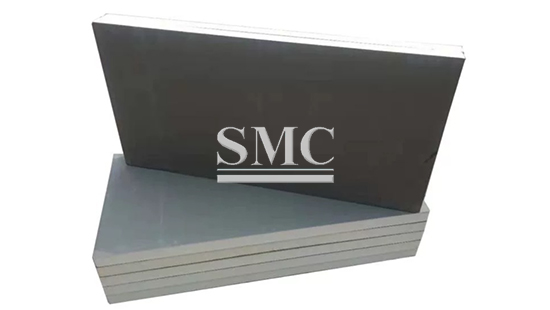

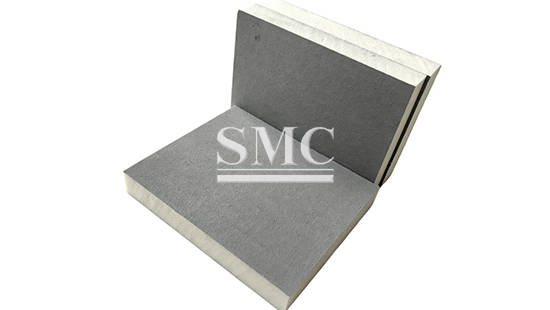

Fiberglass PU foam sheet is a composite sandwich panel consisting of prefabricated fiberglass reinforced plastic (FRP) skins, high-strength fiberglass check cloth, and a rigid polyurethane foam core, bonded together through a vacuum high-pressure process. The surface is finished with internationally certified food-grade color gelcoat. The PU foam core can be substituted with XPS, EPP, PVC, or PET foam to modify density, fire performance, and cost. This composite sheet can be cut, drilled, routed, and bonded for downstream structural and insulation assemblies. It serves as thermal insulation panel, structural wall panel, and cold-chain enclosure material in harsh working conditions. Unlike ordinary single-layer foam board, fiberglass PU foam sheet provides excellent thermal insulation, high mechanical strength, and corrosion resistance in continuous operation. We supply standard panels and can customize thickness, color, and dimensions according to customer requirements.

If you want to know more about fiberglass PU foam sheet or other related fiberglass products, please feel free to contact us, we will reply you within 24 hours.

1.Standard Fiberglass PU Foam Sheet: Natural or custom RAL color gelcoat surface. PU foam core density 30–35 kg/m³.

2.High-Density Fiberglass PU Foam Sheet: Higher core density and thicker FRP skins. Improved compressive strength and structural load capacity.

3.XPS Core Fiberglass Foam Sheet: Extruded polystyrene core instead of PU. Lower cost, good moisture resistance.

4.Food-Grade Fiberglass PU Foam Sheet: FDA-approved gelcoat surface. Non-toxic and easy to clean.

5.Thin Fiberglass PU Foam Sheet (10–30 mm): Lightweight insulation layer for interior partition, vehicle cab, and equipment casing where space is limited.

1.Excellent Thermal Insulation Performance: PU rigid foam core provides thermal conductivity ≤0.025 W/m·K. Maintains stable temperature inside refrigerated enclosures and building envelopes, reducing energy consumption and temperature fluctuation.

2.High Mechanical Strength & Impact Resistance: Fiberglass reinforced plastic skins offer high tensile strength (≥0.85 MPa flat tensile) and impact resistance.

3.Comprehensive Water & Moisture Resistance: Polyurethane foam is a closed-cell material (≥90% closed cell). It resists water absorption and moisture penetration, extending panel lifespan and reducing maintenance needs in humid or wet environments.

4.Reliable Chemical & Corrosion Resistance: FRP skin resists most chemicals, salt spray, and UV exposure.

5.Good Secondary-Processing Adaptability: Supports cutting, drilling, routing, sanding, bonding, and laminating with conventional tools.

1.Refrigerated Truck & Trailer Body: Suitable for cold-chain transport vehicle interior and exterior panels. Provides thermal insulation and structural rigidity. Standard and food-grade grades are commonly used.

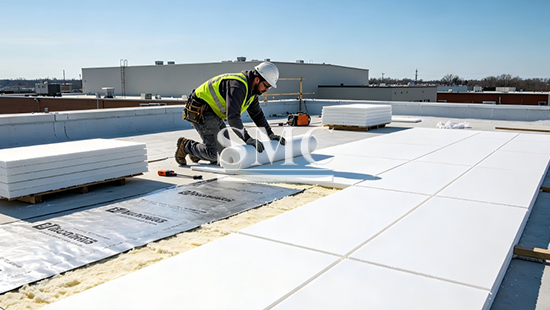

2.Building Exterior & Roof Insulation: Used as exterior wall cladding, roofing panels, and structural insulation boards. Offers thermal management and weather resistance for commercial and industrial buildings.

3.Marine & Offshore Structure: Applied for ship cabin partitions, deck insulation, and offshore platform enclosures. Resists salt water corrosion and humidity.

4.Portable Shelter & Mobile Office: Serves as wall and roof panels for temporary housing, communication shelters, and power station enclosures. Lightweight and easy to assemble with CKD aluminum profiles.

5.Cold Storage & Food Processing: Used for cold room walls, sanitary partition, and food processing facility surfaces. Food-grade gelcoat meets hygiene requirements and is easy to clean.

Technique information:

No	Description	Value
1	Thermal conductivity	≤0.025 w/m.K
2	Pasteurization hardness	≥40
3	Flat compression strength	≥0.18MPa
4	Side pressure strength	≥2MPa
5	Flat tensile strength	≥0.85 MPa
Note: There is an I-shaped FRP pultrusion profile in the middle of the flat tensile strength sample, and there is no I-beam in the flat compression and side compression strength sample. Conditions for checking the thermal conductivity: Average temperature 25℃, temperature difference 15 ℃

We can supply the parts required for the rapid assembly of CKD. These parts are high strength aluminum profiles, which makes the assembly more convenient and fast.

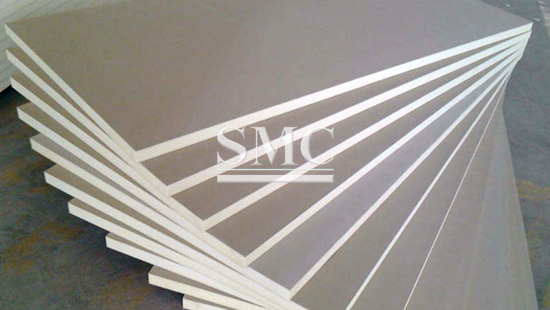

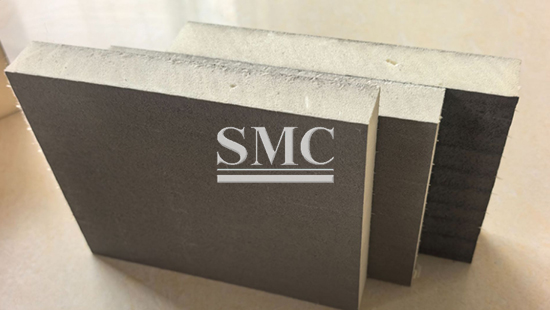

Fiberglass foam core sheet can choose different core materials, PU polyurethane foam core, XPS polystyrene foam core, EPP foam core, PVC foam core, PET foam core and so on.

Standard Packaging

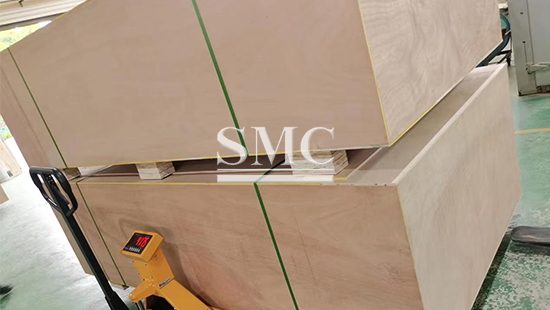

Each fiberglass PU foam sheet is protected with PE film or kraft paper on both surfaces. Edges are reinforced with corner protection to prevent impact damage. Single or multiple sheets are separated by foam cushion inside export carton or wooden crate. Crates are stacked on fumigated wooden pallets and secured with steel straps. Outer package labels mark product grade, dimensions, thickness, color, batch number, and quantity for product traceability.

Shipping

We support FCL and LCL sea freight, air freight and international express delivery according to total cargo weight, panel dimension and destination country. Applicable trade terms contain EXW, FOB, CIF. Other terms may be available upon request. Shipping costs are calculated based on actual gross weight, package outer volume, destination location and selected transport mode.

Lead Time

Samples: 5–10 working days

Standard-spec existing panel orders: 12–20 working days

Custom size, color, or special core material orders: 20–30 working days

Q1: How long does sample preparation take for fiberglass PU foam sheet?

A: If matching standard panel is in stock, samples take 5–10 working days. For custom thickness, color, or special core material requiring dedicated production, sample lead-time will extend to 15–20 working days.

Q2: What information do you need for fiberglass PU foam sheet quotation?

A: Please provide panel thickness, dimensions (length × width), quantity, surface color (RAL or custom), core material (PU/XPS/EPP/PVC), and special requirements such as food-grade or high-density. Specify if CKD aluminum profiles are needed.

Q3: What is the MOQ and production lead-time?

A: MOQ is negotiable for standard panel specification. Standard-spec orders take 12–20 working days; custom or special orders take 20–30 working days.

Q4: Can you provide custom cut-to-size service for fiberglass PU foam sheet?

A: Yes, we can cut panels according to customer drawing or dimensions. Maximum width 2,500 mm and maximum length 16,000 mm. Extra cutting cost may apply for complex shapes or small-batch orders.

Q5: What is the difference between PU and XPS foam core?

A: PU foam provides higher thermal insulation performance (lower thermal conductivity) and better mechanical strength. XPS foam offers lower cost and good moisture resistance but lower temperature stability. PU is recommended for refrigerated and structural applications; XPS for general insulation.

Q6: What secondary processing can fiberglass PU foam sheet support?

A: It supports cutting, drilling, routing, sanding, bonding, and laminating with conventional tools. Excessive heat exposure during cutting shall be avoided to prevent foam core deformation, especially for thick panels.
