Processing Machine

Pay-off Reel Tension Reel Mandrel

    Coil inner diameter: 500-800mm


    Max coil out diameter: 1300-2000mm

Product Detail
Product Description
SMC mandrel are already supplied to the main HR,CR mills in China and all over the world.

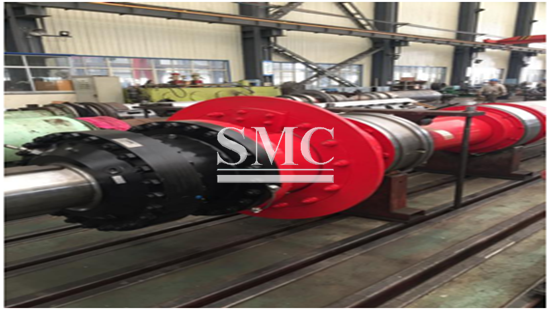

The mandrel is the key part of hot rolling tension  reel for coils, Coil temperature is between 550 to 880 ℃,

the mandrel has mainly two types: Link Wedge type and double wedge type

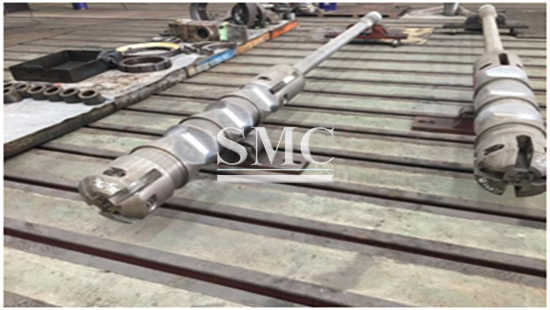

For link wedge-coupling type tension reel, the mandrel is mainly composed of mandrel body, spreader bar, segment,link,wedge

and spreading cylinder. Spreader bar has  multistage slopes and segment is supported by multistage wedge.

1. Coil inner diameter:500-800mm

2. Max coil out diameter:1300-2000mm
3. Max coil width: 2100mm
4. Carrying capacity:5000kg-30000kg
5. Hydraulic expansion
6. Automatically feeding
7. Hydraulic, inner tight
8. Hydraulic power : 3 kw   Drive power:5.5kw Total power:8.5kw  Voltage:380v 3-phase 50hz
9. Size:3.0*1.85*2.2m(L*W*H)
The Car's length is 3m When car open the whole decoiler's length can be 4.5m.


Hot rolled, cold rolled, galvanized steel, cutting, slitting, cold forming machine  production line.
